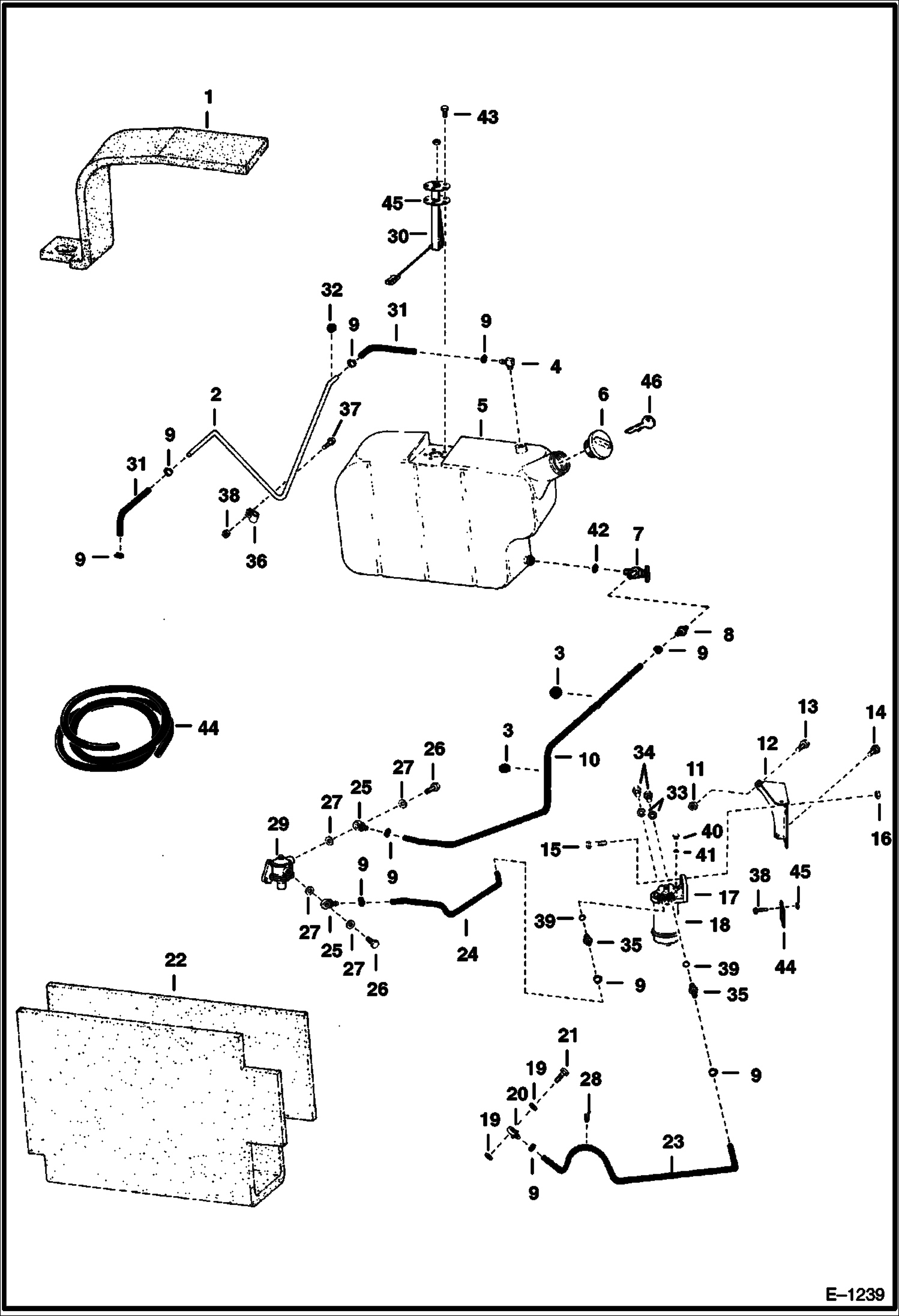

Запчасти Bobcat 700s FUEL SYSTEM (S/N 5006 M 11001 & Above) MAIN FRAME

1

6555909

INSULATION

2

TUBE NLA - Was 6560656 - A

3

GROMMET Was 565073 - A

4

6555920

ELBOW

5

TANK NLA - Was 6560211 - A

6

6661114

CAP. DIESEL Green - Was 6632468 - A

6

CAP NLA - locking - Code GC020 - W/Ref. 46 Was 6654373 - A

6

6662770

CAP locking - Code PK510 - W/Ref.46

7

6512138

VALVE

8

6505813

CONNECTOR

9

42HS04

CLAMP, HOSE Was 6515575 - A

10

HOSE NLA 30'' (762 mm)long - Order Ref. 44

11

61D6

NUT 5

12

BRACKET NLA - Was 6559748 - A

13

17C624

BOLT 5

14

SCREW NLA - Was 4CM01025B - A

15

17C616

BOLT 5

16

81D6

NUT

17

6560348

FITLER, FUEL ASSY See Illustration ENGINE & ATTACHING PARTS/ B18927

18

3885315

FILTER, FUEL 12

19

2FM12155

WASHER

20

6511033

CONNECTOR banjo

21

6666396

SCREW Was 6514745 - A

22

6555908

INSULATION

23

HOSE NLA - 18''(457,2 mm)long - Order Ref.44

24

HOSE NLA - 10'' (254 mm)long

25

6511899

ADAPTER banjo

26

6555921

BOLT

27

6513763

WASHER Was 2FM14180B - A

28

6513471

CLAMP

29

6658087

FUEL PUMP See Illustration ENGINE & ATTACHING PARTS/ B18927 WAS 6513747 - A

30

SENDER NLA - fuel - Was 6560169 - A

31

HOSE NLA - 7'' (177,8 mm)long

32

1318291

GROMMET

33

6515466

WASHER

34

6515682

PLUG

35

6560355

FITTING W/Ref. 39

36

30H15

CLIP

37

17C512

BOLT 5

38

61D5

NUT

39

25K20014

O RING 10

40

6515676

PLUG

41

6515468

WASHER

42

42HS8

CLAMP Was 6514005 - A

43

85G1008

SCREW

44

6577821

HOSE bulk - sold per foot - Was 672221 - A

45

6630972

GASKET

46

6654374

KEY Code GC020

46

6587458

KEY Code PK510
