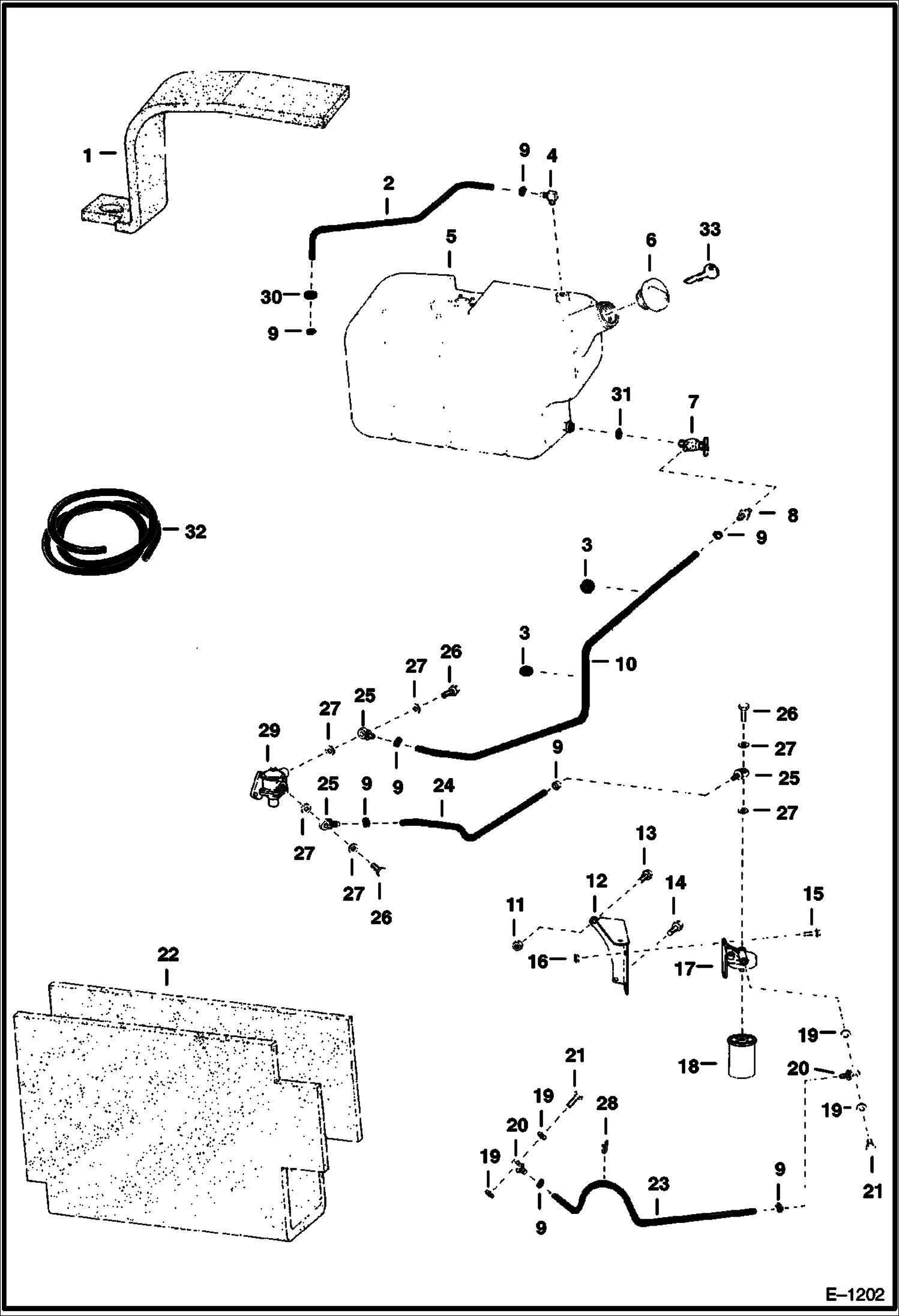

Запчасти Bobcat 700s FUEL SYSTEM (S/N 4999 M 11999 & Below) MAIN FRAME

1

6555909

INSULATION

2

HOSE NLA - 27'' (685,8 mm) long

3

GROMMET Was 565073 - A

4

6555920

ELBOW

5

TANK NLA - Order 6560211- Was 6557743 - A

6

6661114

CAP. DIESEL Green - Was 6632468 - A

6

CAP locking - W/Ref. 33 - Code Gc020 - Was 6654373 - A

6

6662770

CAP locking - W/Ref. 33 Code Pk510

7

6512138

VALVE

8

6505813

CONNECTOR

9

42HS04

CLAMP, HOSE Was 6515575 - A

10

HOSE NLA - 30'' (762 mm) long

11

61D6

NUT 5

12

BRACKET NLA - Was 6559748 - A

13

17C624

BOLT 5

14

SCREW NLA - Was 4CM01025B - A

15

17C618

BOLT

16

81D6

NUT

17

HEAD See BTI226 NLA - filter

18

4121609

FILTER filter

19

2FM12155

WASHER

20

6511033

CONNECTOR banjo

21

6666396

SCREW Was 6514745 - A

22

6555908

INSULATION

23

HOSE 18'' (457,2 mm) long - Order Ref. 32

24

HOSE 10'' (254 mm) long - Order Ref.32

25

6511899

ADAPTER banjo

26

6555921

BOLT

27

6513763

WASHER Was 2FM14180B - A

28

6513471

CLAMP

29

6658087

FUEL PUMP See Illustration ENGINE & ATTACHING PARTS/ B18927 Was 6513747 - A

30

1318291

GROMMET

31

42HS8

CLAMP Was 6514005 - A

32

6577821

HOSE bulk - sold per foot - Was 672221 - B

33

6654374

KEY Code GC020

33

6587458

KEY Code PK510
