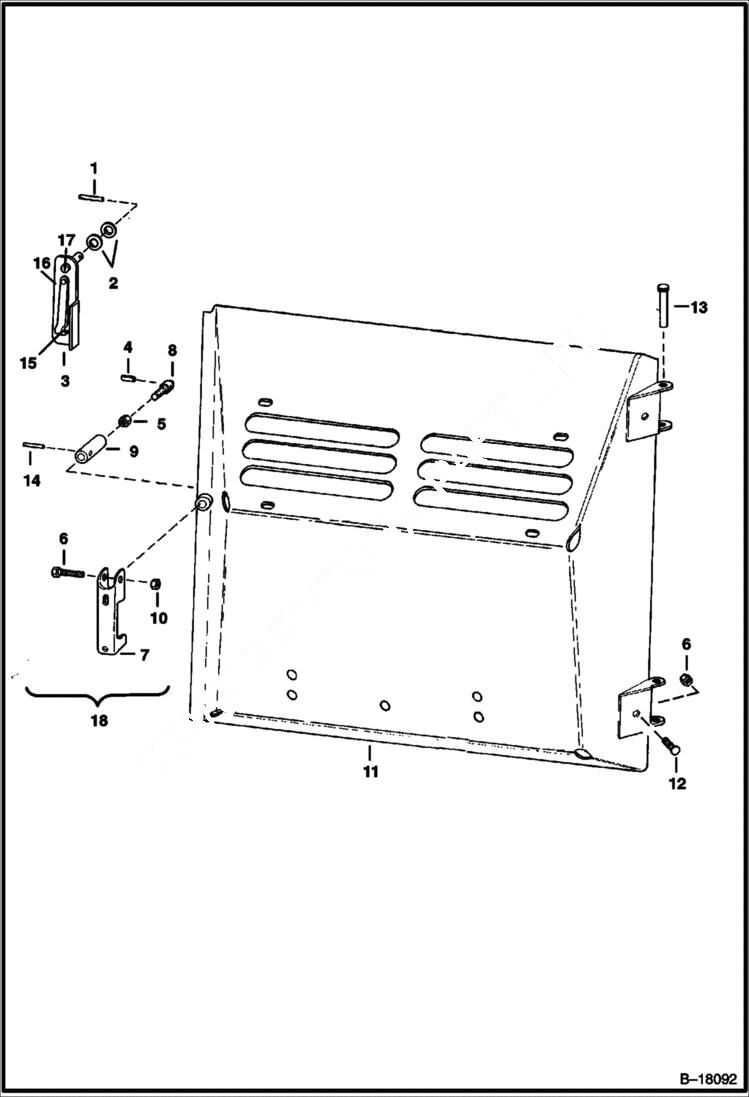

Запчасти Bobcat 700s REAR DOOR (Hinged) MAIN FRAME

1

14J3740

PIN

2

6513440

WASHER

3

HANDLE See BTI191 NLA - W/Ref. 15-17 - Was 6558474 - A

4

6599361

PIN

5

61D8

NUT 5 1/2''

5

6563624

NUT 5/8'' coarse threads

5

6565627

NUT 5/8'' fine threads

6

38C624

BOLT 5 Was 6564599 - A

7

6563681

HANDLE

8

SCREW NLA - 1/2'' - Order 6565627 Nut, 6565628 Nut, 6565629 Screw & 6599361 Pin

8

SCREW NLA - 5/8'' coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

8

6565629

SCREW 5/8'' fine threads

9

NUT NLA - 1/2'' - Order 6565627 Nut, 6565628 Nut, 6565629 Screw & 6599361 Pin

9

NUT NLA - 5/8'' coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

9

6565628

NUT 5/8'' fine threads

10

85D5

NUT 5

11

DOOR See BTI166 NLA - Was 6558463 - A

12

6555419

BOLT carriage

13

6564340

PIN

14

33G404

SET SCRW5

15

LATCH See BTI191 NLA - spring - Was 6560534 - A

16

2H310

RIVET

17

4E8

WASHER

18

6579448

LATCH KIT Ref. 4 - 10 & 14
