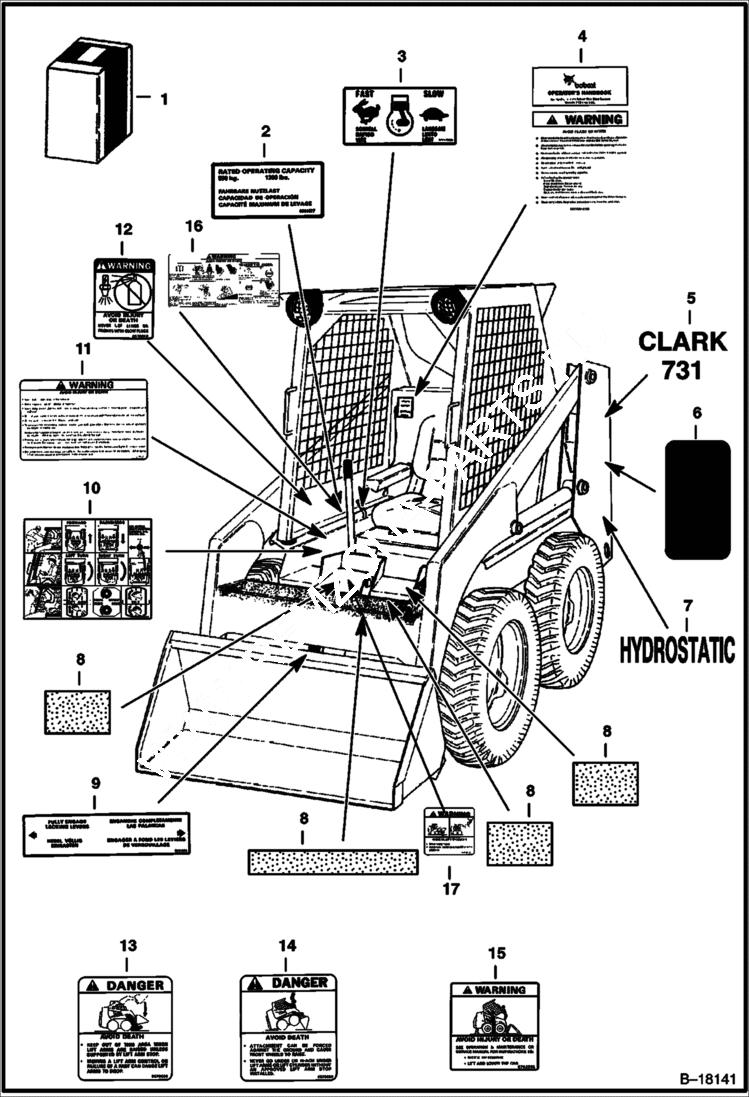

Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

KIT See Illustration DECALS/ B18142 NLA - Decal - Ref. 2 - 12 & on this page see Ref. 2 - 17 - Was 6567922 - A

2

6561377

DECAL capacity

3

6735140

DECAL, THROTTLE Was 6557565 - A

4

6567623

HANDBOOK handbook

4

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve - Was 6558305 - A

4

6558310

SLEEVE wire rope

4

LOOP NLA - scotchmate - Was 6630380 - A

4

HOOK NLA - scotchmate - Was 6630381 - A

5

6560920

DECAL model

6

6560923

DECAL color

7

6557418

DECAL hydrostatic

8

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

8

6577949

SAFETY TREAD 6.8'' x 8.75'' (172,7mm x 222,3mm) - Was 6553977 - A

8

6553978

SAFETY TREAD 35'' x 8'' (889 x 203,2mm)

8

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

9

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

10

6569021

DECAL operating

11

6579511

DECAL warning - Was 6565980 - A

12

6559569

DECAL ether warning

13

6579639

DECAL danger - Was 6702301 - A

14

6579509

DECAL danger - Was 6702302 - A

15

6702255

DECAL warning

16

6702265

DECAL safety - Was 6575854 - A

17

6710358

DECAL Warning
