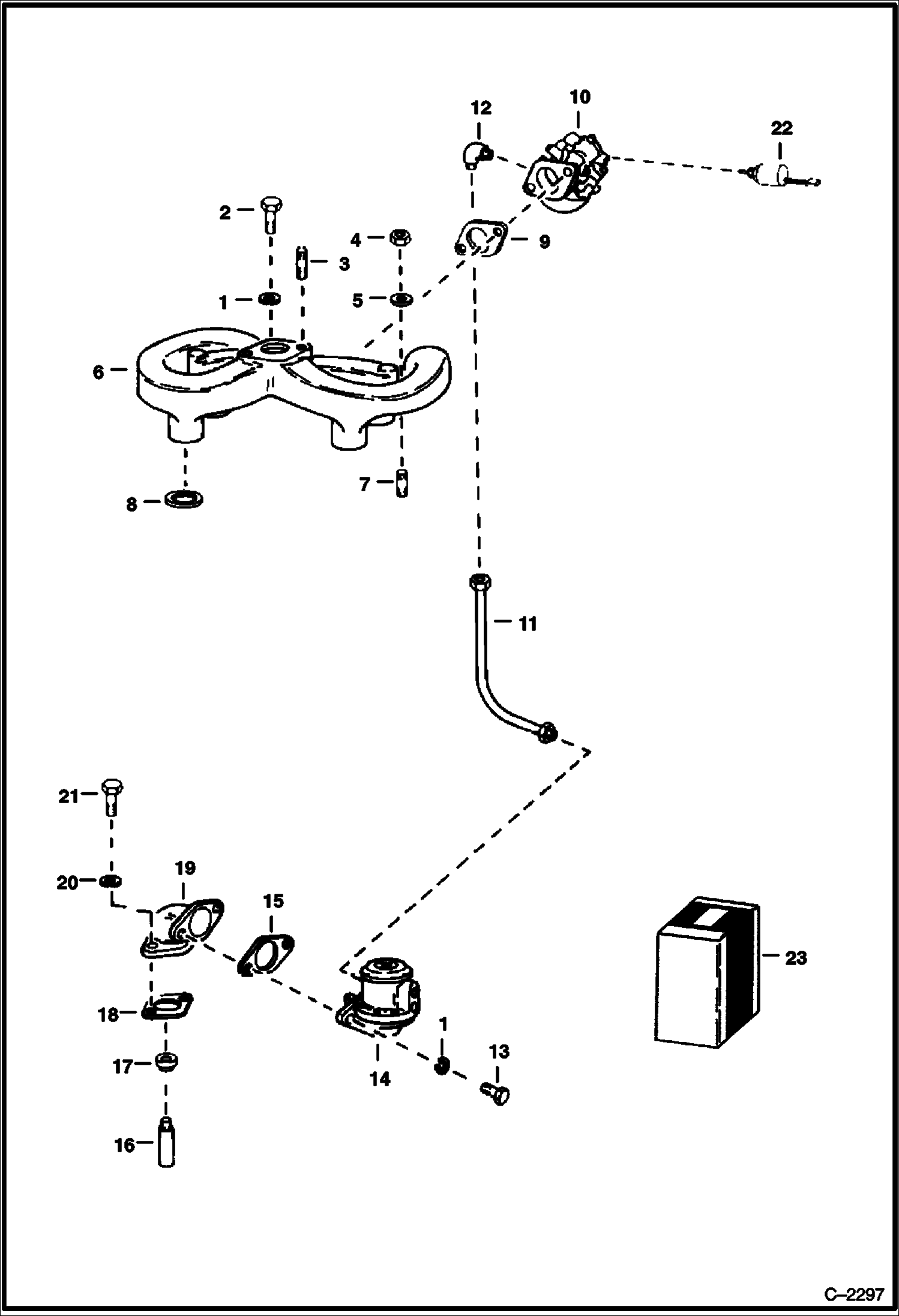

Запчасти Bobcat 700s FUEL PUMP, CARBURETOR & MANIFOLD POWER UNIT

1

4E5

WASHER

2

17C516

BOLT

3

STUD NLA - muffler mounting - Was 6560105 - A

3

6559713

BOLT muffler mounting

4

6515897

NUT

5

25E17

WASHER 5

6

6513160

MANIFOLD exhaust and intake

7

6516407

STUD manifold to cylinder block

8

6516405

GASKET manifold

9

6513188

GASKET carburetor mounting

10

CARBURETOR See BTI156 Use 6514862

10

CARBURETOR NLA - Less Solenoid - Was 6514862 - A

11

6513159

TUBE fuel line

12

42F3

FTG fuel line

13

17C512

BOLT 5

14

6516374

FUEL PUMP

15

6516381

GASKET fuel pump

16

6513157

PLUNGER fuel pump

17

6513158

CAP plunger

18

6516382

GASKET

19

6513156

ADAPTER W/primer

20

4E4

WASHER

21

17C412

BOLT 5

22

6555915

SOLENOID, SHUTOFF FUEL carburetor

23

6513448

KIT See Illustration CARBURETOR/ B14068 GASKET CARBURETOR-WAS 65133449 - D

23

6513449

KIT See Illustration CARBURETOR/ B14068 REPAIR CARBURETOR -WAS 6513448 - A

23

KIT NSS - fuel pump
