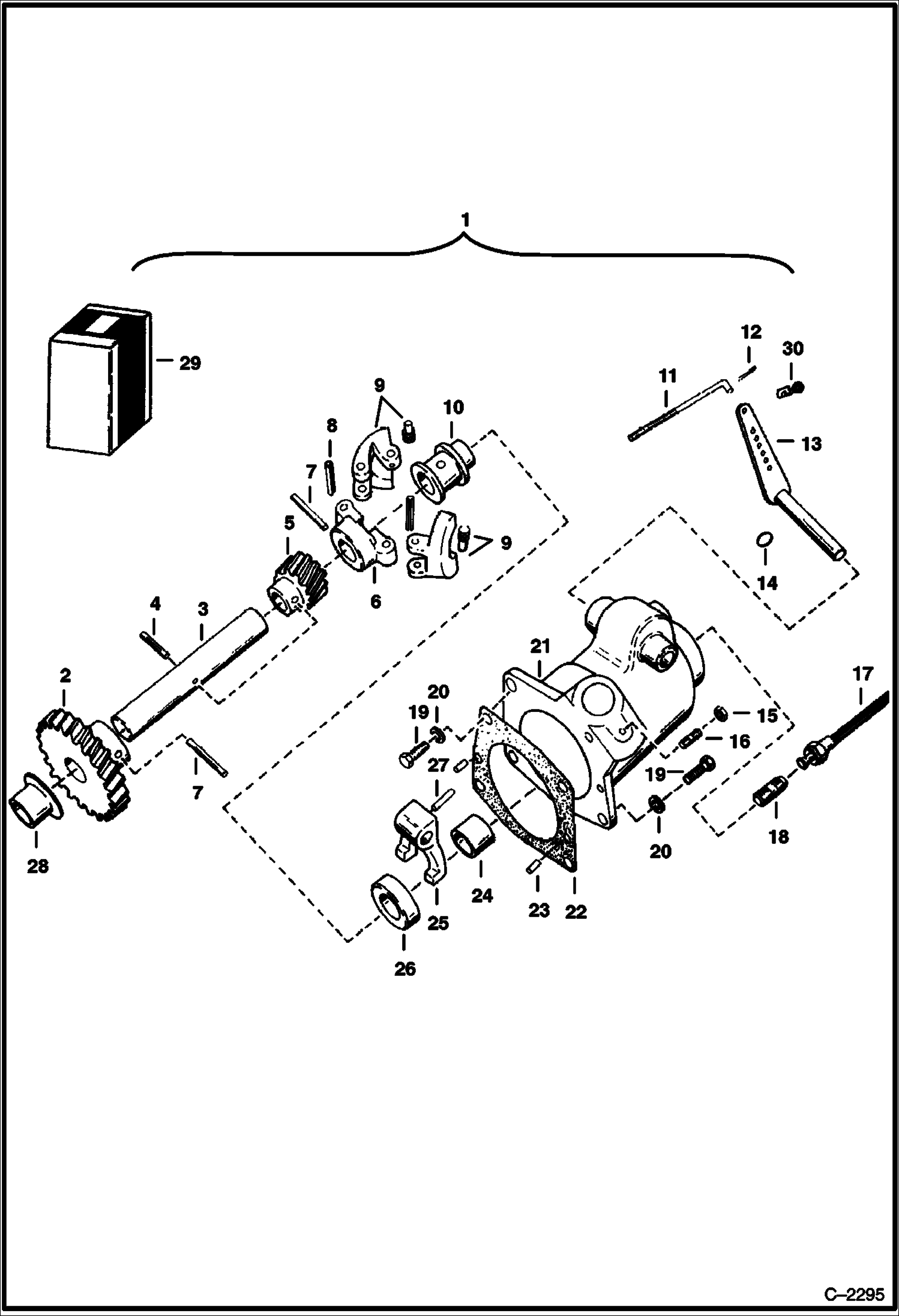

Запчасти Bobcat 700s GOVERNOR CONTROL ASSEMBLY POWER UNIT

1

6513165

GOVERNOR

2

6513396

GEAR

3

SHAFT NSS

4

1306397

PIN ROLL

5

6516570

SHAFT ASSY. Was 6516566 - A

6

HUB NSS

7

646102

PIN

8

659648

PIN Was 654724 - A

9

FLYWEIGHT NSS - assy.

10

SLEEVE NSS - thrust

11

6513191

ROD 6'' (152,4 mm) long x .12'' (3,048 mm) diameter

11

6513689

ROD 7.5'' (190,5 mm) long x .12'' (3,048 mm) diameter

12

6516613

PIN

13

6513402

LEVER

13

6513691

LEVER

14

O-RING NLA - Was 6513407 - A

15

62D5

NUT

16

STUD NLA - Was 6510870 - A

17

6513394

TUBE

18

6515221

ADAPTER

19

17C516

BOLT

20

4E5

WASHER

21

HOUSING NSS

22

6516617

GASKET

23

6513408

PIN

24

6513401

BUSHING

25

YOKE NSS

26

6513420

BEARING

27

1306397

PIN ROLL yoke mounting

28

6513173

BUSHING

29

6513395

DRIVE SHAFT assy. - Ref. 2 - 10 & 26

30

6631697

CLIP
