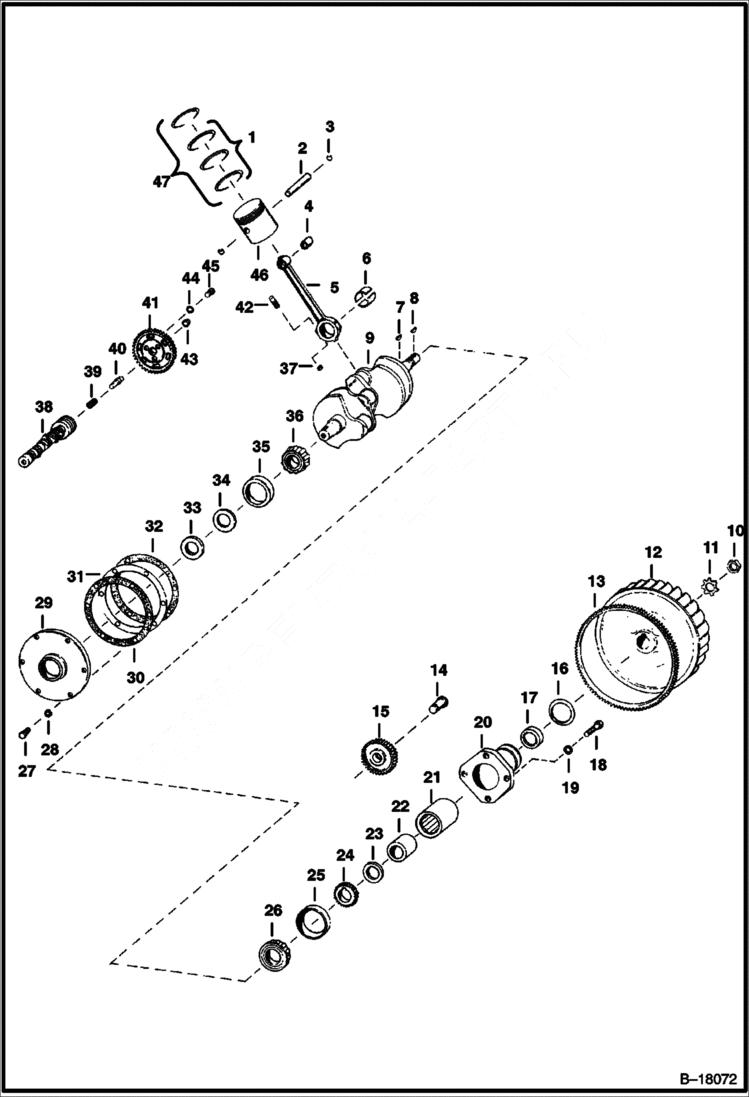

Запчасти Bobcat 700s INTERNAL PARTS POWER UNIT

1

RING SET See BTI183 NLA - Std. (3 Ring) Complete Set - Was 6512149 - A

1

6512150

RINGS See BTI183 .010 (3 Ring) - Complete Set

1

6512151

RINGS See BTI183 .020 (3 Ring) - Complete Set

1

RINGS See BTI183 NLA - .03'' (0.76mm) - 3 ring - complete set - Was 6512152

2

6516476

PIN piston (STD.)

2

6517473

PIN piston (.005)

2

6517474

PIN piston (.010)

3

6516463

RETAINER

4

6516462

BUSHING

5

6517472

ROD connection - W/Ref. 4, 37 & 43

6

6517475

BEARING STD. (One Bearing)

6

BEARING NLA - .001 (One Bearing) - Was 6517476 - A

6

BEARING NLA - .002 (One Bearing) - Was 6517477 - A

6

6517478

BEARING .010 (One Bearing)

6

6517479

BEARING .020 (One Bearing)

7

6J404

KEY, WOODRUFF crankshaft

8

6J1011

KEY flywheel

9

6513182

CRANKSHAFT

10

6516449

NUT

11

6516448

WASHER

12

FLYWHEEL NLA - W/Ref..13 - includes magnets - Was 6513183 - A

13

6516682

RING GEAR

14

STUD NLA - idler gear - Was 6510869 - A

15

IDLER GEAR NLA - Was 6512388 - A

16

6512384

O-RING

17

6516526

SEAL oil

18

6512383

BOLT

19

6E5

WASHER

20

6512336

HOUSING bearing - W/Ref. 17 & 21

21

6512382

BEARING

22

6512386

RACE

23

6512385

SPACER

24

6512334

GEAR

25

RACE NSS

26

6512381

BEARING W/Ref. 25

27

17C620

BOLT

28

4E6

WASHER

29

6513184

PLATE

30

6516458

GASKET 0.003

31

6516457

SHIM 0.013

32

6516456

GASKET 0.006

33

6516455

SEAL

34

6516454

RETAINER

34

PISTIN W/Pin See BTI183 NLA W/ - REF. 3 - - Std. (3 Ring) - One Piston - Was 6512145 - A

35

RACE NSS - W/Ref. 35

36

872144

BEARING main

37

86D5

NUT

38

6516517

CAMSHAFT

39

6516518

SPRING thrust plunger

40

6516519

PLUNGER thrust

41

6512387

GEAR camshaft

42

6516461

BOLT rod

43

6516522

BUTTON camshaft thrust plunger - Was 6512332 - A

44

6516521

WASHER

45

17C516

BOLT

46

PISTON W/Pin See BTI183 NLA - Std. (3 Ring) - W/Ref. 2 & 3 - One Piston - Was 6512145 - A

46

6512146

PISTON - W/Pin See BTI183 .010 (3 Ring) - W/Ref. 2 & 3 - One Piston

46

PISTON - W/Pin See BTI183 NLA - .020 (3 Ring) - W/ref. 2 & 3 - Was 6512147 - A

46

PISTON - W/Pin See BTI183 NLA - .030 (3 Ring) - W/Ref. 2 & 3 - Was 6512148 - A

46

6630708

PISTON - W/Pin See BTI218 Std. - 4 ring - W/Ref. 2 & 3 - Was 6516472 - A

46

6630709

PISTON - W/Pin See BTI218 .010 (4 Ring) - W/Ref. 2 & 3 - Was 6516473 - A

46

6630710

PISTON - W/Pin See BTI218 .020 (4 ring) - W/Ref. 2 & 3 - Was 6516474 - A

46

PISTIN - W/Pin See BTI218 NLA - .030 (4 Ring) - W/Ref. 2 & 3 - Was 6516475 - A

46

6630708

PISTON - W/Pin See BTI218 Std. (4 Ring) - W/Ref. 2 & 3 - One Piston

46

6630709

PISTON - W/Pin See BTI218 .010 (4 Ring) - W/Ref. 2 & 3

46

6630710

PISTON - W/Pin See BTI218 .020 (4 Ring) - W/Ref. 2 & 3

46

6630711

PISTON - W/Pin See BTI218 .030 (4 Ring) - W/Ref. 2 & 3

46

PISTON W/Pin See BTI218 NLA - .040 (4 Ring) - W/Ref. 2 & 3 - Was 6656405 - A

47

6516464

RINGS See BTI218 Std. (4 Ring)

47

RINGS See BTI218 NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A

47

6516466

RINGS See BTI218 .020 (4 Ring) Complete Set

47

6516467

RINGS See BTI218 .030 (4 Ring) Complete Set

47

6630712

SET RINGS See BTI218 Std. (4 Ring) Two Ring Set

47

6630713

SET RINGS See BTI218 .010 (4 Ring) Two Ring Set

47

6630714

SET RINGS See BTI218 .020 (4 Ring) Two Ring Set

47

6630715

SET RINGS See BTI218 .030 (4 Ring) Two Ring Set

47

RING SET See BTI218 NLA - .040 (4 Ring) Complete Set) - Was 6656406 - A
