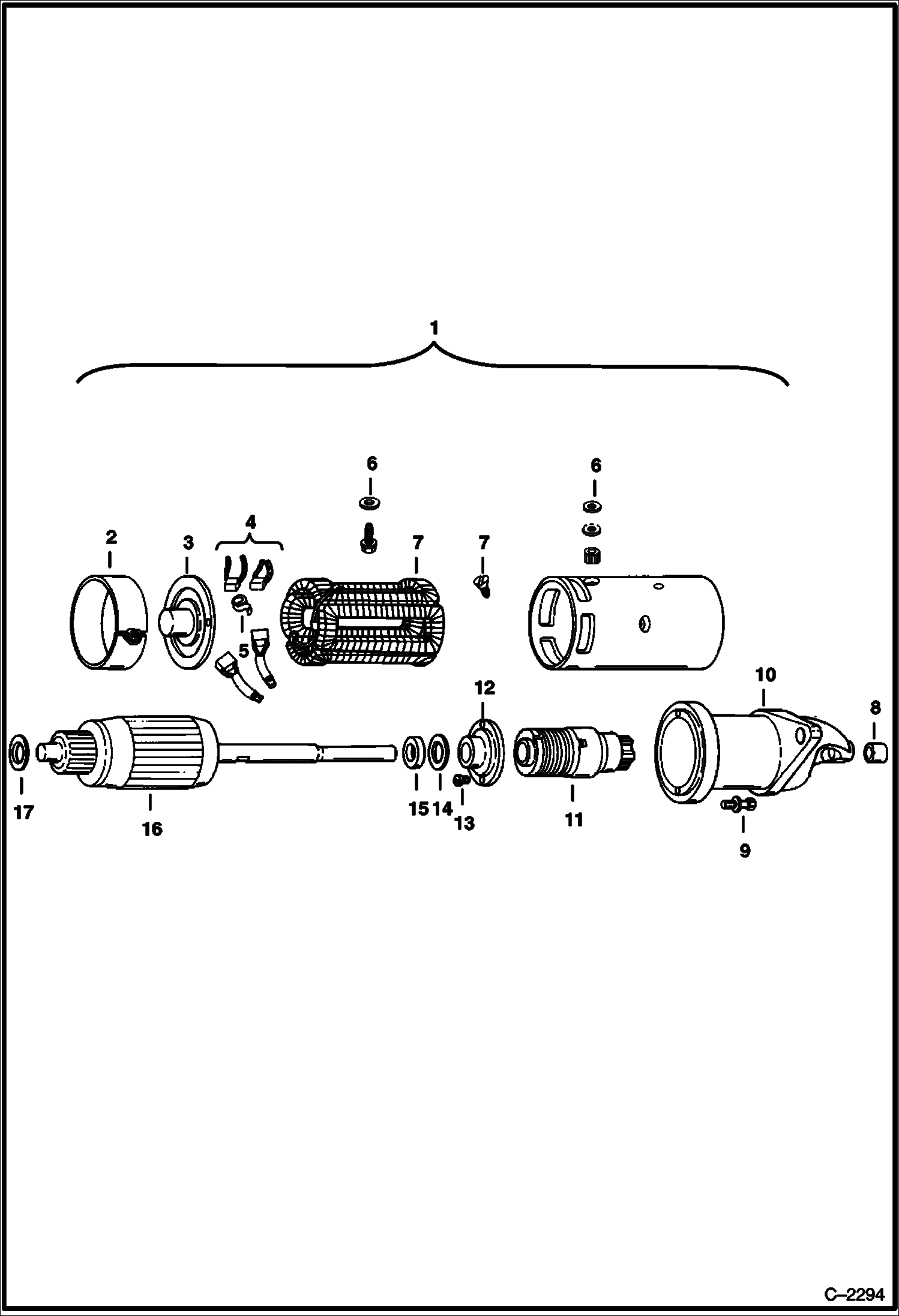

Запчасти Bobcat 700s STARTER (Prestolite MBG-4141) ELECTRICAL SYSTEM

1

STARTER See Illustration STARTER/ B11257 NLA - Order 6632567REM starter - Was 6513373 - A

1

6632567REM

STARTER

2

BAND NLA - Was 853863B - A

3

END NLA - Was 6513377 - A

4

6517650

BRUSHES Was 6513375 - A

5

SPRING NLA - Was 893682B - A

6

TERMINAL NLA - stud package - Was 6517649 - A

7

6513376

COIL end

8

BUSHING NLA - Was 6513380 - A

9

BOLT NLA - Was 853918B - A

10

HOUSING NLA - Was 6513379 - A

11

DRIVE NLA - Was 6513381 - A

12

6513378

PLATE

13

6513386

SCREW

14

GASKET NLA - Was 6513385 - A

15

6513384

SEAL

16

ARMATURE NLA - Was 6513374 - A

17

6513387

WASHER
