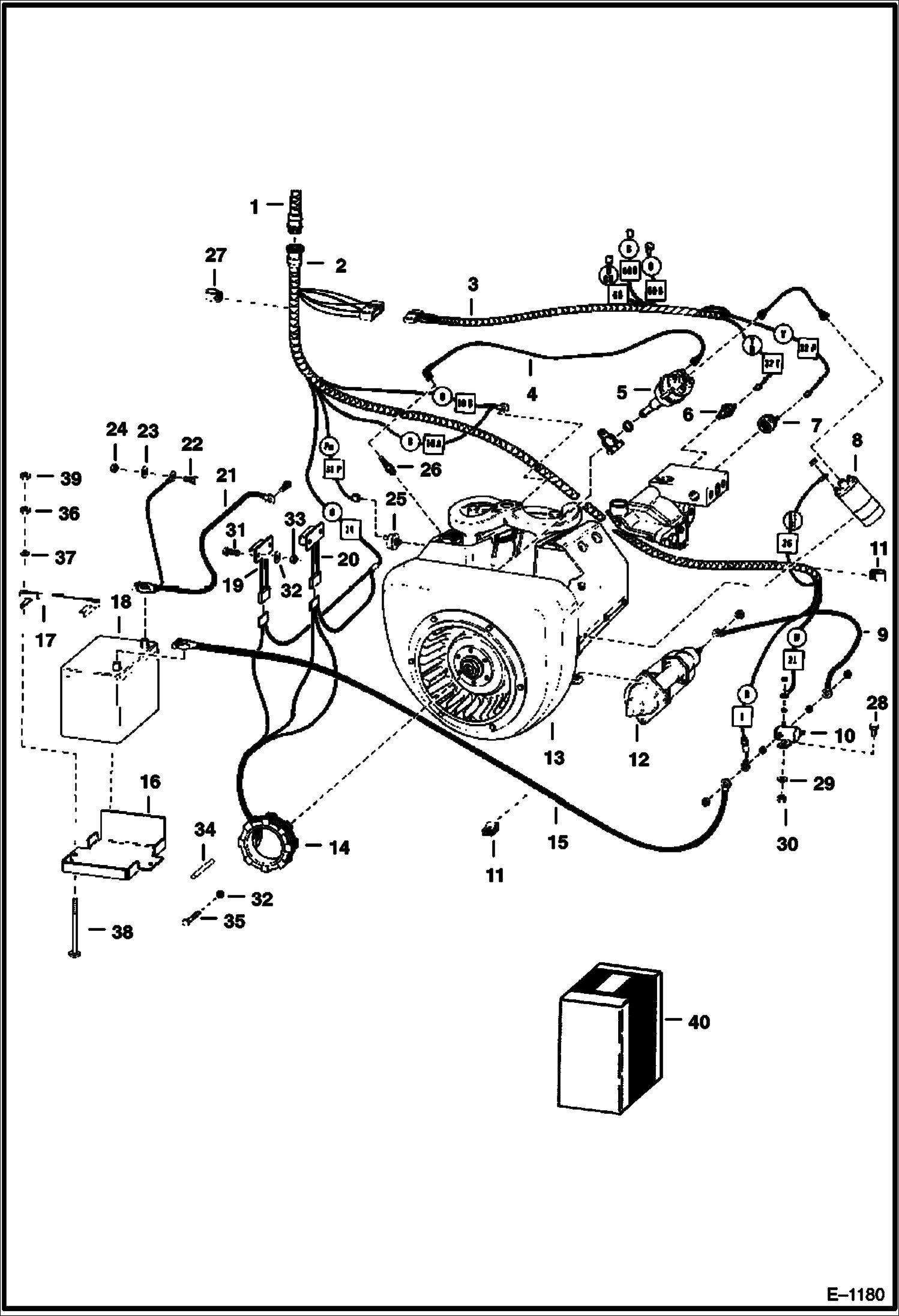

Запчасти Bobcat 700s ENGINE ELECTRICAL (S/N 11999 & Below) ELECTRICAL SYSTEM

1

HARNESS See Illustration CAB ELECTRICAL/ E1188 CAB

2

6558862

HARNESS engine

3

6557447

HARNESS

4

HARNESS See Illustration IGNITION SYSTEM/ C2296 NLA - WAS 6513162 - A

5

DISTRIBUTOR See Illustration DISTRIBUTOR/ B1207

6

6598384

SWITCH hyd. temp.

7

6557449

SWITCH hyd. pressure

8

COIL NLA - Was 6513415 - A

9

6555845

CABLE

10

6659319

SOLENOID Was 6632186 - A

11

30H22

CLIP

12

STARTER See Illustration STARTER/ B11257 See Illustration STARTER/ C2294

13

ENGINE See Illustration ENGINE/ B18067

14

6513405

STATOR

15

6553748

CABLE

16

6558826

MOUNT battery

17

7024123

CLAMP Was 6563462 - A

18

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

18

6630154

CAP gang - Danger

18

6630155

CAP gang - Poison

18

CAP NLA - tilt-tite - Was 6514898 - A

19

6513406

MODULE rectifier

20

6516690

REGULATOR regulator

21

6557451

CABLE

22

17C512

BOLT 5

23

6E5

WASHER

24

61D5

NUT

25

6557924

SWITCH oil pressure

26

890272

SPARK PLUG-4 Was 6516429 - A

27

30H35

CLAMP 10

28

17C412

BOLT 5

29

6E4

WASHER 10

30

61D4

NUT 5

31

BOLT NLA - Was 46G001008B - A

32

12E10

WASHER

33

14D10

NUT

34

659648

PIN Was 654724 - A

35

46G1016

SCREW

36

59D5

NUT 5

37

25E15

WASHER

38

6569623

BOLT

39

46D5

NUT

40

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A
