Запчасти Bobcat 700s HYDROSTATIC MOTOR HYDROSTATIC SYSTEM

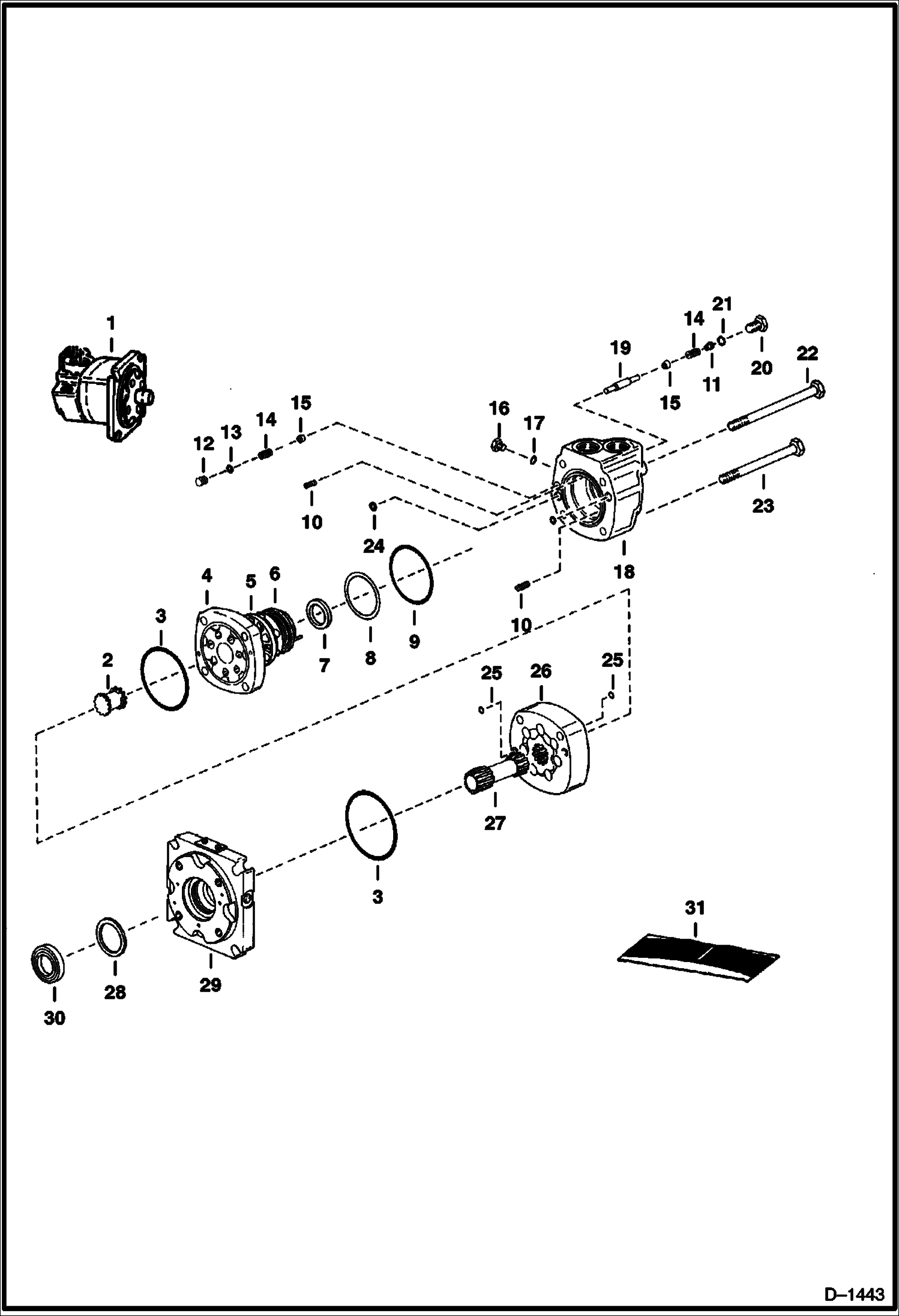

Схема запчастей Bobcat 700s - HYDROSTATIC MOTOR HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6567421

MOTOR KIT New - W/Ref. 30 & 25K030508B O-Ring

1

6567752

MOTOR remanufactured

2

6513506

DRIVE

3

SEAL NSS

4

6513505

PLATE valve

5

6513507

VALVE

6

6630042

PLATE balancing

7

SEAL NSS - Inner

8

SEAL NSS - Outer

9

SEAL NSS

10

6190121

SPRING

11

6561218

SHUTTLE

12

PLUG NLA - Was 6513534 - A

13

O-RING NSS

14

6513533

SPRING

15

6513532

POPPET

16

47K2

PLUG W/Ref. 17

17

79K3

O RING 10

18

6599605

HOUSING valve

19

6513510

PISTON

20

47K5

PLUG W/Ref. 21

21

79K6

O RING 10

22

18C788

BOLT

23

18C782

BOLT

24

O-RING NSS

25

O-RING NSS

26

6513514

GEROLER sub-assembly

27

6513513

DRIVE

28

58K137

O RING 10 Was 58K000134B - B

29

6513512

FLANGE

30

6513681

BEARING bronze

31

6514895

SEAL KIT Ref. 3, 7 - 9, 13, 24 & 25

Выбрано товаров: 32
