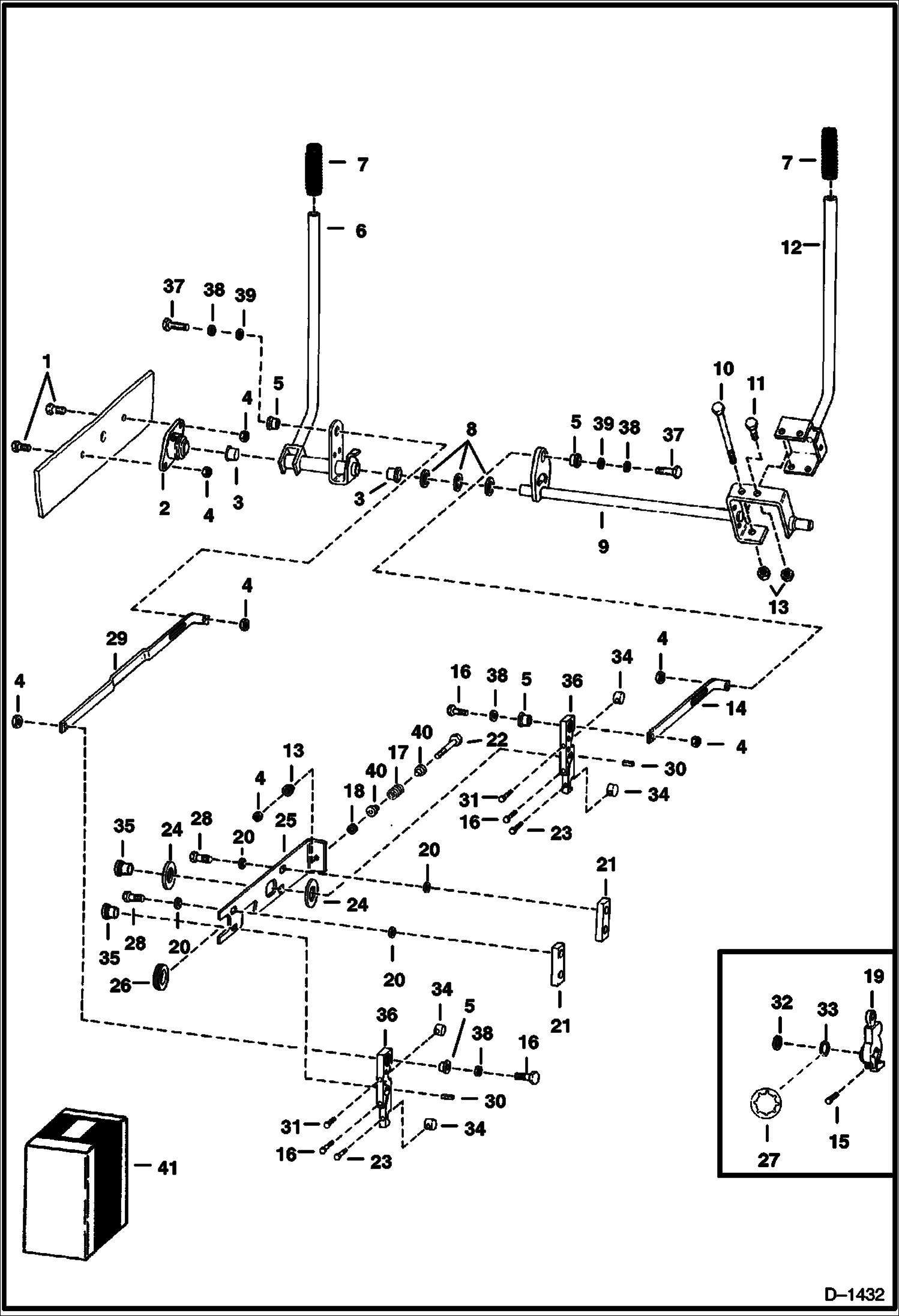

Запчасти Bobcat 700s HAND CONTROLS HYDROSTATIC SYSTEM

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6558460

HANDLE steering - L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT Was 6558461 - A

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE R.H.

13

61D6

NUT 5

14

6558431

BAR

15

17C522

BOLT Use W/Ref. 19

16

17C628

BOLT

17

SPRING NLA - .44'' I.D. -Order 6572026 Spring & (2) 6571991 Guides - Was 6505082 - A

17

6572026

SPRING .75'' I.D.

18

6579990

WASHER Was 6558429 - A

19

LEVER NLA - Order Ref. 41

20

6557831

WASHER

21

6562281

BAR

22

17C692

BOLTS

23

17C614

BOLT

24

6558680

WASHER

25

6562767

BRACKET

26

6558436

GUIDE

27

RETAINER NLA - Tinnerman - Order Ref. 41 - Was 6513388 - A

28

8C616

SCREW

29

6558430

BAR

30

5J806

KEY

31

17C624

BOLT 5

32

659764

RING Use W/Ref. 19

33

WASHER NLA - Use W/Ref. 19 - Was 6560894 - A

34

6562062

CAM lever

35

6562063

HUB lever

36

6565751

LEVER, PINTLE

37

17C626

BOLT

38

6563914

WASHER

39

6563965

WASHER

40

6571991

GUIDE Use only with 6572026 Spring

41

6564056

LEVER KIT Ref. 5, 16, 23, 31, 34 - 36 & 38
