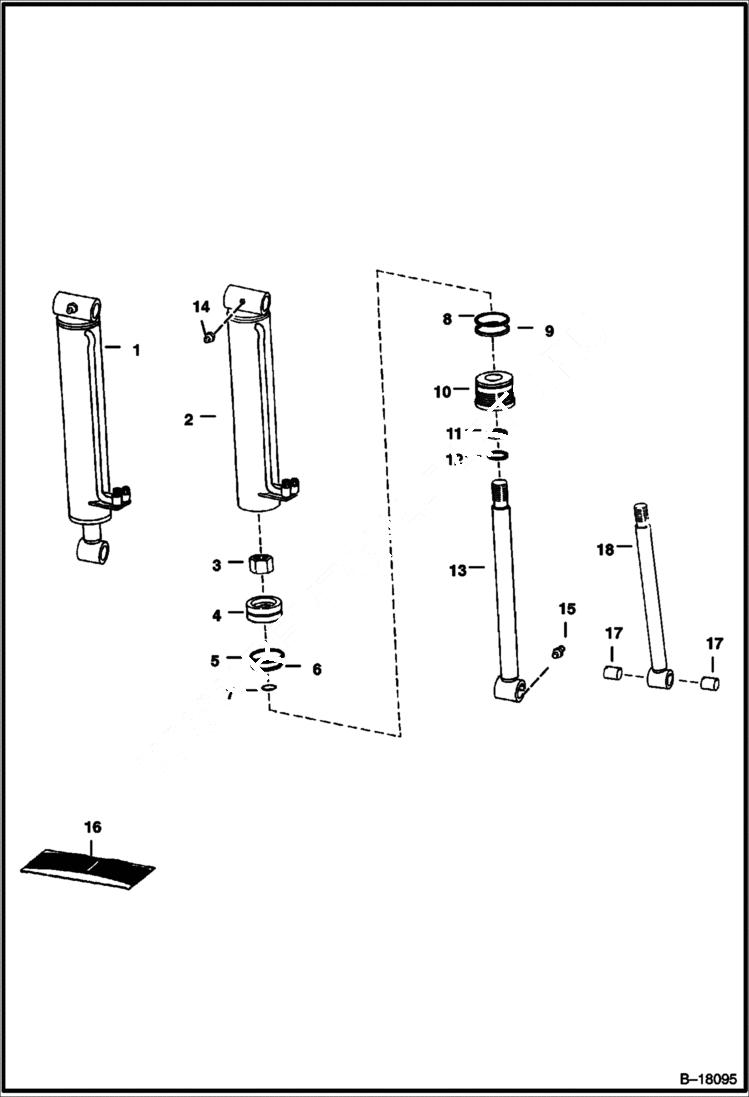

Запчасти Bobcat 700s TILT CYLINDER (S/N 12003 to 12234) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ B18047 See BTI167 NLA - ORDER 6539810 CYLINDER

2

6592040

CASE

3

6810539

NUT Was 86D000018B - A

4

6558778

PISTON

5

SEAL NSS

6

O-RING NSS

7

O-RING NSS

8

O-RING NSS

9

WASHER NSS - back-up

10

6558774

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

ROD See BTI167 NLA - W/O Bushing - Order Ref. 19 - Was 6559586 - A

14

11H25

FITTING10

15

10H25

FITTING, GREASE 5

16

7135551

KIT, SEAL Ref. 5-9, 11 & 12 - Was 6804605 - A

16

SEAL KIT NLA - tool - Order MEL 1010 - Was 6562764 - A

17

6589665

BUSHING Use With Ref. 19

18

6589783

ROD With Bushings
