Запчасти Bobcat 700s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

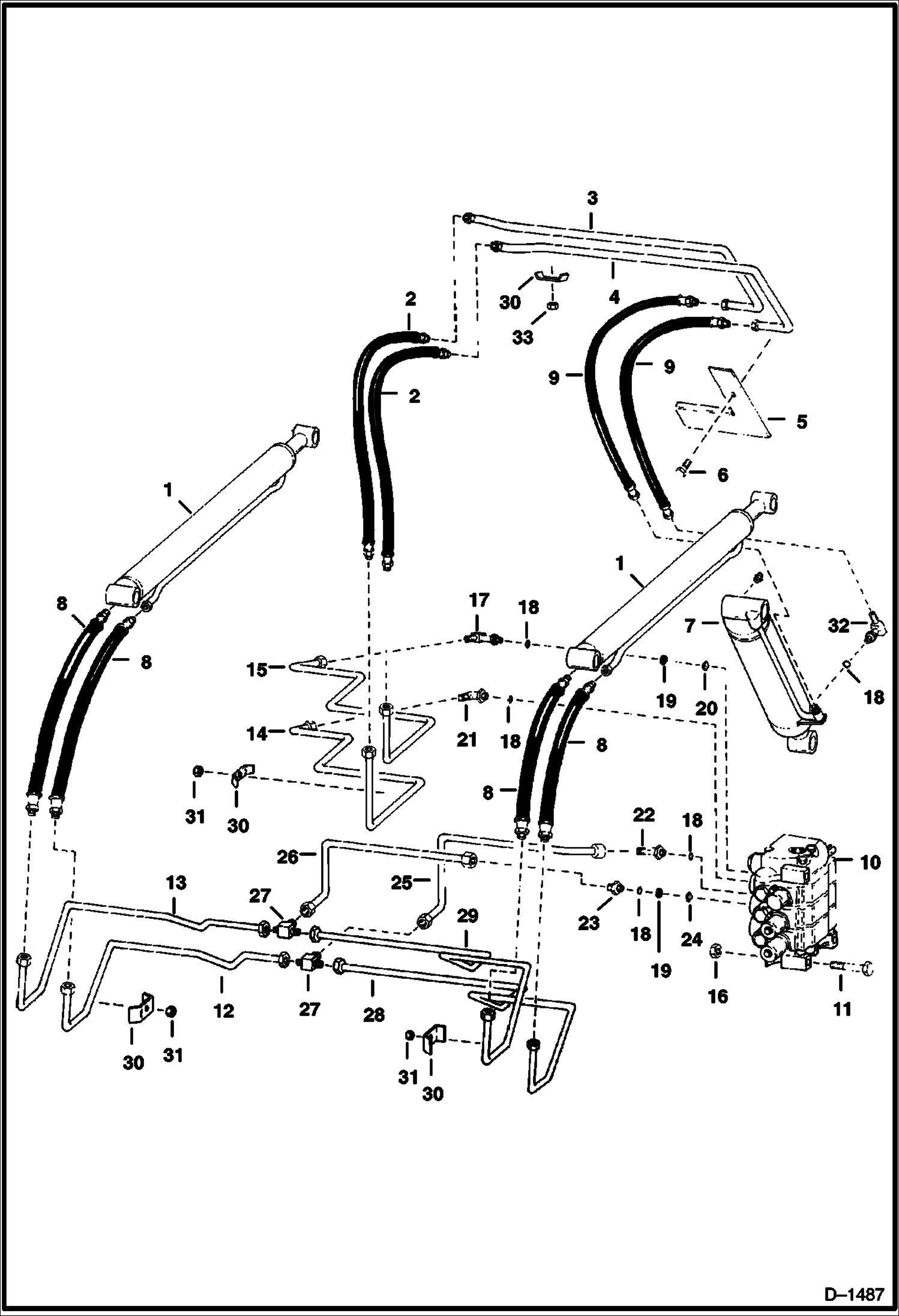

Схема запчастей Bobcat 700s - HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6559199

HOSE

3

6557780

TUBE

4

6557781

TUBE

5

6553422

COVER

6

84G3724

BOLT Was 84G003720B - B

7

CYLINDER See Illustration TILT CYLINDER/ B18044 TILT

8

6559202

HOSE

9

6559200

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18049 See Illustration HYDRAULIC CONTROL VALVE/ C2421

11

17C540

BOLT

12

6561876

TUBE

13

6561875

TUBE

14

6558562

TUBE

15

6558561

TUBE

16

61D5

NUT

17

ELBOW NLA - Use W/Spring - Order Ref. 17, 19 and 20 - A

17

6519195

ELBOW

18

79K10

O RING 10

19

SLEEVE NLA

19

6598690

SPRING

20

ORIFICE NLA - 0.086 - Was 6598843 - A

21

17K7

ELBOW W/Ref. 18

22

18K7

FITTING W/Ref. 18

23

ADAPTER NLA - Use W/Spring - Also Order Ref. 19, 23, and 24 - A

23

15K7

FITTING W/ Ref. 18

24

6598689

ORIFICE 0.125

25

6558572

TUBE

26

6558573

TUBE

27

6560136

TEE

28

6561877

TUBE

29

6561878

TUBE

30

6502203

CLAMP

31

85D6

NUT, 5

32

6519195

ELBOW W/Ref. 18

33

59D6

NUT
