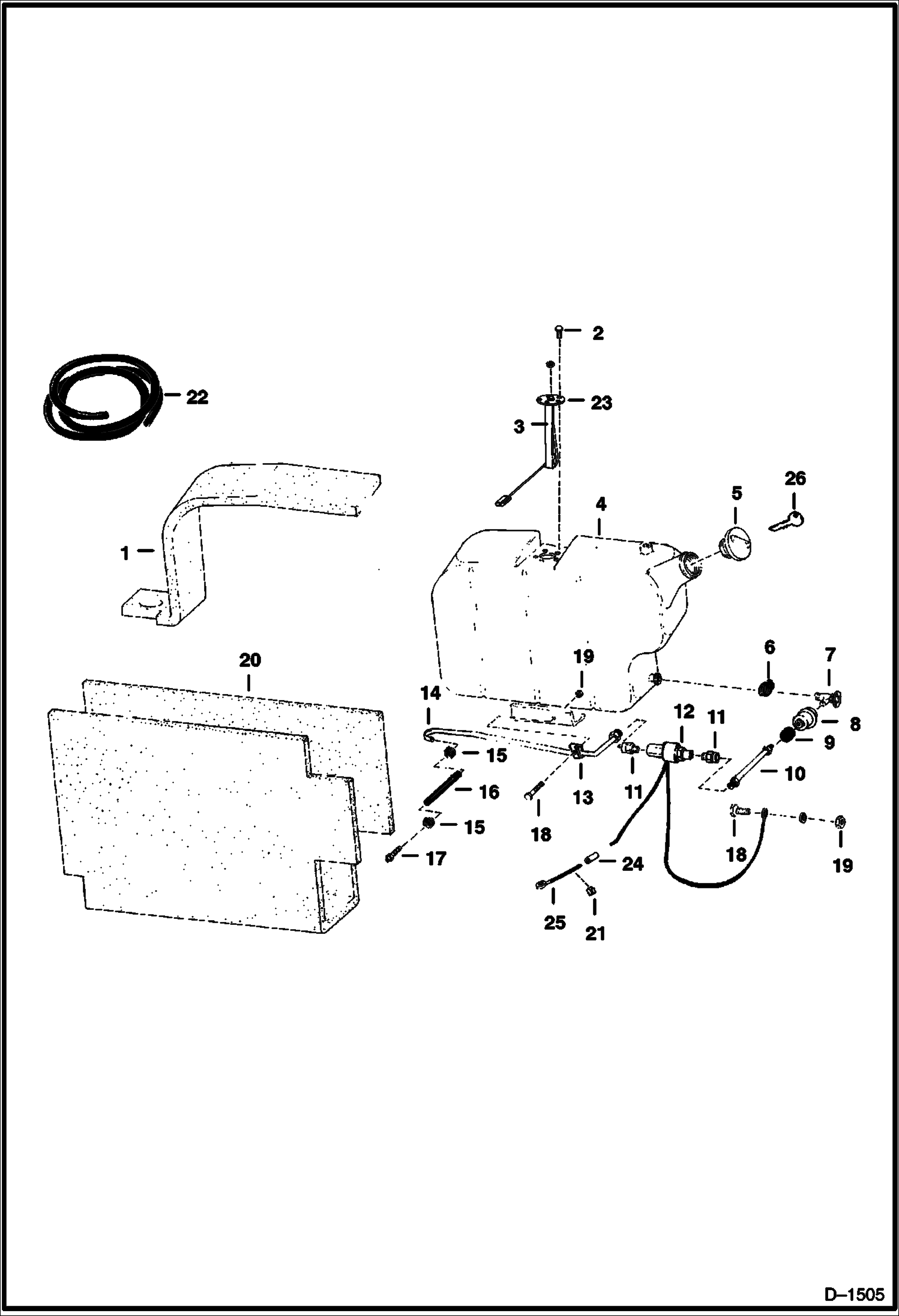

Запчасти Bobcat 700s FUEL SYSTEM (S/N 12001 & Above) MAIN FRAME

1

6555909

INSULATION

2

85G1008

SCREW

3

SENDER NLA - fuel - Was 6560169 - A

4

TANK NLA - Was 6560211 - A

5

6661114

CAP. DIESEL green - Was 6632468 - A

5

CAP NLA - locking - W/Ref. 26 - Code GC020 - Was 6654373 - A

5

6662770

CAP locking - W/Key Code PK510

6

42HS8

CLAMP Was 6514005 - A

7

6512138

VALVE

8

6512106

ELEMENT

9

GROMMET Was 565073 - A

10

TUBE NLA - Was 6560634 - A

11

CONNECTOR NLA - Was 59F000004B - A

12

7024822

SOLENOID, FUEL Was 6559117

13

30H19

CLIP

14

6560631

TUBE

15

42HS04

CLAMP, HOSE Was 6515575 - A

16

HOSE NLA - 3'' (76,2 mm) long - W/Ref. 22

17

6505813

CONNECTOR

18

17C512

BOLT 5

19

91D5

NUT 5 Was 81D000005B - A

20

6555908

INSULATION

21

6514850

CLIP

22

6577821

HOSE bulk - sold per foot - Was 672221 - A

23

6630972

GASKET

24

614142

SLEEVE 10

25

30R104

TERMINAL

26

6654374

KEY Code GC020

26

6587458

KEY Code PK510
