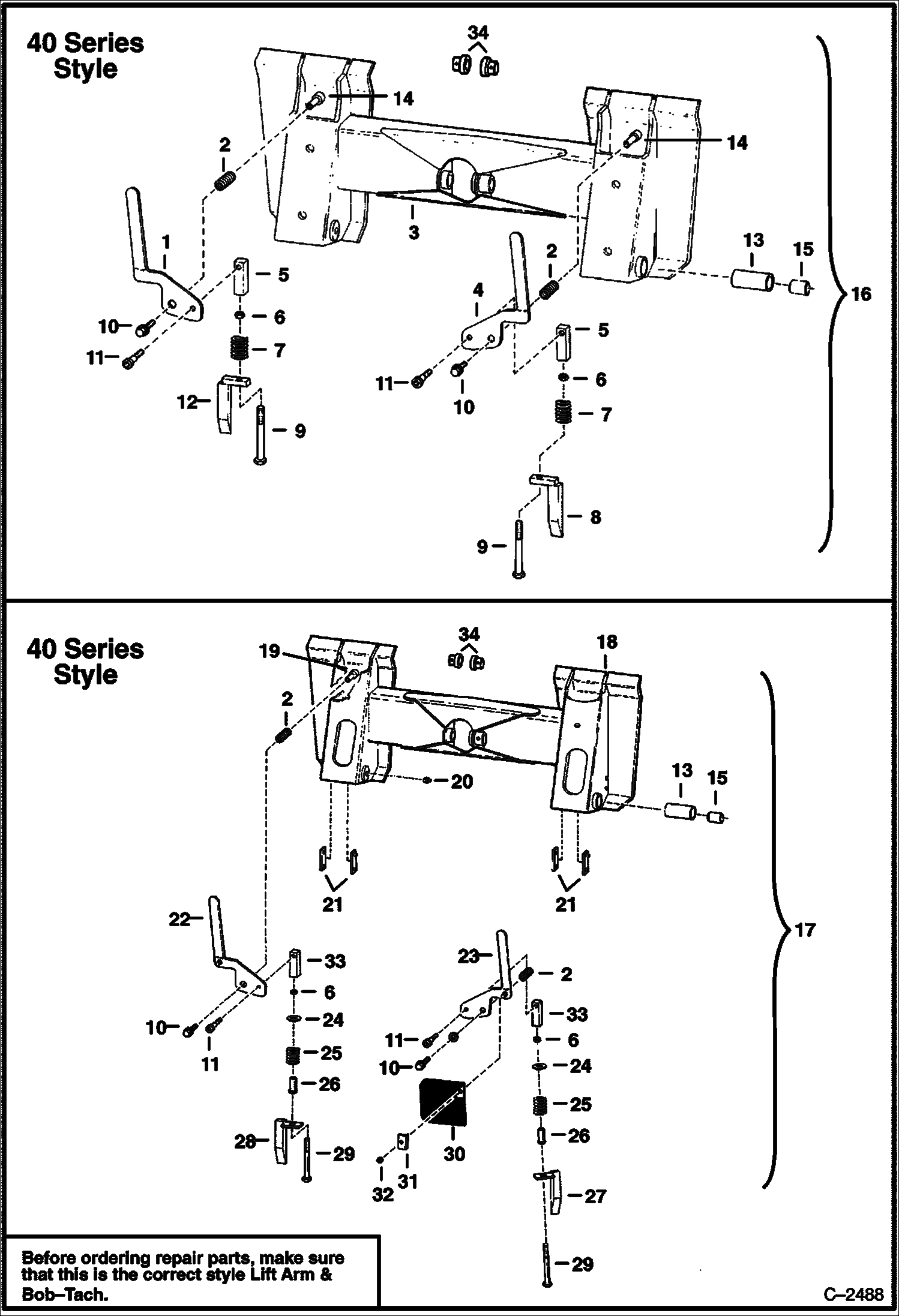

Запчасти Bobcat 700s BOB-TACH (S/N 12003 & Above) MAIN FRAME

1

6563106

LEVER L.H. - Was 6579698 - A

2

6704453

SPRING Was 6503387 - A

3

FRAME NLA - Order Ref. 17

4

6563107

LEVER RH - 6579697 - A

5

6565186

BLOCK, BOB-TACH WEDGE

6

7D8

NUT 5

7

6548407

SPRING

8

6548913

WEDGE R.H.

9

17C896

BOLT

10

35C608

BOLT Was 6557232 - A

11

38C810

BOLT Was 661846B - A

12

6548912

WEDGE L.H.

13

6558424

BUSHING W/Ref. 15

13

6565326

BUSHING W/Ref. 15

14

6553843

STUD

15

6554294

BUSHING

15

6562067

BUSHING

16

BOB-TACH See Illustration BOB-TACH/ PE1527 See Illustration BOB-TACH/ C2210 NLA - complete - Order 6561383 Decal and ORDER 6705172 BOB-TACH KIT

17

BOB-TACH NLA - complete - Order 6705172 Bob-Tach Kit - Also Order 6561383 Decal - Was SALES - A

18

FRAME NLA - Order Ref. 17

19

6562013

STUD

20

743332

FITTING, GREASE 5

21

6562026

INSERT

22

6563106

LEVER

23

6563107

LEVER

24

1303141

SPACER

25

6578253

SPRING, COMPRESSION Was 6562018 - A

26

6562019

GUIDE

27

6565189

WEDGE RH

28

6565190

WEDGE LH

29

17C880

BOLT 1/2'' x 5''

29

17C844

BOLT 1/2'' x 5-1/4'' -Use with 6565186 Block

30

6563103

COVER rubber

31

6563108

ANGLE

32

85D6

NUT, 5

33

BLOCK NLA - Order 6565186 Block & 17C000884B Bolt

33

6565186

BLOCK, BOB-TACH WEDGE Use only with 17C000884B Bolt

34

6562642

BUSHING, WELD-ON
