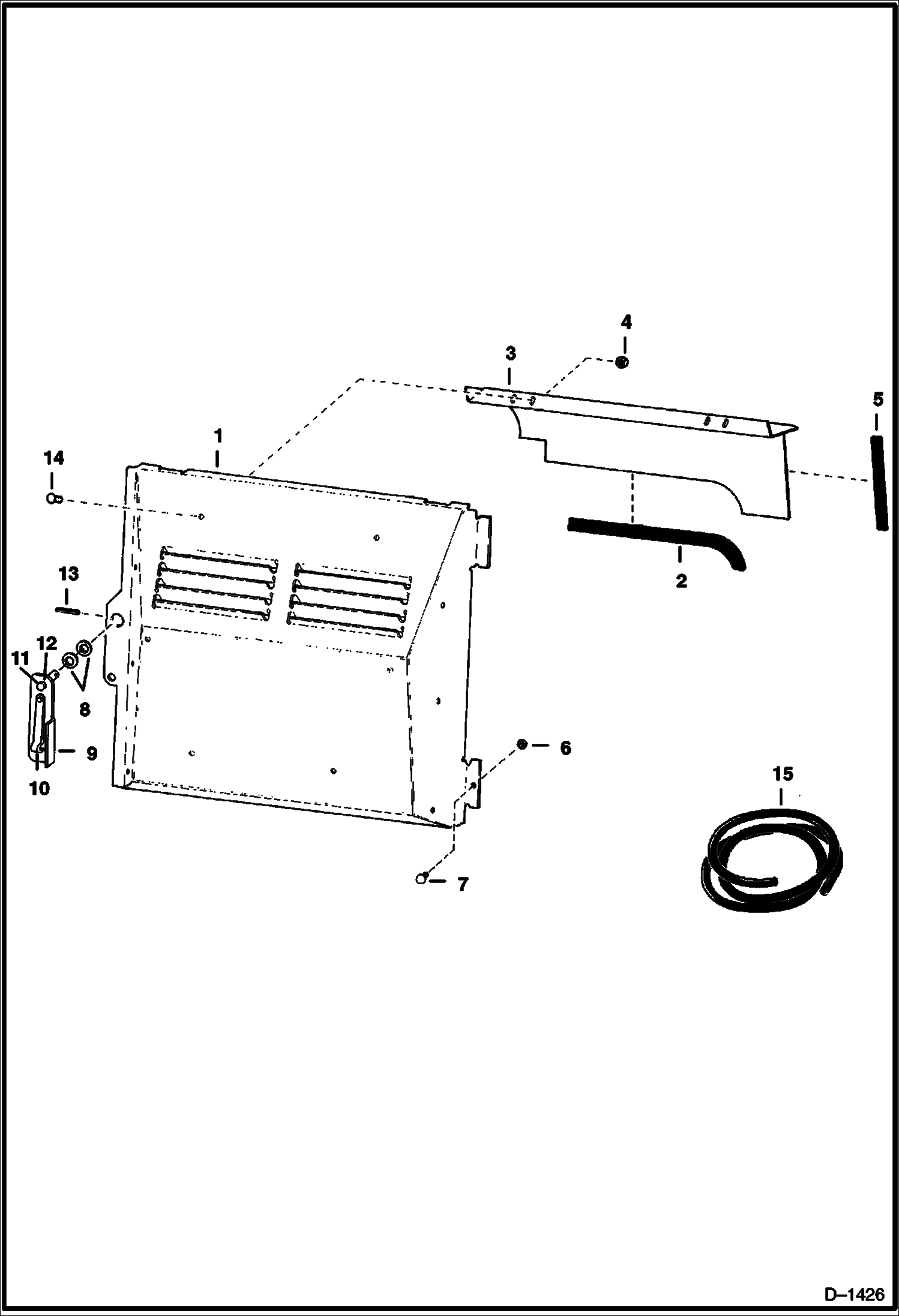

Запчасти Bobcat 700s REAR DOOR MAIN FRAME

1

REAR DOOR See BTI166 NLA - Was 6558463 - A

2

MOULDING NLA - 22'' (558,8 mm) long - Order Ref. 15 - Was 6558848 - A

3

COVER NLA - Was 6558181

3

COVER NLA - Was 6560622 - A

4

57D6

NUT 5

5

6558198

SEAL

6

61D8

NUT 5

7

6555419

BOLT

8

6513440

WASHER

9

HANDLE See BTI191 NLA - W/REF. 10-12 - Was 6558474 - A

10

LATCH See BTI191 NLA - spring - Was 6560534 - A

11

2H310

RIVET

12

4E8

WASHER

13

14J3740

PIN

14

6513547

BOLT carriage

15

6646705

SEAL bulk - sold per foot
