Запчасти Bobcat 700s PANELS & SEAT MAIN FRAME

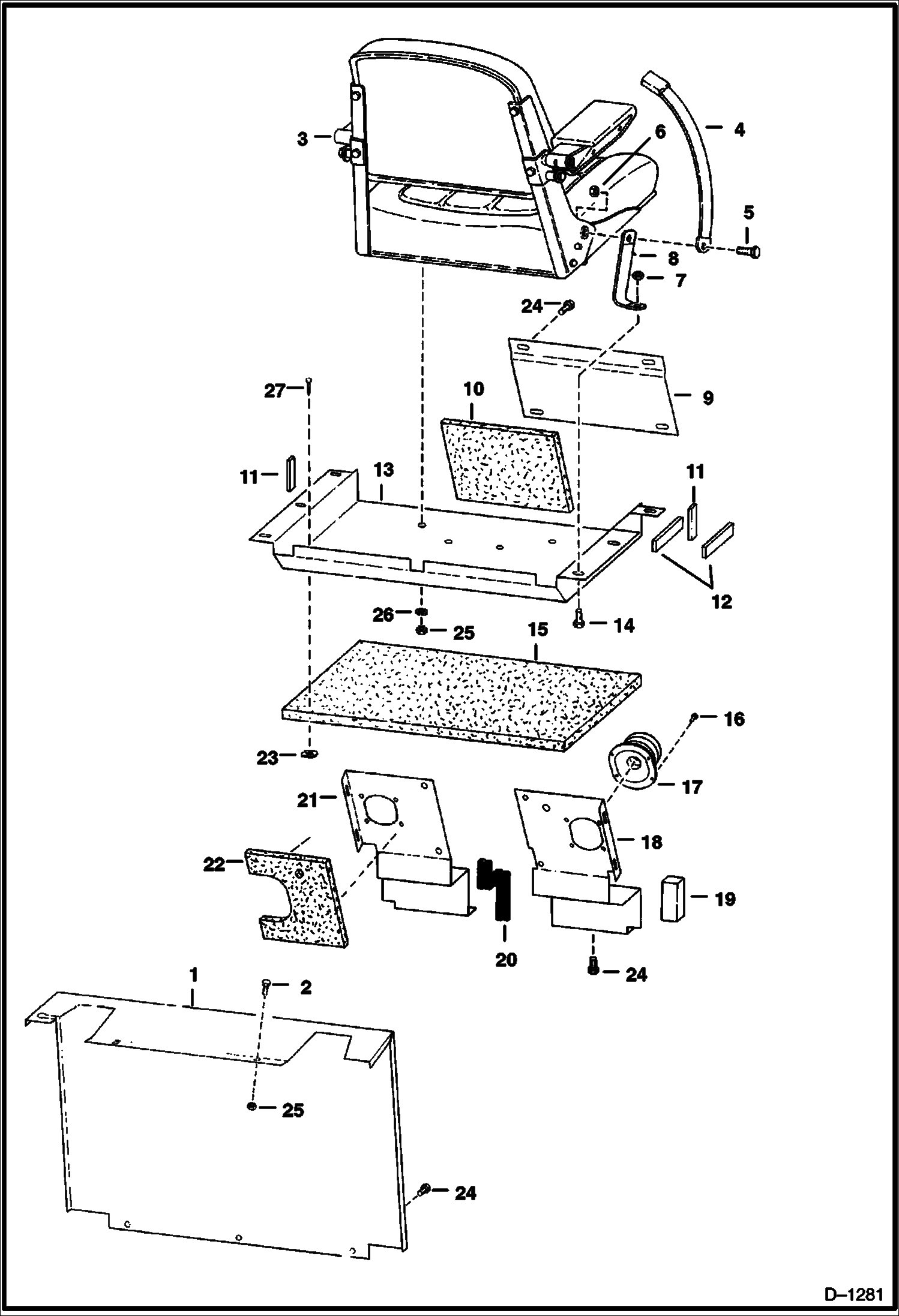

Схема запчастей Bobcat 700s - PANELS & SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

6553796

PANEL

2

84G3716

SCREW 5

3

SEAT See Illustration SEAT/ B7184

4

SEAT BELT NLA - Order 6675074 seat belt & (2) of 6725373 spring plate - Was 6563214 - A

5

17C716

BOLT

6

61D7

NUT

7

57D6

NUT 5

8

6552184

SEAT BELT

9

6557172

PLATE

10

6554365

INSULATION

11

STRIP NLA - foam

12

STRIP NLA - foam

13

PLATE NLA - seat - Was 6555648 - A

14

37C616

BOLT carriage - Was 6514537 - A

15

6554364

INSULATION

16

FASTENER NLA - pop rivet

17

6532127

BOOT rubber - Was 6563540 - A

18

PANEL NLA - RH - Was 6559576 - A

18

6563537

PANEL R.H.

19

STRIP NLA - foam

20

BEADING 10'' - Order 2 feet of 6645705

21

6559577

PANEL L.H.

21

6563539

PANEL L.H.

22

6554365

INSULATION Was 6554366 - A

23

6555294

CLIP

24

84G3712

BOLT 5

25

61D6

NUT 5

26

4E6

WASHER

27

6555293

NAIL

Выбрано товаров: 29
