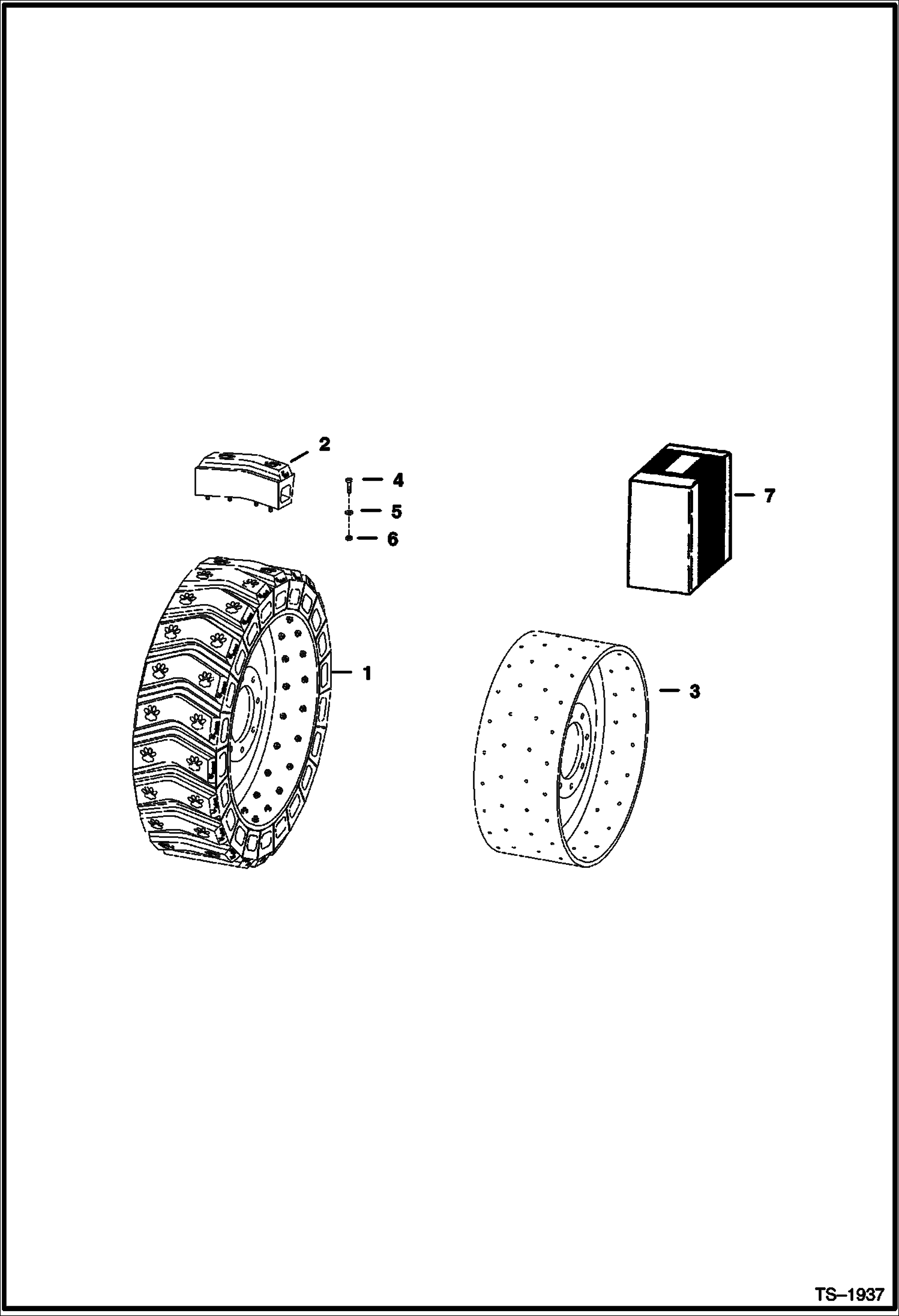

Запчасти Bobcat 700s TIRES & RIMS (Solid Tire) ACCESSORIES & OPTIONS

1

TIRE & RIM NLA - Assy - RH - 7.5 x 15 - Was 6682856 - A

1

TIRE & RIM NLA - Assy - LH - 7.5 x 15 - Was 6682857 - A

1

6674003

TIRE & RIM Assy. - R.H. - 10 x 16.5 - Was 6670616 - A

1

6674004

TIRE & RIM Assy. - L.H. - 10 x 16.5 - Was 6670617 - A

2

6664995

KIT Box of (9) segments - 7.5 x 15 W/Ref. 4 - 6 - (18) segments/tire

2

6674007

KIT Box of (10) segments - 10 x 16.5 W/Ref. 4 - 6 - (20) segments/tire - Was 6670618 - A

3

RIM NLA - R.H. - 7.5 x 15 - Order Ref. 1

3

RIM NLA - L.H. - 7.5 x 15 - Order Ref. 1

3

RIM NLA - R.H. - 10 x 16.5 - Order Ref. 1

3

RIM NLA - L.H. - 10 x 16.5 - Order Ref. 1

4

1CM830

BOLT

5

25E15

WASHER

6

40DM8

NUT

7

KIT NLA - wheel - Set of (4) 7.5 x 15 Tire & Rim Assys. - Ref. 1 - (2) R.H. & (2) L.H. - Was 6707172 - A

7

KIT NLA - wheel - Set of (4) 10 x 16.5 Tire & Rim Assys. - Ref. 1 - (2) R.H. & (2) L.H. - Was 6713885 - A
