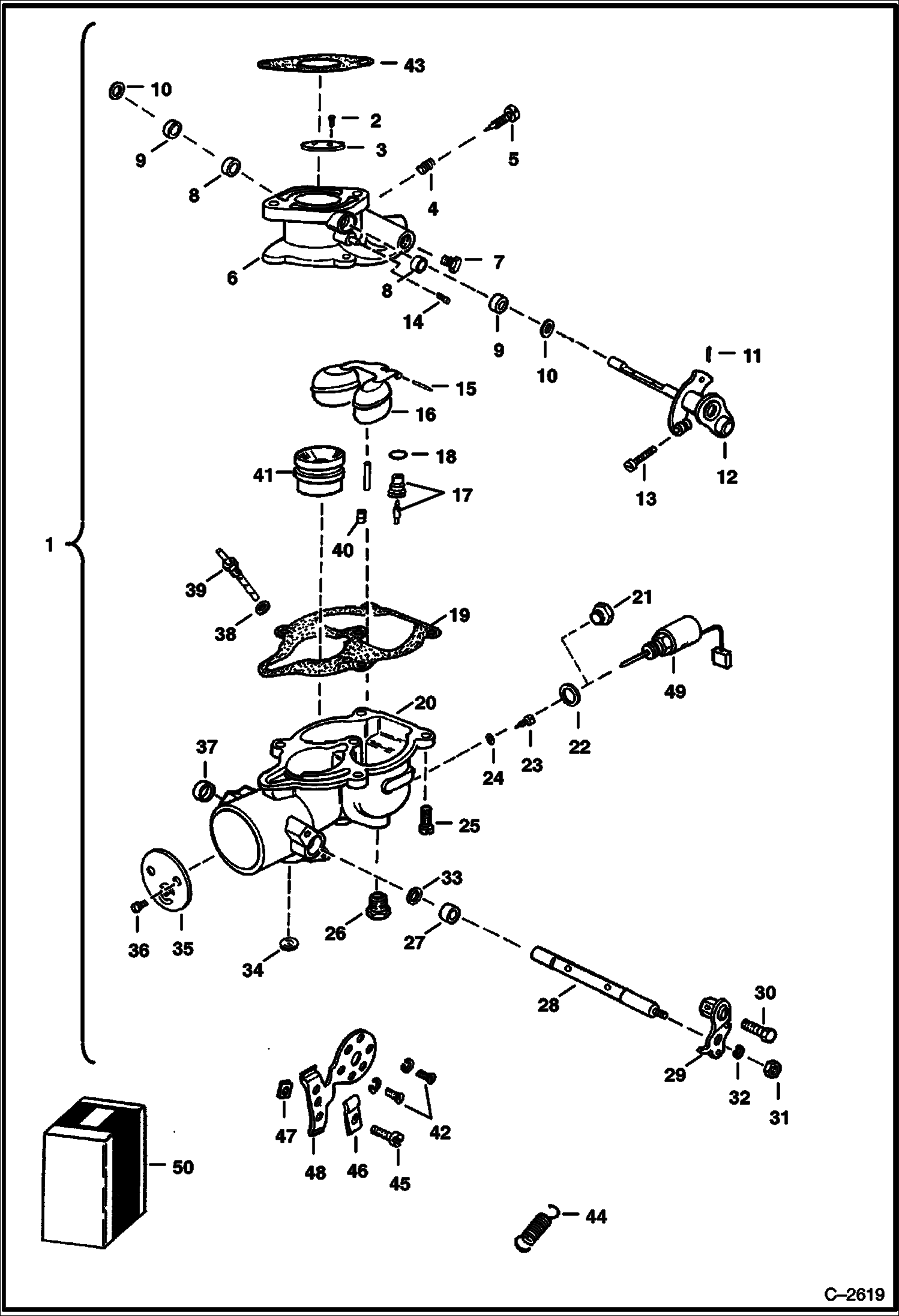

Запчасти Bobcat 700s CARBURETOR POWER UNIT

1

CARBURETOR See BTI180 NLA - Zenith 13805

1

6598372

CARBURETOR Zenith 0-13805-A (less solenoid)

2

SCREW NSS

3

PLATE NSS - throttle

4

866397

SPRING

5

6598375

NEEDLE idle

6

6598376

BODY throttle

7

3004023

PLUG

8

BUSHING NSS - not used in this model carburetor

9

PACKING NSS - not used in this model carburetor

10

RETAINER NSS

11

PIN NSS

12

6598377

SHAFT throttle

13

BOLT NLA - Was 46G000810B - A

14

JET idle

15

850001

PIN float

16

850009

FLOAT

17

NEEDLE & SEAT NSS - Was 6598378 - A

18

GASKET NSS - washer

19

GASKET NSS

20

FUEL NSS - bowl - Was 6598746 - A

21

PLUG NLA - Was 852279 - A

22

GASKET NSS - washer

23

6598380

JET

24

GASKET NSS - washer

25

SCREW NLA - Was 47G001010B - A

26

PLUG NSS

27

RETAINER NSS

28

6516595

SHAFT

29

852287

LEVER

30

SCREW NSS

31

14D8

NUT

32

17E10

WASHER

33

SEAL NSS

34

PLUG NSS

35

6598747

PLATE

36

SCREW NLA - Was 85G000504B - A

37

PLUG NSS

38

GASKET NSS

39

884428

JET

40

6598382

VENT

41

6598383

VENTURI

42

BOLT NLA - Was 871564B - A

43

6562991

GASKET Was 6512507 - A

44

853577

SPRING

45

SCREW NSS

46

CLIP NSS

47

NUT NSS

48

871563

BRACKET

49

6555915

SOLENOID, SHUTOFF FUEL carburetor

50

6512543

KIT carburetor - Refs. 5, 8-10, 15, 17-19, 22, 24, 27, 33, 37, 38 & 43
