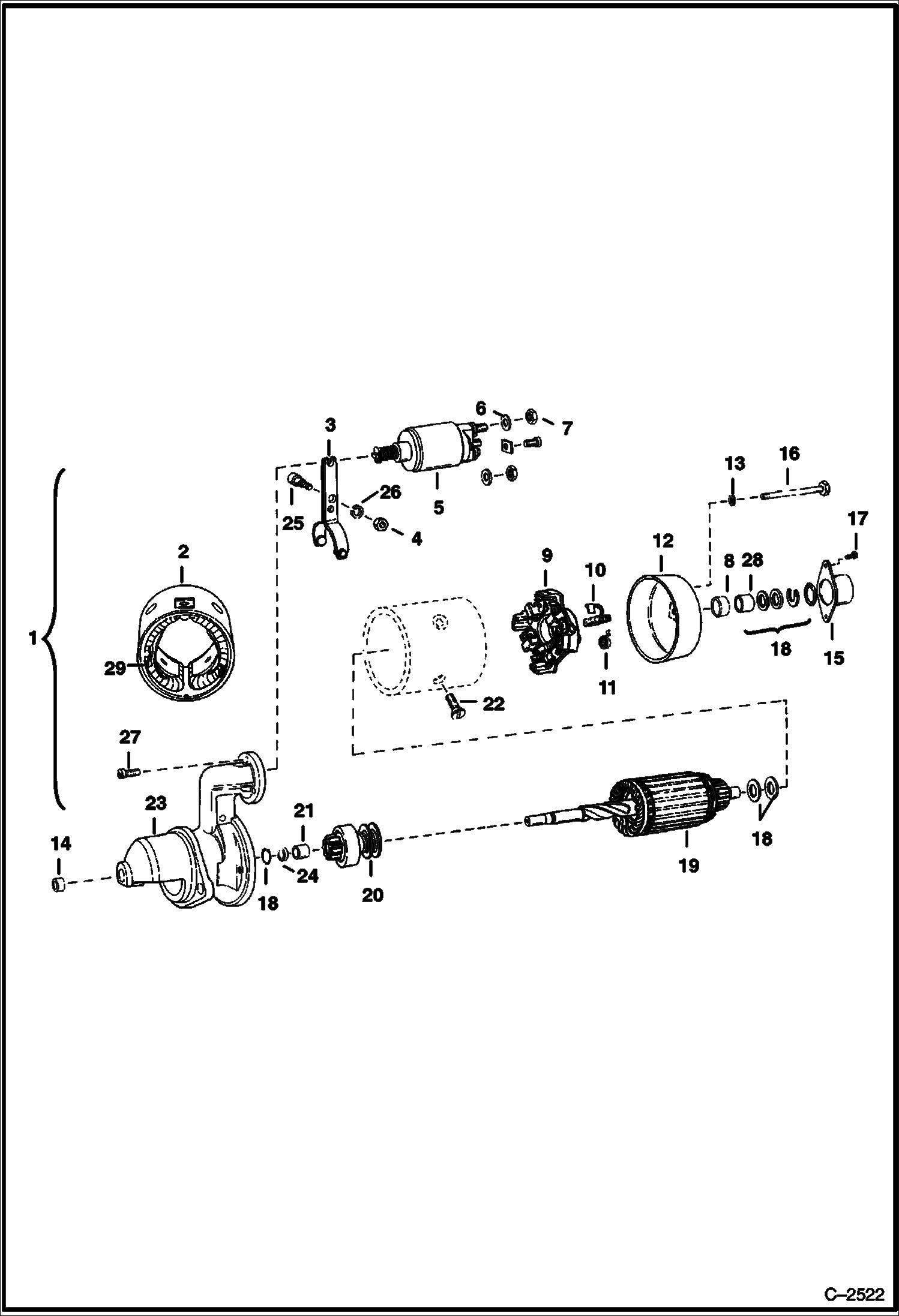

Запчасти Bobcat 700s STARTER (Bosch #0-001-311-113) ELECTRICAL SYSTEM

1

STARTER See Illustration STARTER/ C3497 NLA - ORDER 6670269 STARTER - WAS 6514398 - A

2

6514875

HOUSING

3

6513298

LEVER

4

32DM60

NUT

5

6514882

SOLENOID

6

4E5

WASHER

7

6517902

NUT

8

BUSHING NLA - Was 4148008B - A

9

6514884

PLATE brush

10

6514886

BRUSHES See Gen. Ser. Bltn. G-006

11

6514885

SPRING

12

6514887

COVER W/Ref. 8

13

6513366

WASHER

14

6514880

BUSHING

15

6513302

COVER

16

6514889

BOLT

17

6517905

SCREW

18

6513304

KIT armature hardware

19

6514876

ARMATURE

20

6514877

DRIVE

21

6513294

BUSHING

22

6513297

SCREW

23

6514879

HOUSING

24

6514878

RING

25

6514881

BOLT

26

4151803

WASHER Was 4151490 - A

27

6514883

BOLT

28

6514888

BUSHING

29

6514891

SEAL
