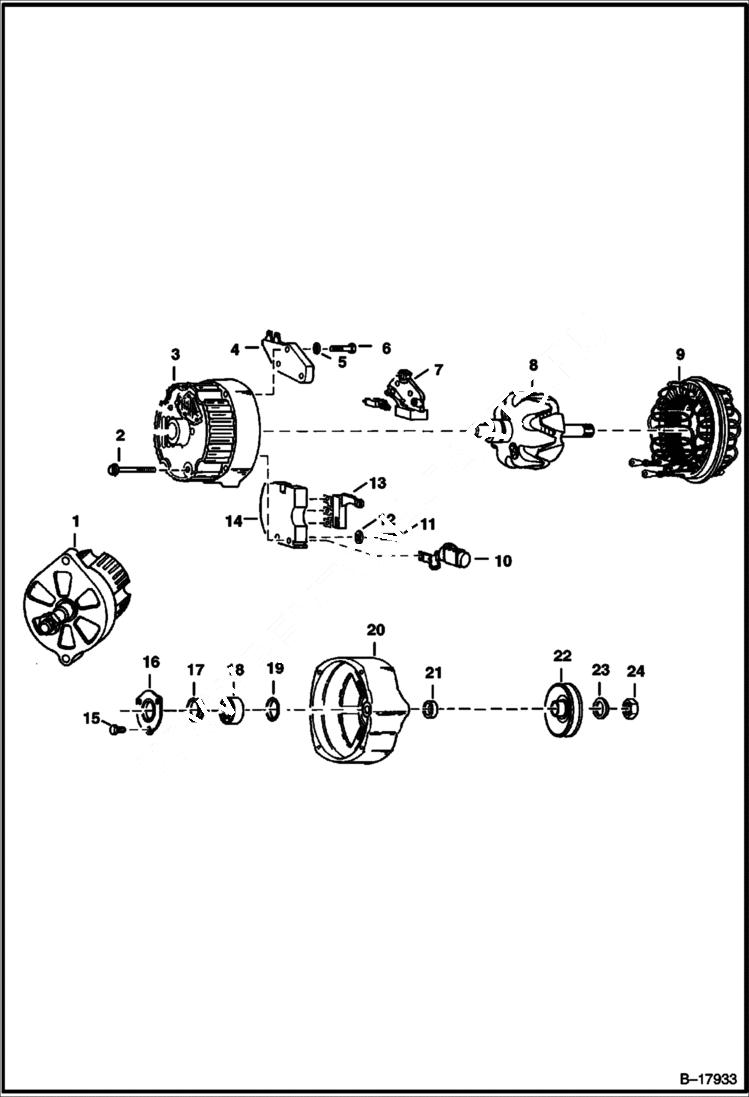

Запчасти Bobcat 700s ALTERNATOR (Delco 1100499) (Closed) ELECTRICAL SYSTEM

1

ALTERNATOR See Illustration ALTERNATOR/ B17935 NLA - ORDER 6599740 ALTERNATOR, 4CM00825B BOLT & 33DM00060B NUT

2

BOLT NLA - thru

3

FRAME NLA - Was 6511954 - A

4

REGULATOR NLA - voltage - Was 994381B - A

5

WASHER NLA

6

BOLT NLA

7

HOLDER NLA - brush assy. - Was 995184B - A

8

6599772

ROTOR

9

2343911

STATOR

10

CAPACITOR NLA - Was 999308B - A

11

BOLT NLA

12

WASHER NLA

13

DIODE Was 994383B - A

14

RECTIFIER NLA - Was 995185B - A

15

BOLT NLA

16

RETAINER NLA - bearing - Was 897456B - A

17

COLLAR NLA

18

991599

BEARING

19

SLINGER NLA

20

HOUSING NLA

21

COLLAR NLA

22

6541902

PULLEY

23

734584

WASHER

24

12D8

NUT
