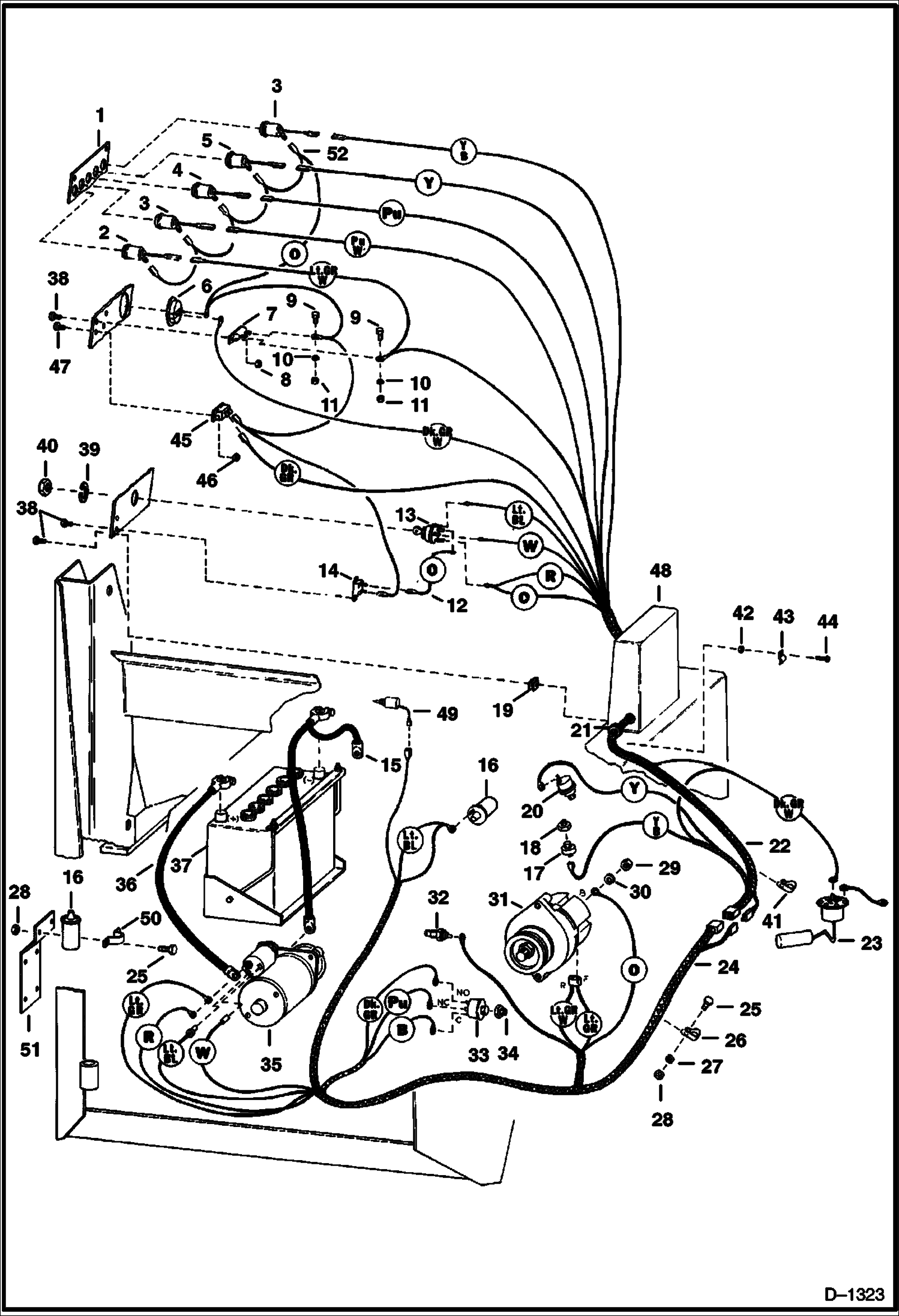

Запчасти Bobcat 700s ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6543185

COVER instrument

2

LIGHT alternator - Was 6518962 - A

3

LIGHT NLA - transmission temp - Was 6515525 - A

4

NLA - engine oil - Was 6515526 - A

5

LIGHT NLA - filter - Was 6518961 - A

6

FUEL GAUGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

6

6669665

FUEL GUAGE W/O clamp

7

556489

RES

8

12D10

NUT

9

85G804

SCREW

10

12E8

WASHER

11

12D8

NUT

12

WIRE NLA

13

6519907

SWITCH ignition

13

6505412

KEY ignition

14

6512153

CIRCUIT BREAKER

15

6555785

CABLE See BTI109 ground

16

881097

COIL ASY

17

SWITCH NLA - hydro temp - Was 6512068 - A

18

534711

CONNECTOR

19

1303869

NUT spring

20

6519334

SWITCH hydrostatic oil pressure

21

730630

GROMMET

22

6554979

HARNESS wiring

23

5204933

SENDERKIT fuel level

24

HARNESS wiring - Was 6562657 - A

25

17C512

BOLT 5

26

30H30

CLAMP

27

25E15

WASHER

28

91D5

NUT 5 Was 81D000005B - A

29

12D12

NUT

30

12E12

WASHER

31

ALTERNATOR See Illustration ALTERNATOR/ B17933

32

6630821

SWITCH engine temperature

33

6512346

SWITCH engine oil pressure

34

19F1

BUSHING

35

STARTER See Illustration STARTER/ B17982

36

6514504

CABLE battery

37

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

37

6630152

CAP battery

38

87G1008

SCREW

39

6E9

LOCKWASHE

40

6502904

NUT

41

CLAMP NLA - Was 6512154 - A

42

61D4

NUT 5

43

5H7

CLIP

44

SCREW NLA - Was 91G408 - A

45

6664886

HOURMETER Was 6631657 - A

46

12D6

NUT 10

47

87G608

SCREW

48

6541569

BOX

49

6555915

SOLENOID, SHUTOFF FUEL carburetor

50

BRACKET NLA - Was 6512914 - A

51

6558257

BRACKET

52

6554976

WIRE
