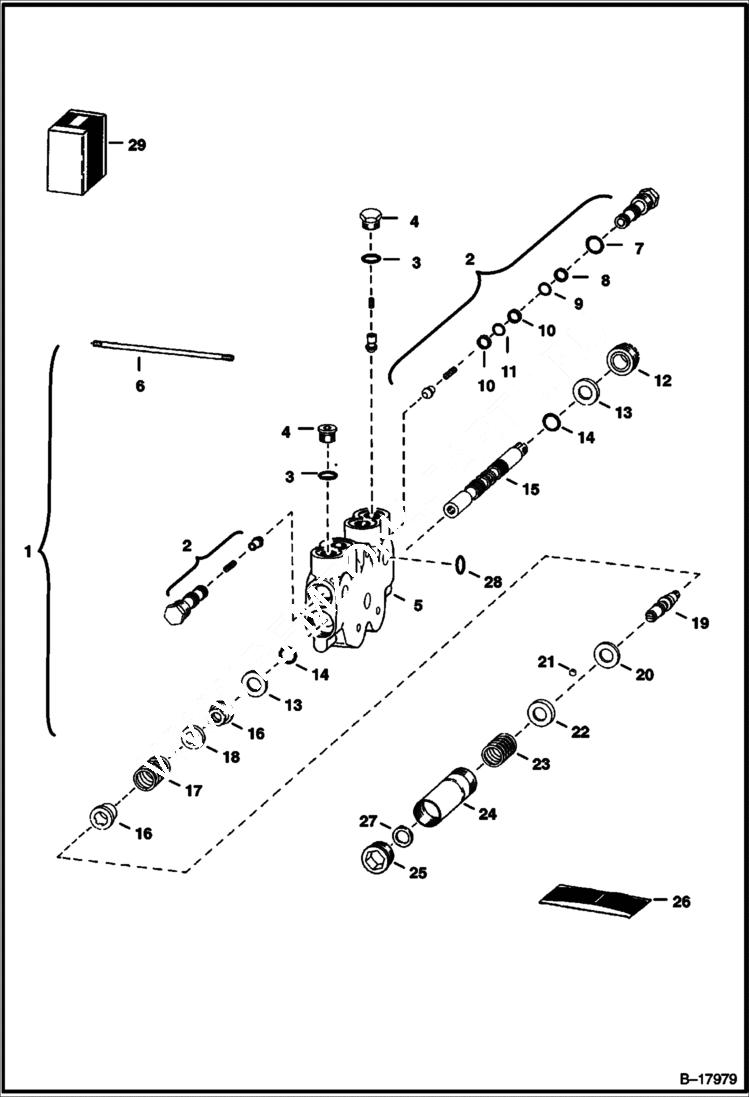

Запчасти Bobcat 700s AUXILIARY SECTION (Parker Hannifin) HYDRAULIC SYSTEM

1

6514012

SECTION

2

VALVE NSS - load check - Was 6513596 - A

3

79K8

O RING 10

4

47K6

PLUG

5

BODY NLA

6

6513712

TIE ROD

7

O-RING NSS

8

WASHER NSS - back-up

9

O-RING NSS

10

WASHER NSS - back-up

11

O-RING NSS

12

RETAINER ASSY. NLA - Was 1990173B - A

13

WASHER NLA - Was 878231B - A

14

O-RING NSS

15

SPOOL NLA

16

6514047

RETAINER spring

17

878234

SPRING

18

6514049

WASHER

19

6514046

STUD

20

WASHER NLA - Was 1990299 - A

21

10J9

BALL

22

CAM NLA - Was 1990282 - A

23

6514050

SPRING

24

CAM NLA

25

PLUG NLA - Was 6513599 - A

26

6513216

SEAL KIT

27

WASHER NLA - Was 6513600 - A

28

58K121

O RING

29

6560861

SECTION KIT Ref. 1, 6 & 28
