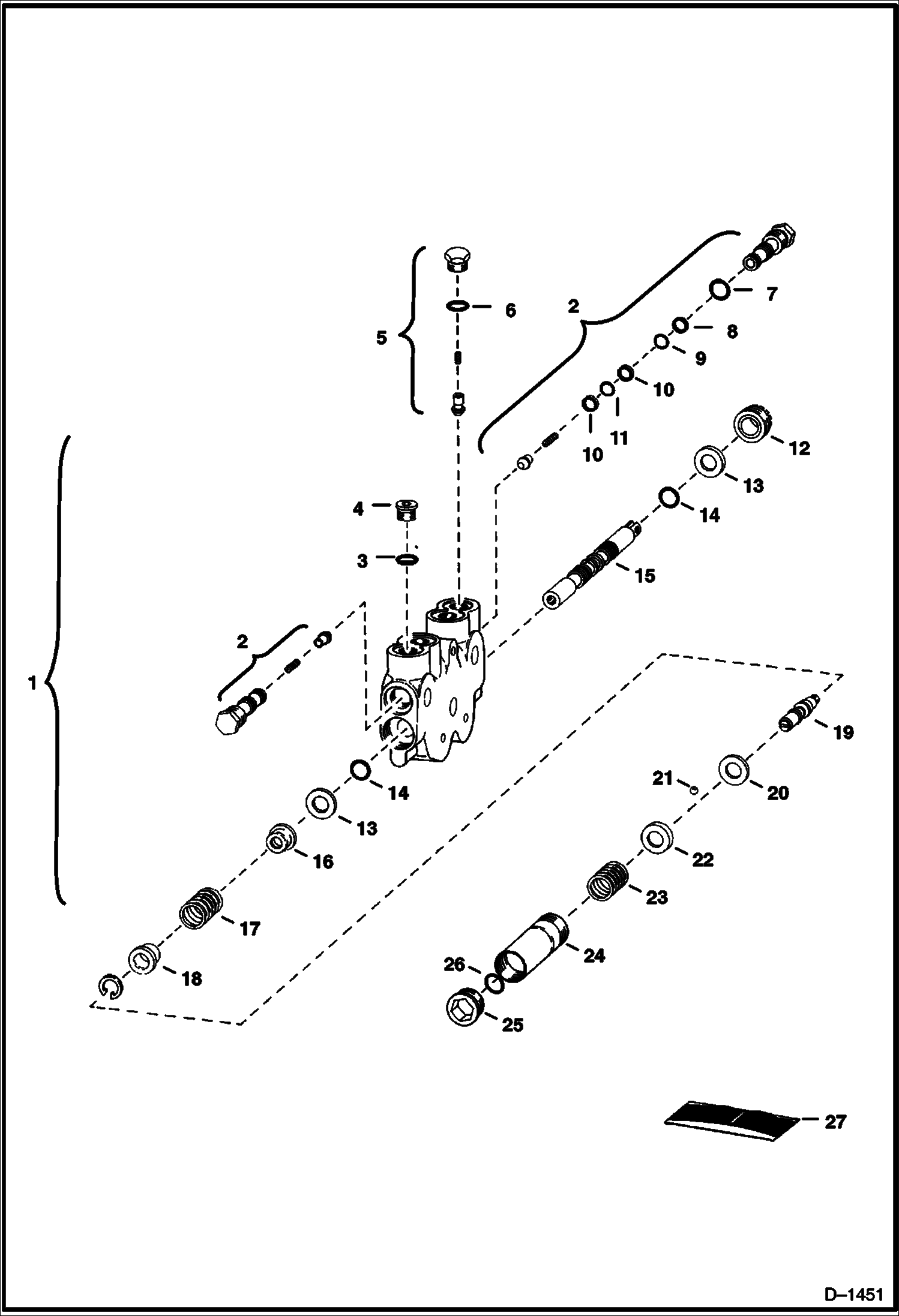

Запчасти Bobcat 700s LIFT SECTION (Parker Hannifin) HYDRAULIC SYSTEM

1

SECTION NSS - valve - Was 6513214 - A

2

VALVE NSS - load check - Was 6513596 - A

3

79K8

O RING 10

4

47K6

PLUG

5

VALVE NLA - check - Was 6513597 - A

6

O-RING NSS

7

O-RING NSS

8

BACK-UP WASHER NSS

9

O-RING NSS

10

BACK-UP WASHER NSS

11

O-RING NSS

12

RETAINER ASSY. NLA - Was 1990173B - A

13

WASHER NLA - Was 878231B - A

14

O-RING NSS

15

SPOOL NLA

16

RETAINER NLA - spring - Was 1990289B - A

17

SPRING NLA - Was 1990288B - A

18

RETAINER NLA - spring - Was 1990288B - A

19

6513644

DETENT

20

WASHER NLA - Was 1990299 - A

21

10J9

BALL

22

CAM NLA - Was 1990282 - A

23

SPRING NLA - Was 1990298B - A

24

TUBE NLA - detent - Was 6513598 - A

25

PLUG NLA - Was 6513599 - A

26

WASHER NLA - Was 6513600 - A

27

6513216

SEAL KIT
