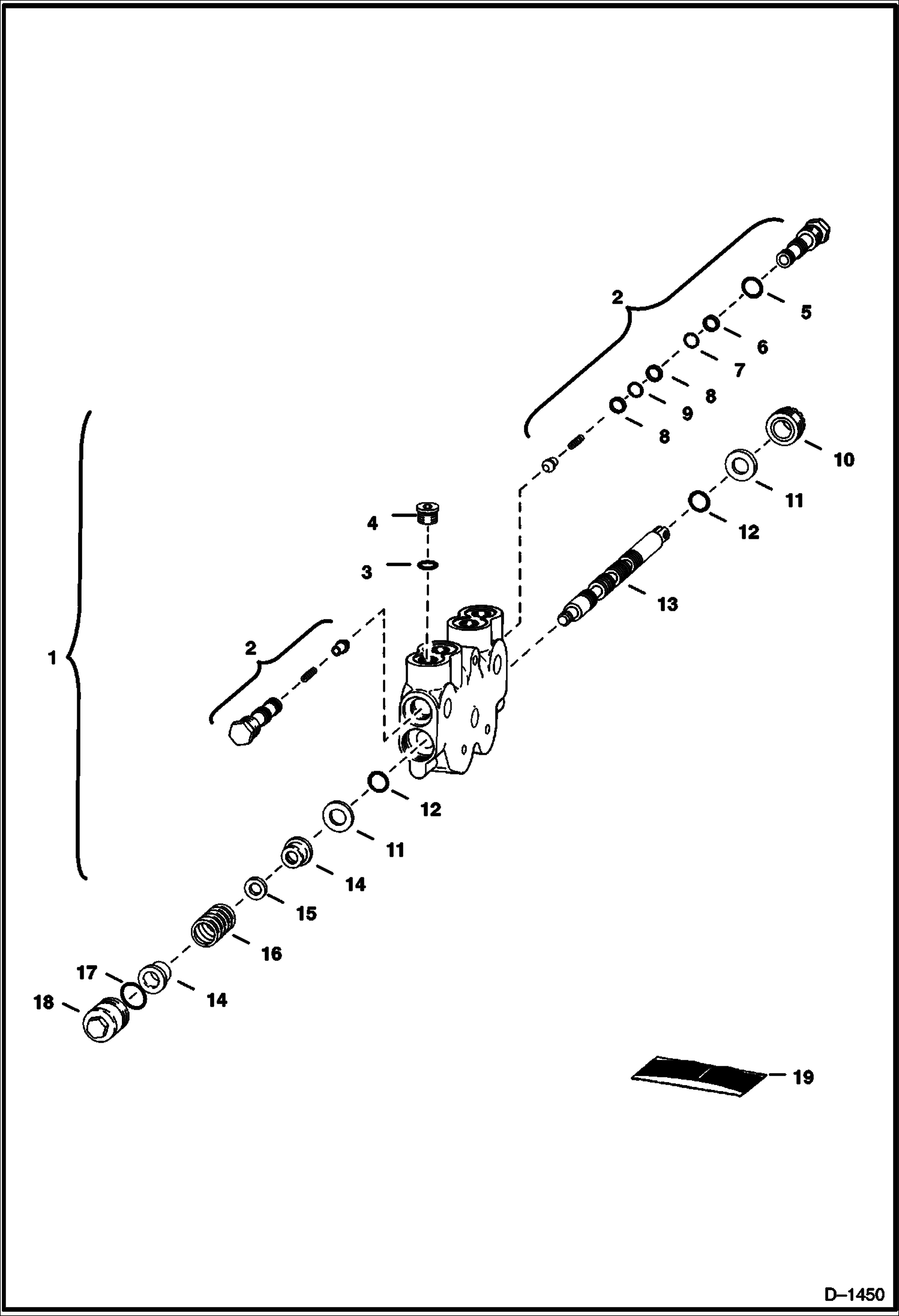

Запчасти Bobcat 700s AUXILIARY & TILT SECTION (Parker Hannifin - P/N 12866 & Above) HYDRAULIC SYSTEM

1

SECTION See BTI242 NLA - Was 6513213 - A

2

VALVE NSS - load check - Was 6513596 - A

3

79K8

O RING 10

4

47K6

PLUG

5

O-RING NSS

6

BACK-UP WASHER NSS

7

O-RING NSS

8

BACK-UP WASHER NSS

9

O-RING NSS

10

RETAINER ASSY. NLA - Was 1990173B - A

11

WASHER NLA - Was 878231B - A

12

O-RING NSS

13

SPOOL NLA

14

6514047

RETAINER spring

15

6514049

WASHER

16

SPRING NLA - Was 6640802 - A

17

SNAP RING NLA - Was 878235 - A

18

6635685

COVER

19

6513216

SEAL KIT
