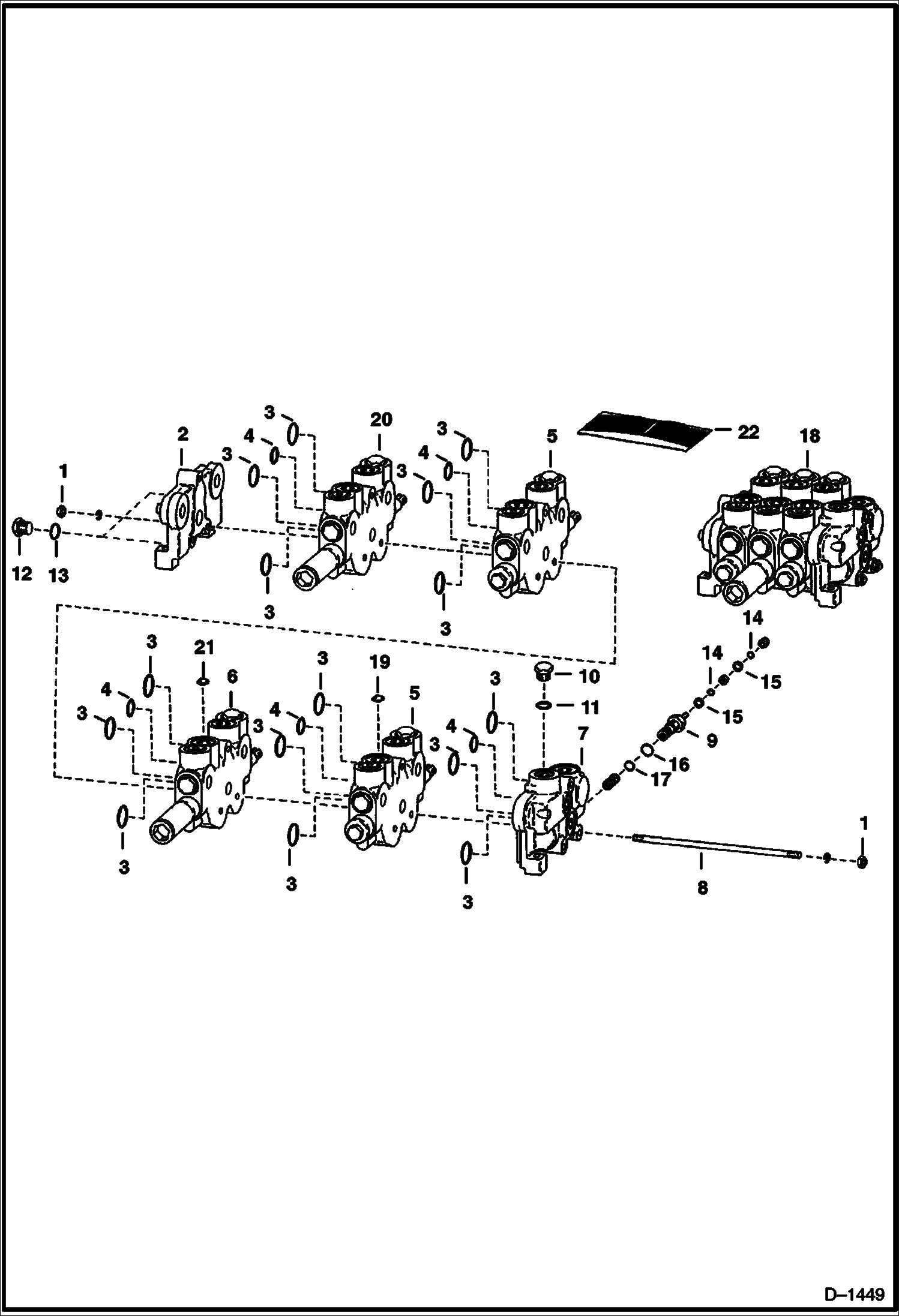

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (Parker Hannifin - S/N 12866 & Above) HYDRAULIC SYSTEM

1

62D6

NUT 5

2

6513217

COVER outlet

3

O-RING NSS

4

O-RING NSS

5

6513213

SECTION See Illustration AUXILIARY & TILT SECTION/ D1450 AUX. & TILT

6

SECTION See Illustration LIFT SECTION/ D1451 NLA - LIFT - WAS 6513214 - A

7

6513210

COVER inlet

8

6513215

STUD

9

RELIEF VALVE NSS - Was 6513211 - A

10

47K6

PLUG W/Ref. 11

11

79K8

O RING 10

12

47K8

PLUG W/Ref. 13

13

79K12

O RING 10

14

O-RING NSS

15

BACK-UP WASHER NSS

16

O-RING NSS

17

O-RING NSS

18

VALVE See BTI242 NLA - control - order Gresen V20 Valve

19

6598794

RESTRICTOR Size .062 - Was 6510760 - A

20

6514012

SECTION See Illustration AUXILIARY SECTION/ B17979 AUXILIARY

21

6519954

ORIFICE Size .156

22

6513212

SEAL KIT Inlet

22

6513216

SEAL KIT One Section
