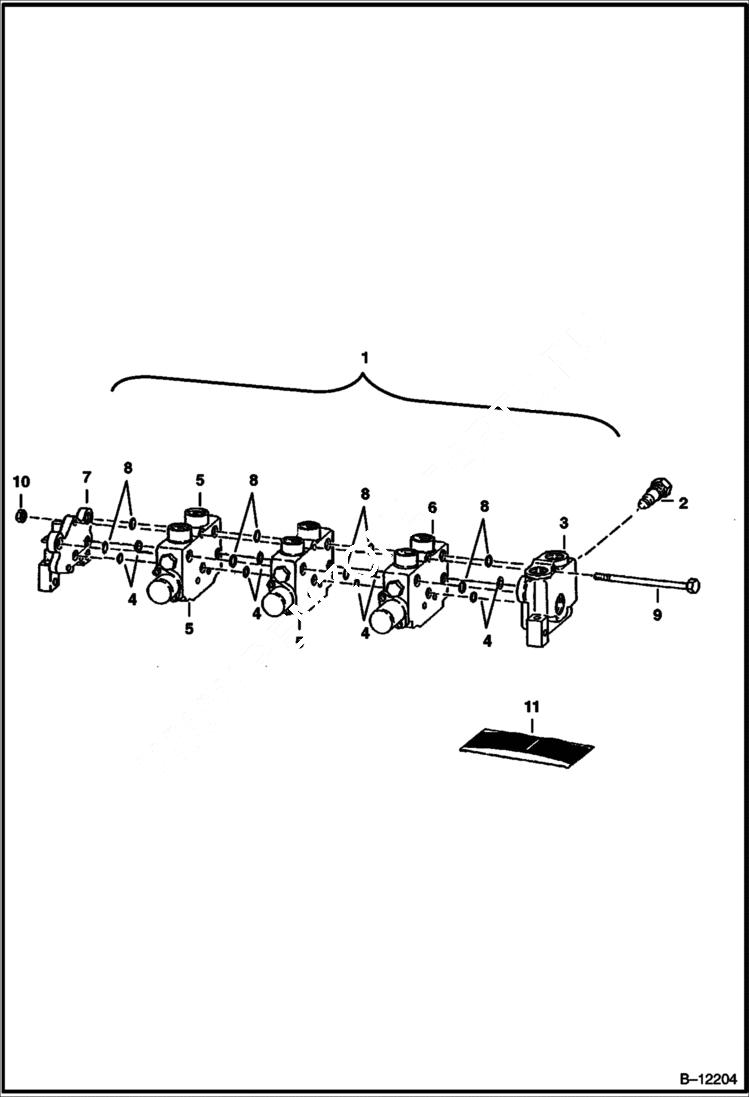

Запчасти Bobcat 700s HYDRAULIC CONTROL VALVE (Gresen V20) HYDRAULIC SYSTEM

1

6658667

VALVE 3 spool - W/O Relief Valve - Was 6649917 - C

1

6658668

VALVE 4 spool - W/O Relief Valve - Was 6649918 - A

2

6650698

RELIEF VALVE

3

6650702

COVER

4

O-RING NSS

5

6650703

SECTION See Illustration AUXILIARY TILT SECTION/ B12205 TILT & AUX.

6

6659260

SECTION See Illustration LIFT SECTION/ B12642 LIFT - WAS 6651323 - C

7

6650699

COVER

8

O-RING NSS

9

6651336

STUD KIT 4 spool - W/Ref. 10

9

6647706

STUD KIT 3 spool - W/Ref. 10

10

NUT NSS

11

6650704

SEAL KIT Ref. 4 & 8
