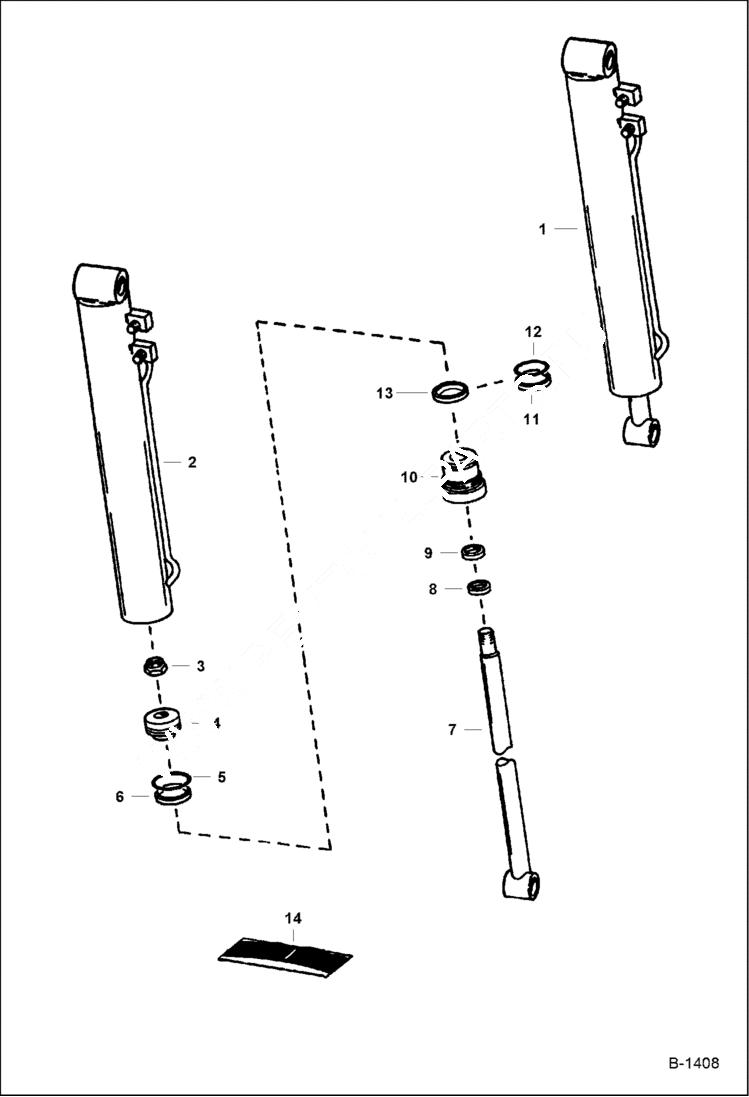

Запчасти Bobcat 700s TILT CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - LH - Ref. 2-12 - A

1

6540231

CYLINDER R.H. - Ref. 2-12

2

CASE NLA - LH - Was 6592035 - A

2

CASE NLA - RH - Was 6592036 - A

3

92D12

NUT See BTI126 - Was 86D000012B - B

4

6558196

PISTON See BTI126

5

54K30118

O-RING Was 25K030118B - A

6

6516231

SEAL piston

7

6594129

ROD

8

1657083

WIPER ROD wiper

9

6667323

SEAL rod - Was 6519518 - A

10

6504933

HEAD

11

73K224

RING backup

12

54K40124

O-RING Was 25K040124B - A

13

7008781

SEAL, QUAD

14

7137771

SEAL KIT Ref. 3, 5, 6, 8, 9, & 13 - Was 6803472 - A
