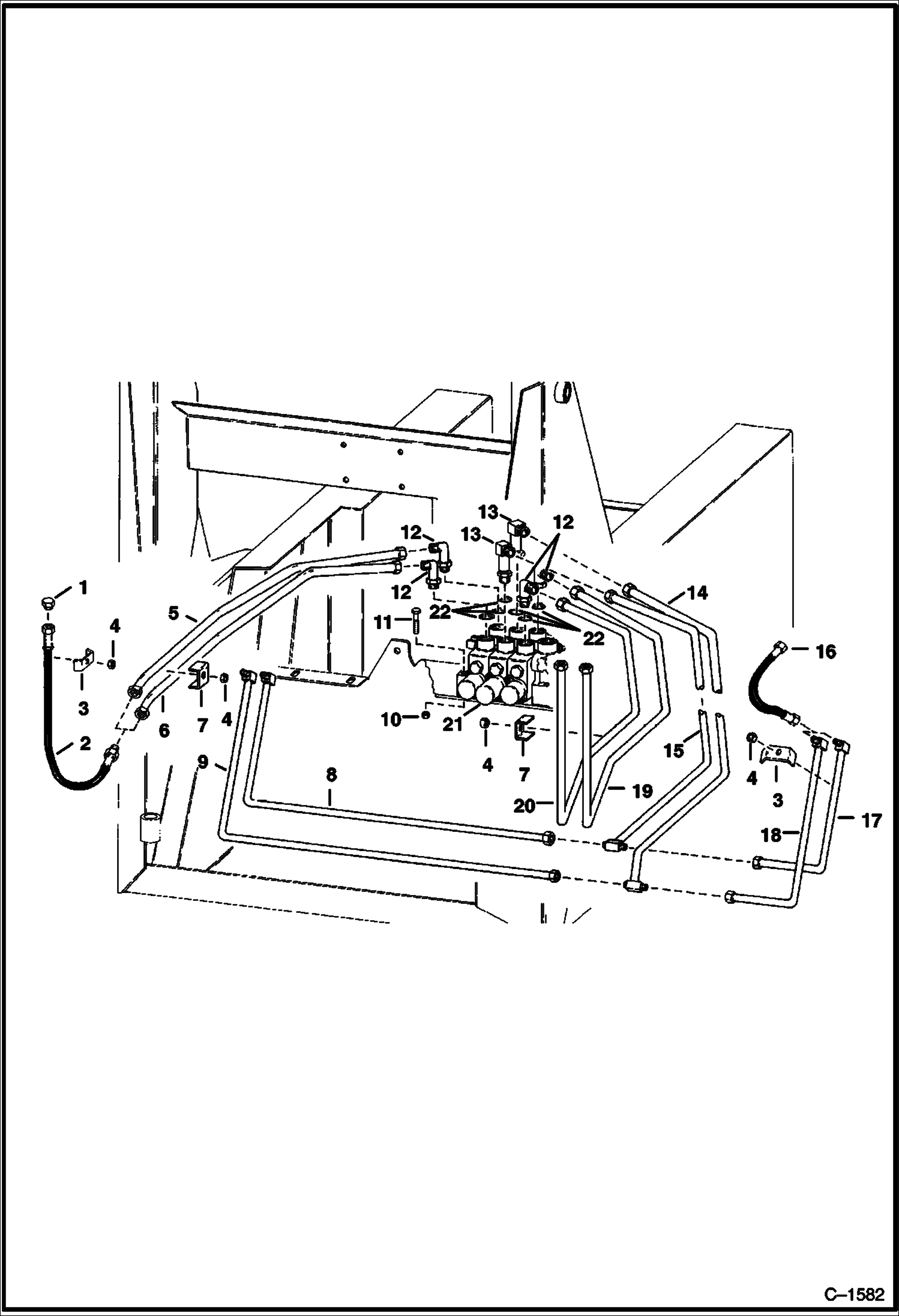

Запчасти Bobcat 700s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

6519493

PLUG Was 891203B - A

2

6546460

HOSE

3

6502773

CLAMP

4

81D6

NUT

5

6544513

TUBE Front Aux.

6

6544514

TUBE Rear Aux.

7

6541684

CLAMP

8

6541648

TUBE

9

6541649

TUBE

10

61D5

NUT

11

17C540

BOLT

12

17K7

ELBOW W/Ref. 22

13

6519195

ELBOW W/Ref. 22

14

6541654

TUBE

15

6541643

TUBE

16

6541095

HOSE

17

6541647

TUBE

18

6541651

TUBE

19

6541655

TUBE

20

6541656

TUBE

21

See Illustration HYDRAULIC CONTROL VALVE/ B17977

22

79K10

O RING 10
