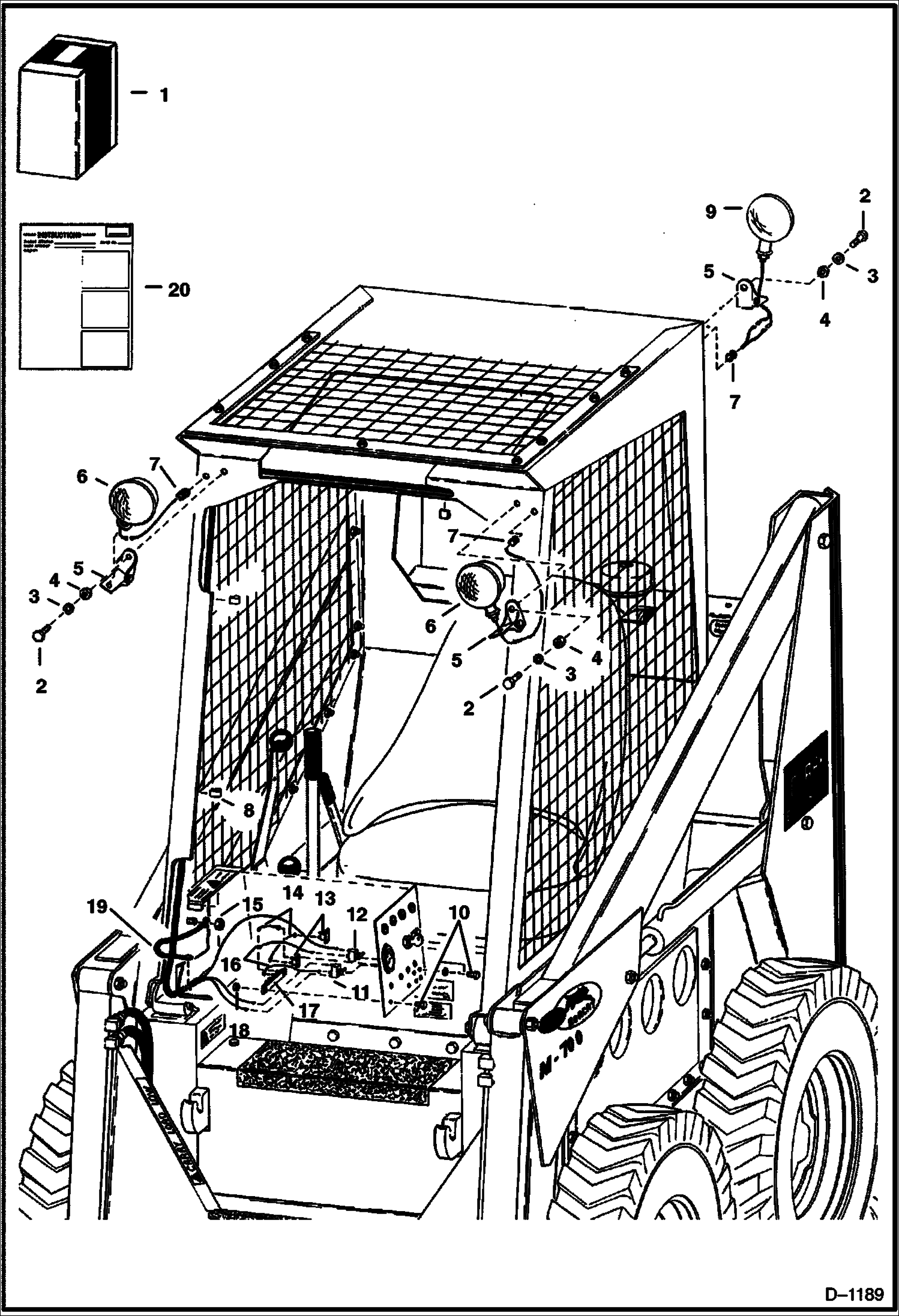

Запчасти Bobcat 700s LIGHTS ACCESSORIES & OPTIONS

1

6553054

KIT lights - Ref. 2-20

2

17C616

BOLT 5

3

4E6

WASHER

4

61D6

NUT 5

5

BRACKET NLA - Was 6547315 - A

6

HEADLIGHT NLA - Order 6644980 or 6644961 - Was 6517676 - A

6

LENS NLA - Was 6515219 - A

6

BULB NLA - G.E. #57

7

1010102

GROMMET

8

30H27

CLAMP

9

6519340

LIGHT

9

877752

4411 BULB

9

6655055

BULB Was 506475B - A

10

87G1008

SCREW machine

11

6515522

SWITCH

12

6515521

SWITCH

13

6519746

BREAKER circuit

14

WIRE NLA

15

81D6

NUT

16

WIRE NLA

17

6519247

CONNECTOR connector

18

12D10

NUT

19

WIRE NLA - ground

20

INSTRUCTIONS NLA - WPrint Instructions from Bass - Was 6549790 - A
