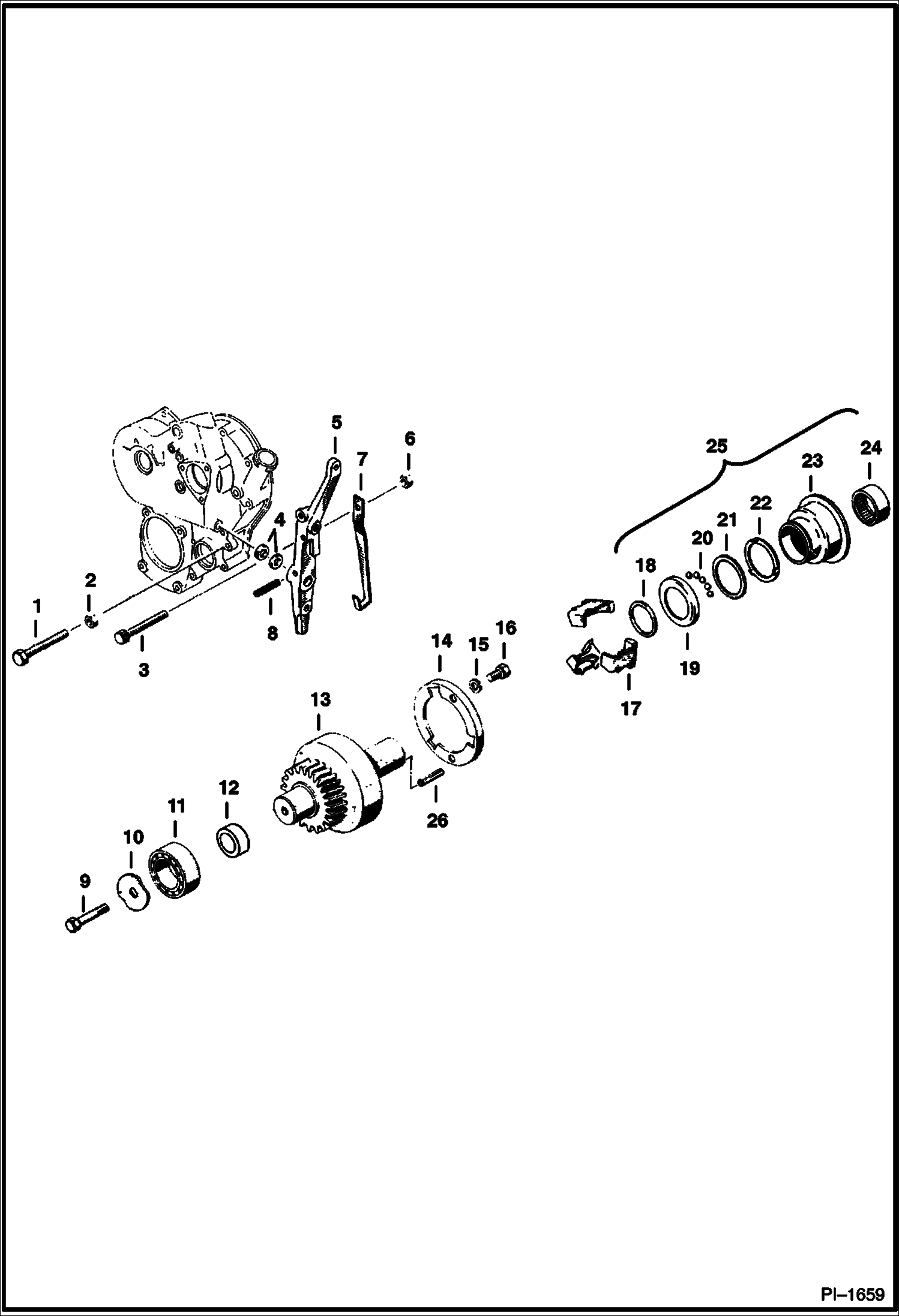

Запчасти Bobcat 700s THROTTLE ARM & GOVERNOR POWER UNIT

1

4CM850

BOLT

2

1DM8

NUT

3

4CM650

HEX BOLT

4

6516185

O-RING

5

LEVER NLA - Was 6511841 - A

6

1DM6

NUT

7

6516186

SPRING leaf

8

1JM5028

PIN dowel

9

1CM645

BOLT

10

6511357

WASHER spring

11

6511368

BEARING

12

RING NLA - Was 6511358 - A

13

6513737

SHAFT drive

14

6513734

PLATE guide - Was 6516029 - A

15

8EM60

WASHER

16

1CM610

BOLT Was 4CM610 - A

17

6511360

FLYWEIGHT

18

SNAP RING NSS

19

RACE NSS - outer

20

BALLS NSS

21

RING NSS - inside

22

SHIM NSS

23

6511362

CUP bearing

24

BEARING NSS - needle

25

6513771

GOVERNOR Ref. 17-24

26

1JM3014

PIN dowel
