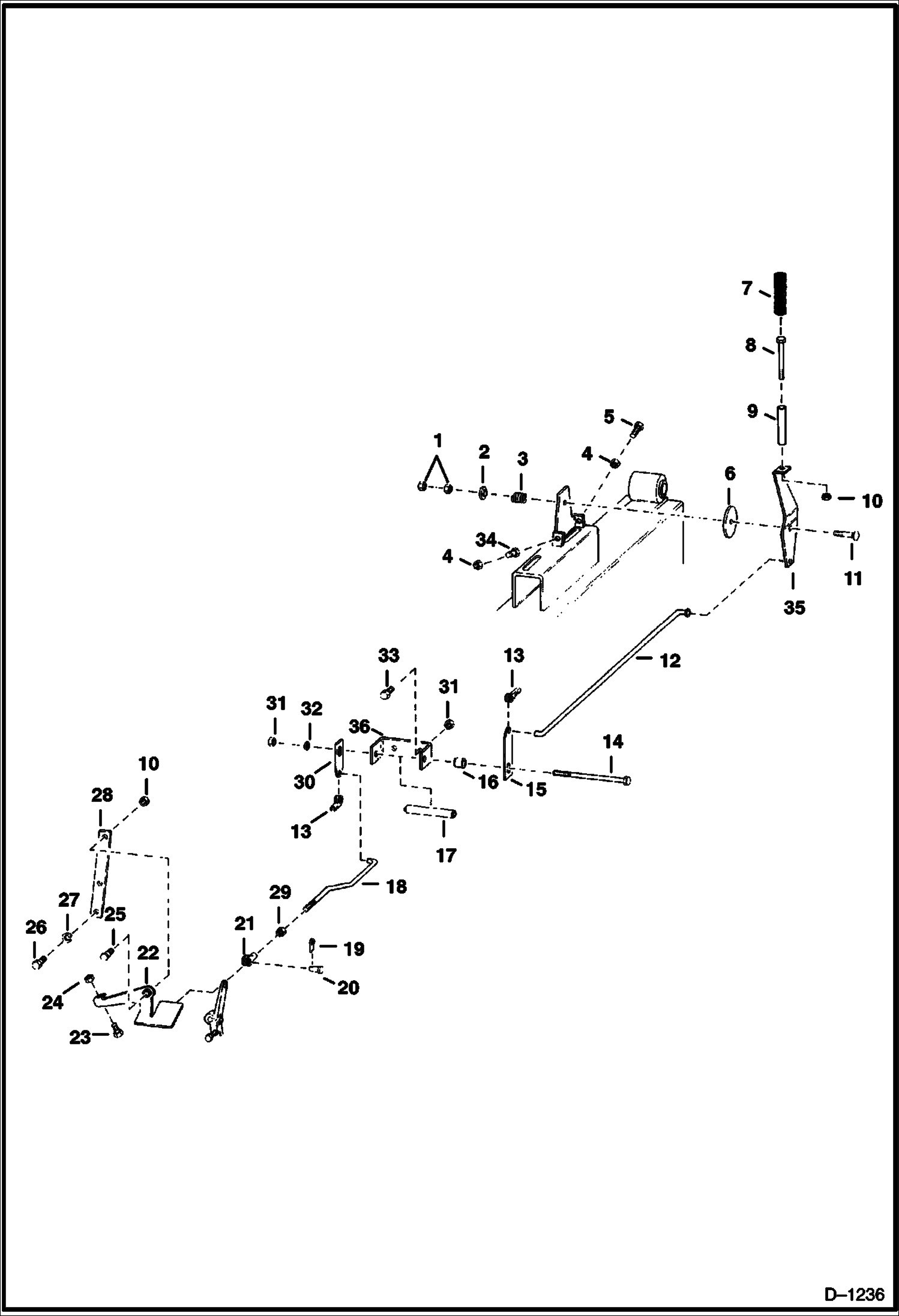

Запчасти Bobcat 700s THROTTLE POWER UNIT

1

61D6

NUT 5

2

6505623

WASHER centering

3

6704453

SPRING Was 6503387 - A

4

8D6

NUT 5

5

6551662

BOLT

6

6503388

BLOCK throttle

7

6515109

GRIP throttle

8

17C560

BOLT

9

6551296

SPACER

10

61D5

NUT

11

SCREW NLA - carriage - Was 7C636 - A

12

6547539

ROD throttle

13

6519480

CLIP retainer

14

17C6104

BOLT Was 15C006104B - A

15

6551154

ARM throttle

16

6551152

SPACER

17

6551151

TUBE

18

6547541

ROD throttle

19

1F208

PIN

20

2F4051

PIN clevis

21

2J4200

CLEVIS

22

LEVER NLA - Was 6557790 - A

23

17C416

BOLT

24

61D4

NUT 5

25

1312710

SCREW shoulder

26

1CM820

BOLT Was 4CM820 - A

27

6EM80

WASHER, SPRING

28

6547547

BRACKET excess fuel

29

62D4

NUT

30

6551153

ARM throttle

31

81D6

NUT

32

25E18

WASHER

33

17C612

BOLT 5

34

18C612

BOLT

35

6553481

LEVER

36

6551155

BRACKET
