ENGINE SHROUDING

Запчасти Bobcat 700s ENGINE SHROUDING POWER UNIT

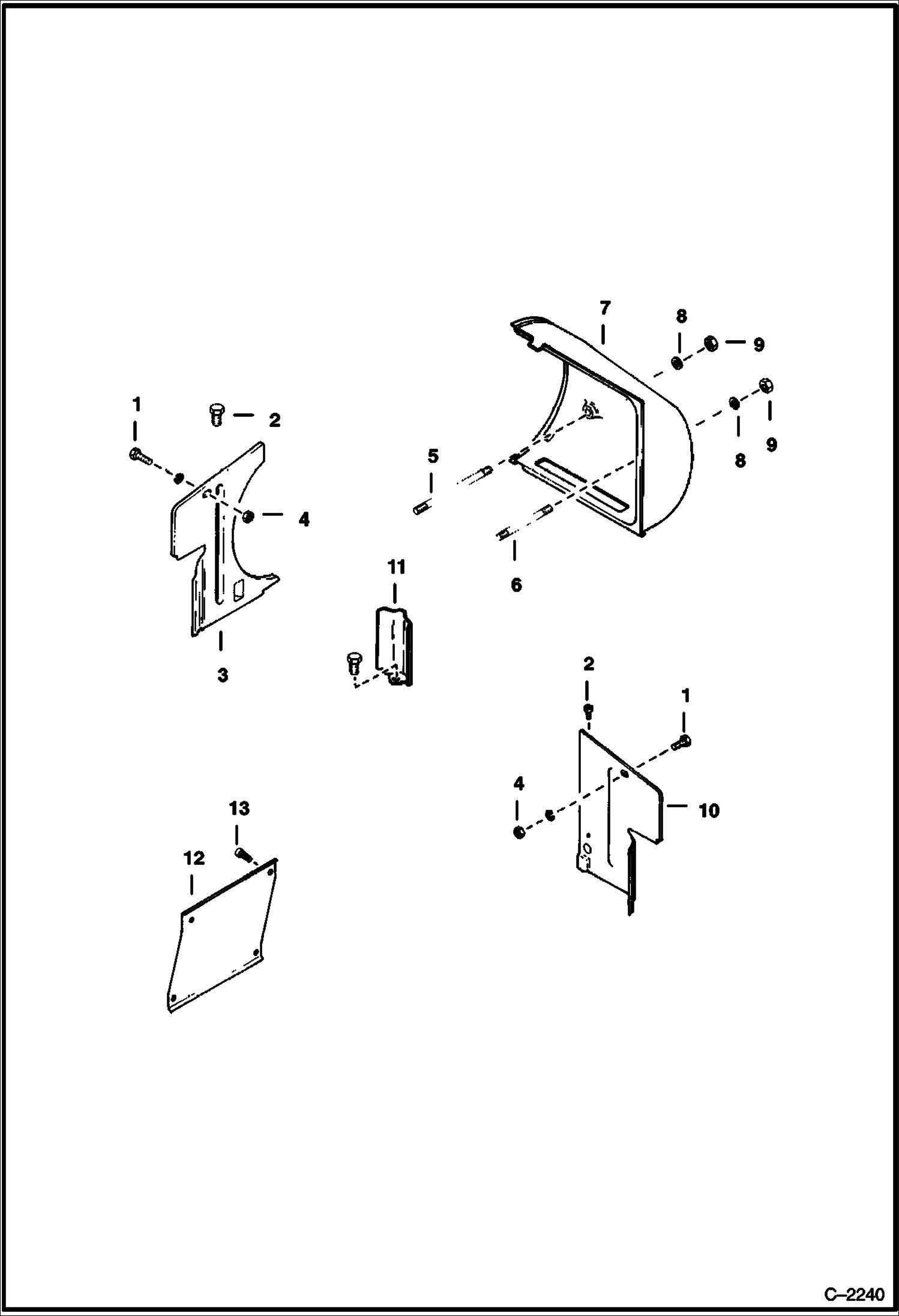

Схема запчастей Bobcat 700s - ENGINE SHROUDING POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1CM612

BOLT Was 4CM612 - A

2

13GM6010

SCREW

3

6517840

SHIELD

4

1DM6

NUT

5

6515926

STUD

6

6515925

STUD

7

6517839

SHROUD

8

1EM60

WASHER

9

NUT Was 13DM6 - A

10

PLATE NLA - Was 6511367 - A

11

6516129

SHIELD

12

6516130

BAFFLE

13

NAIL NLA - notched
