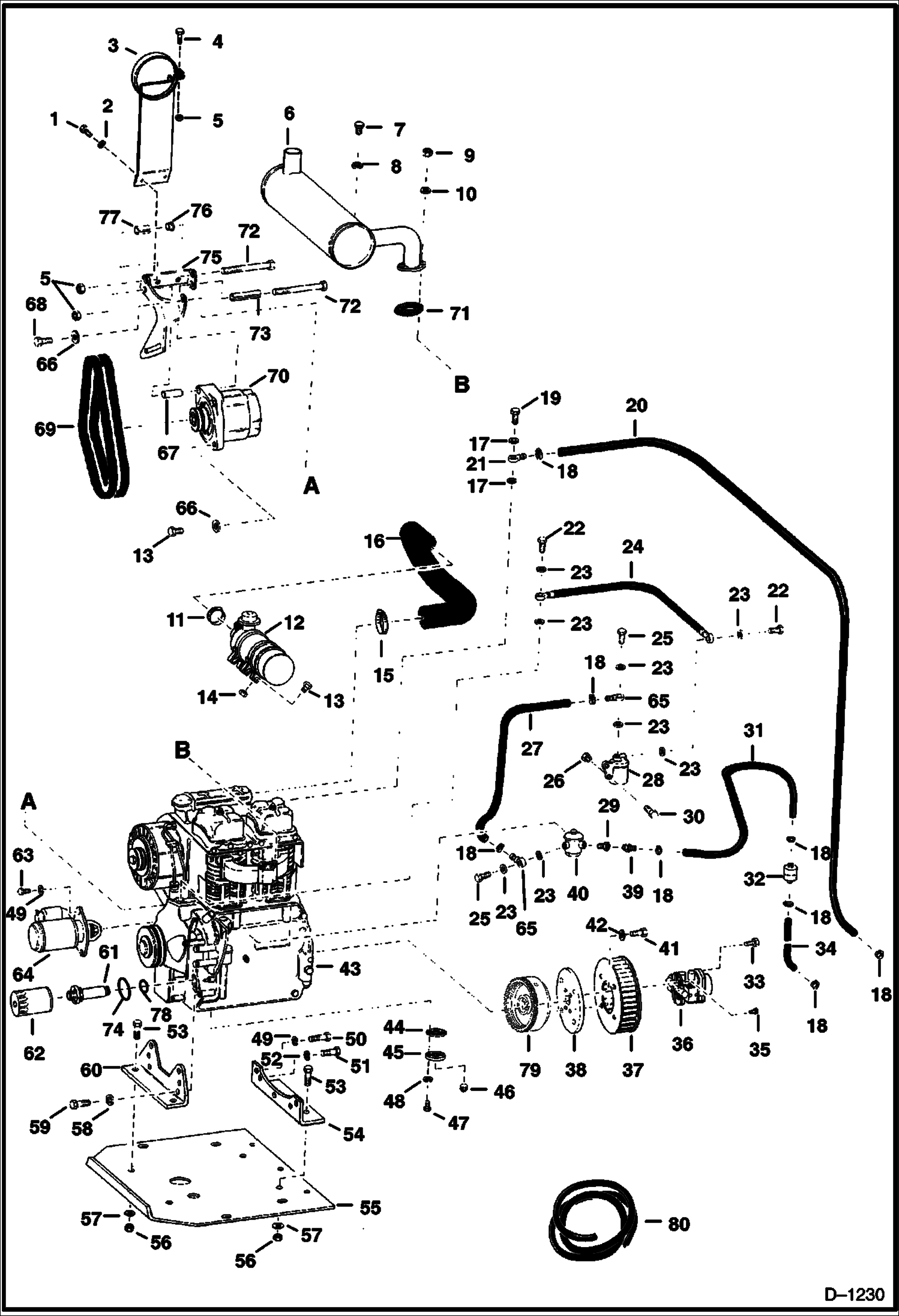

Запчасти Bobcat 700s ENGINE & ATTACHING PARTS POWER UNIT

1

17C612

BOLT 5

2

25E18

WASHER

3

6555512

BRACKET See BTI108 muffler

4

17C524

BOLT

5

91D5

NUT 5 Was 81D000005B - A

6

MUFFLER NLA - Was 6551116 - A

7

1CM820

BOLT Was 4CM820 - A

8

6EM80

WASHER, SPRING

9

1DM10

NUT

10

6EM100

WASHER

11

42H32

HS CLAMP5 Was 42H000024B - A

12

6518192

AIR CLEANER See Illustration AIR CLEANER/ B17881

13

35C516

BOLT 10 Was 6554744 - A

14

61D5

NUT

15

44H48

CLAMP Was 6515576 - A

16

6548205

HOSE

17

1FM80115

WASHER

18

42HS04

CLAMP, HOSE Was 6515575 - A

19

6555923

BOLT banjo

20

6552639

HOSE return

21

FITTING NLA - banjo - Was 6511900 - A

22

6666396

SCREW banjo - Was 6514745 - A

23

6513763

WASHER Was 2FM14180 - A

24

6516120

HOSE filter to injection pump

25

6555921

BOLT banjo

26

61D6

NUT 5

27

HOSE NLA - fuel pump to filter - 14'' (355,6 mm) long - Order Ref. 80 - Was 6558133 - A

28

FILTER See Illustration FUEL SYSTEM/ C2502 FUEL

29

ADAPTER NLA - Was 6511902 - A

30

17C616

BOLT 5

31

HOSE NLA - 86 in. (2184,4 mm) long - Order Ref. 80 - Was 6547638 - A

32

6511393

FILTER

33

94G512

BOLTS 5

34

6552638

HOSE

35

94G510

BOLTS 5

36

UNIVERSAL JOINT See Illustration UNIVERSAL JOINT/ B17937

37

FAN NLA - Was 6558638 - A

38

6551019

ADAPTER flywheel

39

ADAPTER NLA - barbed - Was 6511901 - A

40

6658087

FUEL PUMP fuel - Was 6513747 - A

41

17C620

BOLT

42

6E6

WASHER

43

ENGINE See Illustration ENGINE/ B17936 DEUTZ F2L-411D

44

6550746

GASKET

45

6550745

FLANGE

46

40K6

PLUG

47

1CM620

BOLT Was 4CM620 - A

48

6EM60

WASHER, SPRING

49

6EM120

WASHER

50

1CM1245

BOLT 5 Was 4CM1245 - A

51

4CM1040

SCREW

52

6EM100

WASHER

53

17C828

BOLT

54

6548351

MOUNT engine

55

6551142

PLATE

56

85D8

NUT, 5

57

25E22

WASHER

58

6EM140

WASHER

59

1CM1450

BOLT Was 4CM1450 - A

60

6548350

MOUNT engine

61

ADAPTER NLA - filter - Was 6511792 - A

62

6511793

ELEMENT engine oil

63

4CM1228

BOLT

64

STARTER See Illustration STARTER/ B1248

65

6511899

ADAPTER banjo

66

25E16

WSHR

67

BUSHING NLA - Was 6508137 - A

68

1CM850

BOLT

69

6511851

BELT fan

70

ALTERNATOR See Illustration ALTERNATOR/ B17933

71

6541299

GASKET muffler

72

17C588

BOLT

73

BUSHING NLA - Was 6508073 - A

74

6516076

O-RING

75

BRACKET NLA - Was 6558535 - A

76

ADAPTER NLA - Was 6558536 - A

77

PIN NLA - Was 6558537 - A

78

6516709

O-RING

79

6512547

FLYWHEEL See Illustration CRANKSHAFT, PISTON & FLYWHEEL/ C2248 W/RING GEAR

79

6516106

RING GEAR

80

6577821

HOSE bulk - sold per foot
