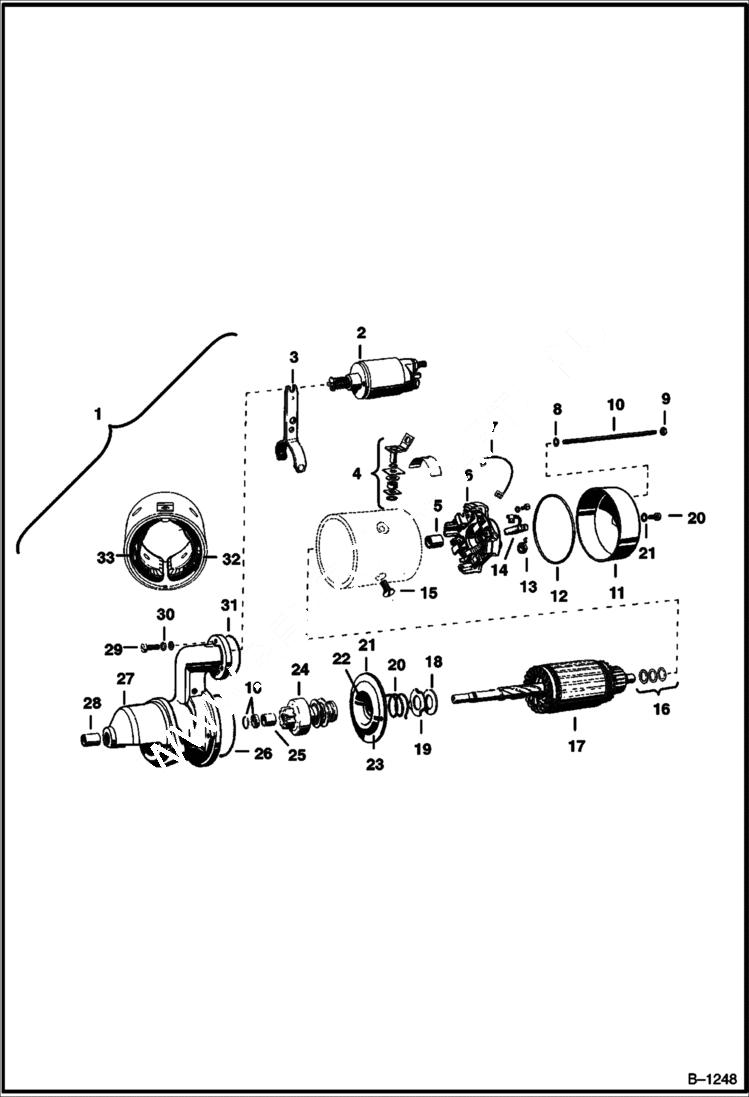

Запчасти Bobcat 700s STARTER (Bosch 0-001-358-047) ELECTRICAL SYSTEM

1

STARTER See Illustration STARTER/ C2378 NLA - ORDER 6513391 STARTER

2

3727310

RELAY

3

6518229

LEVER

4

6518238

HARDWARE terminal

5

3726930

BUSHING

6

4148076

FRAME

7

6518235

LEAD

8

WASHER NLA

9

NUT NLA

10

BOLT NLA - thru

11

6518236

COVER W/Ref. 10

12

4148037

GASKET

13

3727309

SPRING brush

14

3727308

BRUSH See Gen. Serv. Bltn. G-006 - w/ wires

15

6518227

SCREW

16

6513369

WASHER SET washer - Was 6517910 - A

17

4148057

ARMATURE

18

3726922

WASHER insulating - Was 3725922 - D

19

3726923

PLATE spring

20

3726924

SPRING

21

3726925

SEAL

22

3727305

BUSHING

23

6518233

BEARING W/Ref. 22

24

4148083

DRIVE W/Ref. 25

25

3727307

BUSHING

26

6518230

O-RING

27

6518228

FRAME W/Ref. 28

28

3739046

BUSHING

29

6518237

SCREW

30

3575268

WASHER

31

6518231

O-RING

32

4148061

COILS field 3 & 4

33

4148062

COILS field 1 & 2
