Запчасти Bobcat 700s ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

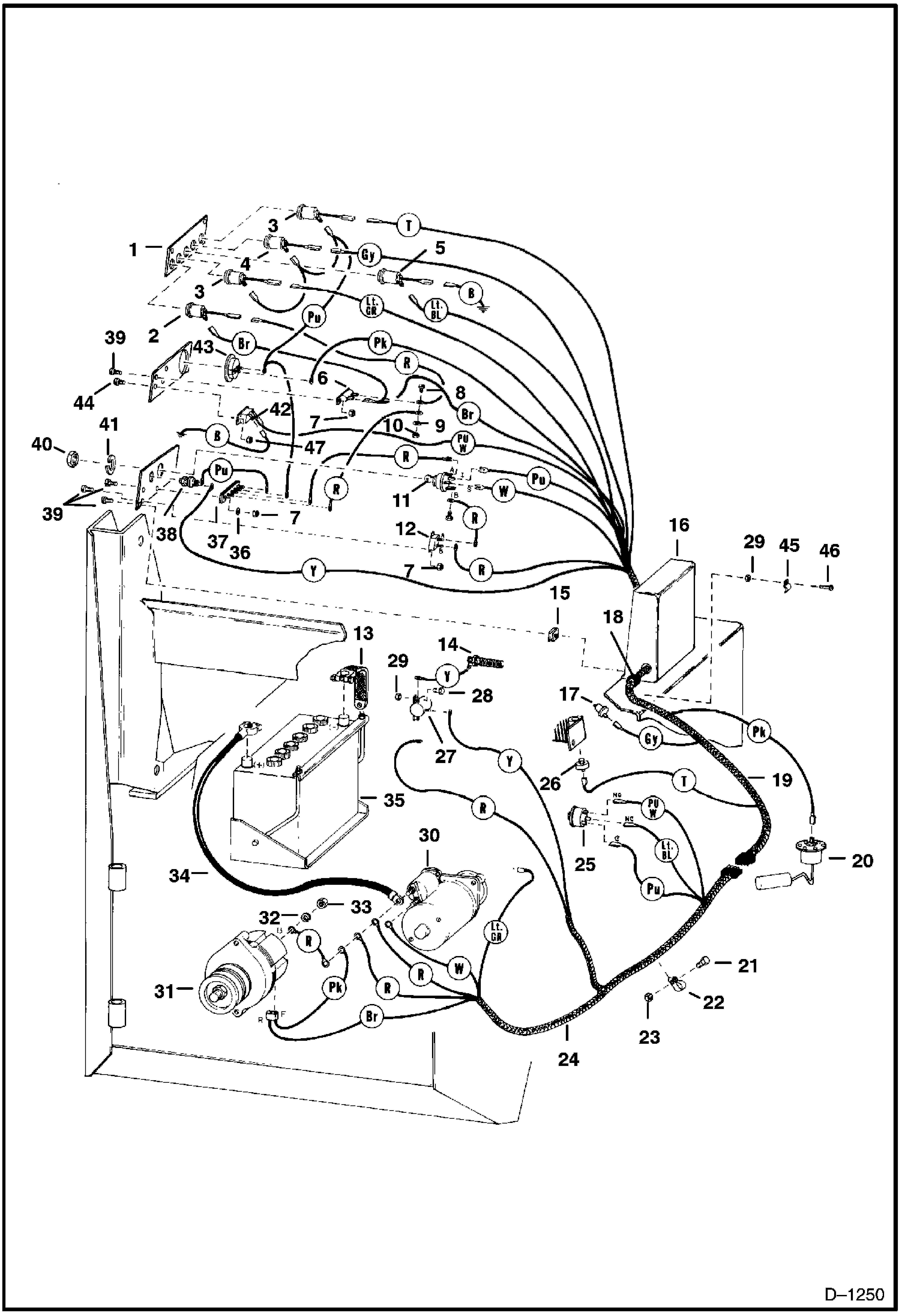

Схема запчастей Bobcat 700s - ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6543185

COVER instrument

2

LIGHT alternator - Was 6518962 - A

3

LIGHT NLA - transmission temp - Was 6515525 - A

4

LIGHT NLA - trans. oil pressure - Was 6518961 - A

5

NLA - engine oil - Was 6515526 - A

6

556489

RES

7

12D10

NUT

8

85G804

SCREW

9

12E8

WASHER

10

12D8

NUT

11

6519907

SWITCH ignition

11

6505412

KEY switch

12

6519746

BREAKER circuit

13

6553094

CABLE battery

14

6511720

PRE-HEATER

15

1303869

NUT spring

16

6541569

BOX instrument

17

6519334

SWITCH transmission pressure

18

730630

GROMMET rubber

19

6551274

HARNESS instrument

20

5204933

SENDERKIT fuel

21

17C620

BOLT

22

30H27

CLAMP

23

61D6

NUT 5

24

6551273

HARNESS engine

25

6515472

SWITCH engine oil

26

6515476

SWITCH transmission temp.

27

6659319

SOLENOID pre-heater - Was 6632186 - A

28

17C408

BOLT

29

61D4

NUT 5

30

STARTER See Illustration STARTER/ B1248

31

ALTERNATOR See Illustration ALTERNATOR/ B17933

32

17E12

WASHER

33

12D12

NUT

34

6514504

CABLE battery

35

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

35

6630152

CAP battery

36

12E10

WASHER

37

6519247

CONNECTOR connector

38

6632973

SWITCH pre-heater - Was 600259B - A

39

87G1008

SCREW

40

6502904

NUT

41

WASHER NLA - Was 9E9 - A

42

6664886

HOURMETER Was 6631657 - A

43

FUEL GAUGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

43

6669665

FUEL GUAGE W/O clamp

44

87G608

SCREW

45

5H7

CLIP

46

SCREW NLA - Was 91G408 - A

47

12D6

NUT 10

Выбрано товаров: 50
