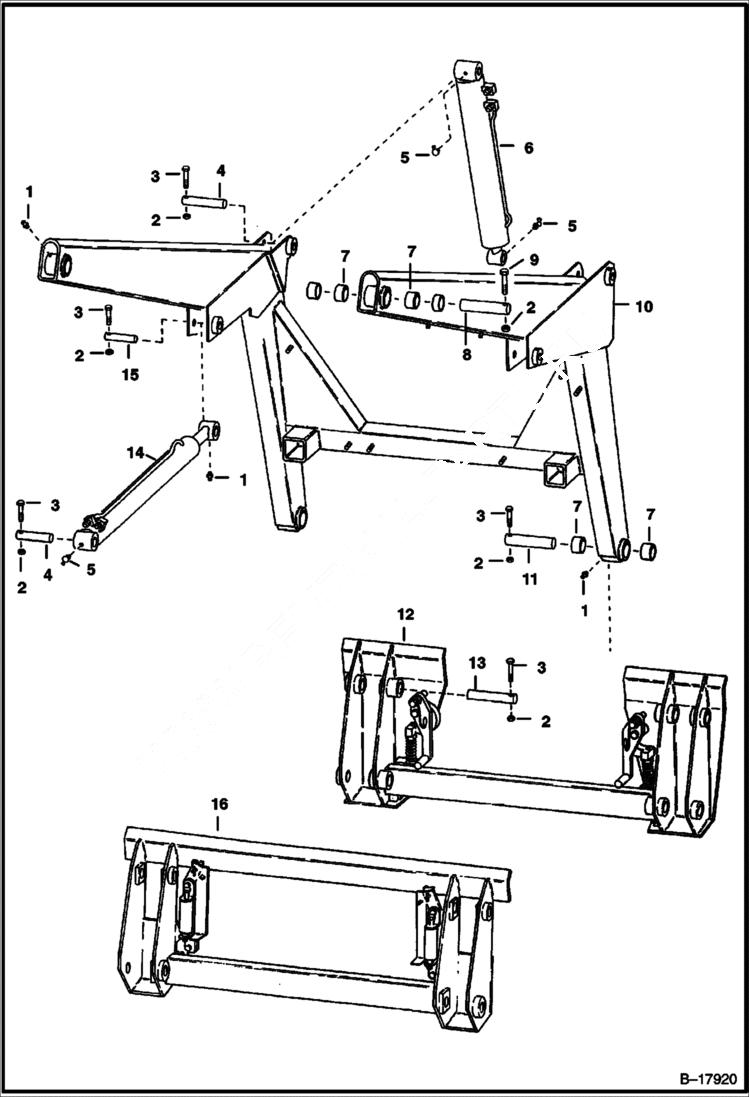

Запчасти Bobcat 700s LIFT ARMS & BOB-TACH MAIN FRAME

1

36H25

FITTING

2

59D6

NUT

3

17C640

BOLT 5

4

6547595

PIN

5

38H15

FITTING

6

CYLINDER See Illustration TILT CYLINDER/ B1408 TILT

7

6540159

BUSHING

8

6543725

PIN

9

17C648

BOLT 5

10

KIT NLA - lift arm - prime painted only - Was 6565693 - A

11

6543715

PIN 1.375''(34,9 mm) Dia.

12

BOB-TACH See Illustration BOB-TACH/ D1246

13

6547594

PIN

14

6540229

CYLINDER See Illustration LIFT CYLINDER/ B1407 LIFT

15

6547593

PIN, PIVOT

16

BOB-TACH See Illustration BOB-TACH/ C1573
