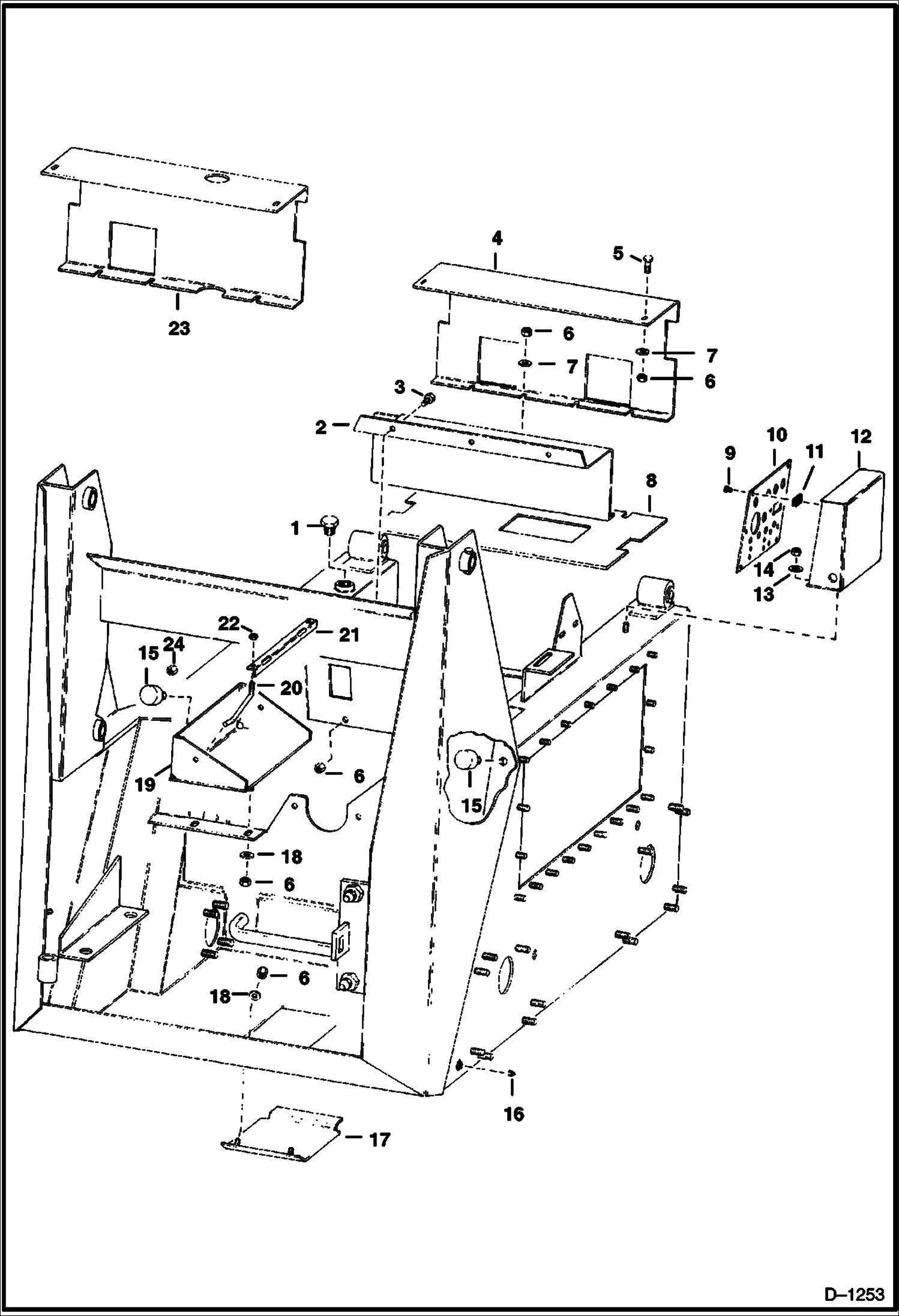

Запчасти Bobcat 700s MAIN FRAME MAIN FRAME

1

16F16

PLUG

2

6547426

STEP Was 6547425 - A

3

84G3712

BOLT 5

4

6540105

GUARD foot

5

17C616

BOLT 5

6

61D6

NUT 5

7

25E17

WASHER 5

8

6555775

PLATE floor

9

87G1008

SCREW machine

10

6543185

COVER instrument

11

1303869

NUT spring

12

6541569

BOX instrument

13

25E14

WSHR

14

61D4

NUT 5

15

BREATHER NLA - Was 6519644 - A

16

16F12

PLUG drain

17

6542218

COVER

17

6553117

COVER

18

25E18

WASHER

19

6541205

BOX battery

20

6548876

ROD battery - Front

20

6548877

ROD battery - Rear

21

6548878

HOLDDOWN battery

22

91D5

NUT 5 Was 81D000005B - A

23

6555741

GUARD

24

40K4

PLUG oil check
