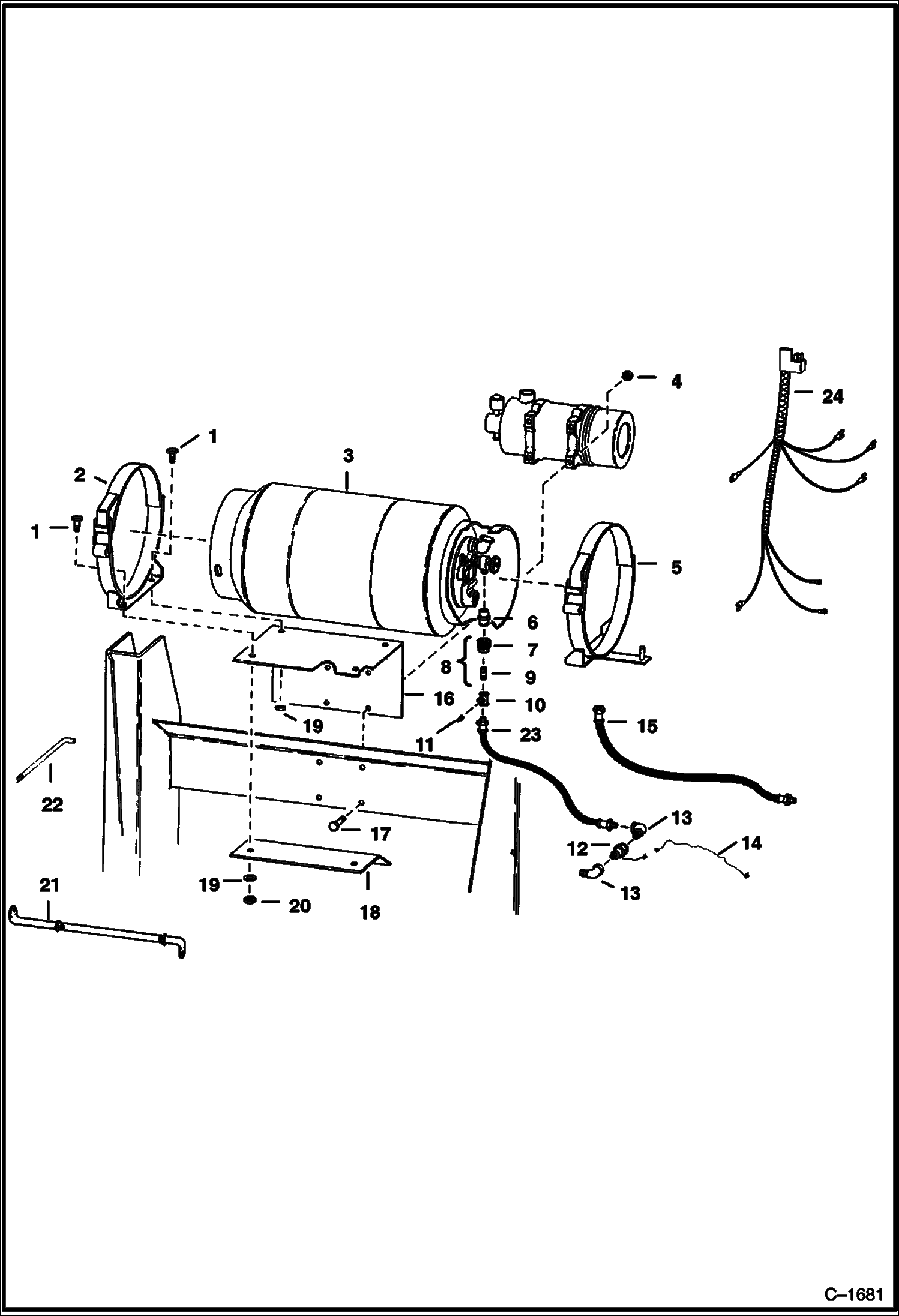

Запчасти Bobcat 700s LPG GAS TANK & ATTACHING PARTS ACCESSORIES & OPTIONS

1

17C616

BOLT 5

2

CLAMP NLA - L.H. - Was 6504954 - A

3

6515535

TANK

4

61D5

NUT

5

CLAMP NLA - R.H. - Was 6504955 - A

6

715977

COUPLER Male

7

715976

COUPLER Female

8

ADAPTER NLA - LPG tank - Order Ref. 6 & 7 - Was 715975B - A

9

5K224

NIPPLE

10

TEE NLA - Use W/Ref. 23 - Was 28K000204B - A

10

30F1

TEE

11

RELIEF VALVE NLA - Was 655336B - A

12

LOCK NLA - LPG W/Element - Was 6501945 - A

12

6515605

ELEMENT LPG filter-Use W/6501945 Filter

13

30K304

ELBOW

14

6546735

WIRE

15

HOSE Order Ref. 10 & 23 - A

16

6546097

BRACKET

17

17C516

BOLT

18

6546098

BRACKET

19

25E18

WASHER

20

61D6

NUT 5

21

6553605

JACKSHAFT

22

6547342

ROD

23

6555113

HOSE

24

6555120

HARNESS engine
