Запчасти Bobcat 700s DECALS ACCESSORIES & OPTIONS

1

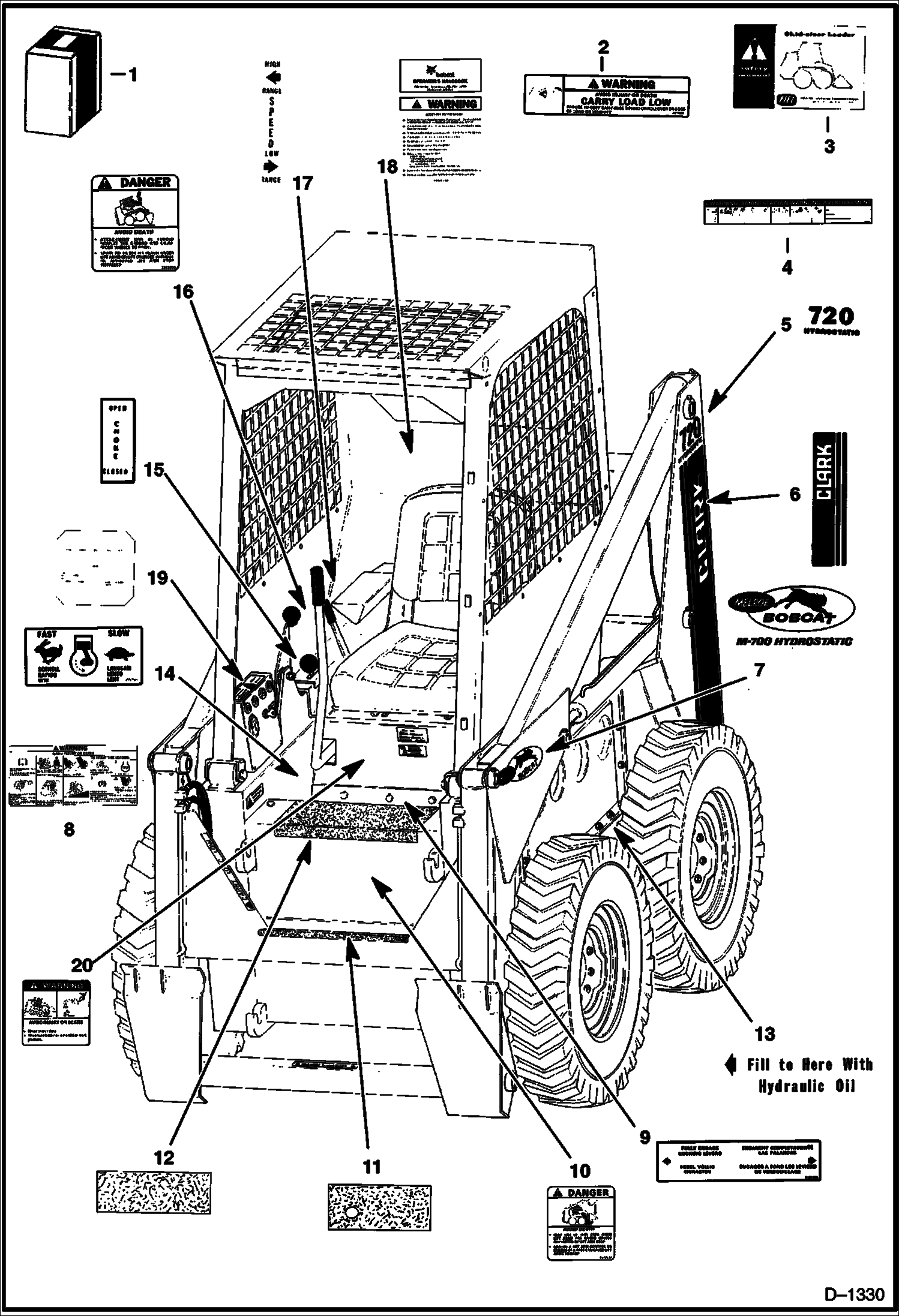

KIT See Illustration DECALS/ D1329 NLA -Decal - Ref. 2-18 & 20 on this page & 2-15 Was 6567918 - A

2

6579528

DECAL, WARNING carry load low - Was 6565254 - A

3

6556500

MANUAL EMI SAFETY - LOADER

4

6568905

DECAL safety - Was 6564844 - A

5

6555224

DECAL model

6

6554974

DECAL stripe - R.H.

6

6554975

DECAL stripe - L.H.

7

6546267

DECAL M-700

8

6702265

DECAL warning - Was 6509185 - A

9

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

10

6579639

DECAL danger - Was 6702302 - A

11

6555778

SAFETY TREAD

12

6502459

SAFETY TREAD 5.5''(139,7 mm) x 16''(406,4 mm)

12

6544270

TREAD 9'' (228,6 mm)x 16''(406,4 mm)

13

6546265

DECAL hydraulic oil

14

6735140

DECAL, THROTTLE Was 6557565 - A

15

6553233

DECAL choke

16

6579509

DECAL danger - Was 6702301 - A

17

6544276

DECAL 2 speed

18

6567623

HANDBOOK handbook

18

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve - Was 6558305 - A

18

6558310

SLEEVE wire rope

18

LOOP NLA - scotch mate - Was 6630380 - A

18

HOOK NLA - scotch mate - Was 6630381 - A

19

6541935

DECAL instrument panel - Not in Kit

20

6710358

DECAL warning
