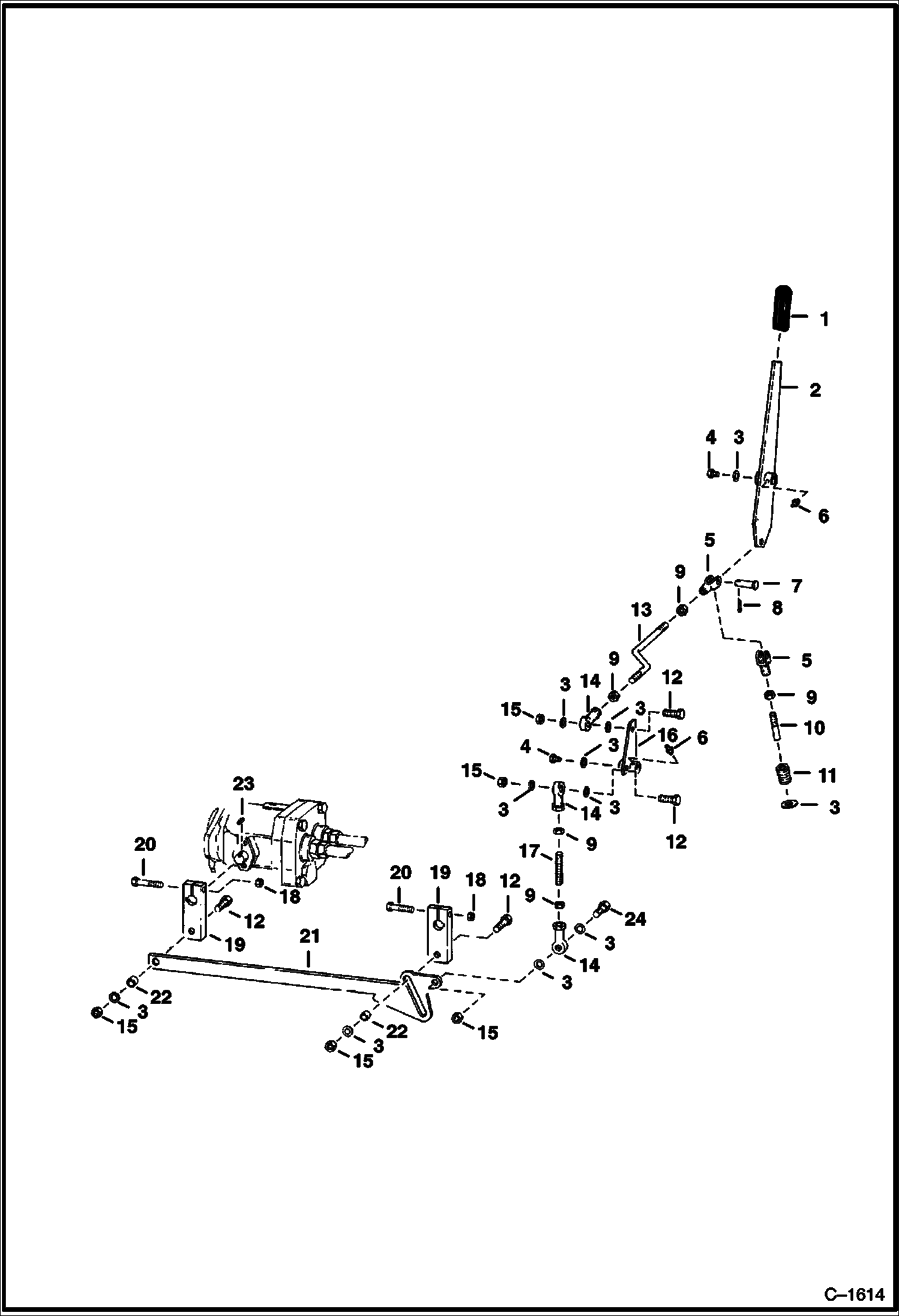

Запчасти Bobcat 700s TWO-SPEED CONTROL HYDROSTATIC SYSTEM

1

6519645

GRIP

2

6544650

LEVER

3

25E16

WSHR

4

17C508

BOLT

5

6508041

YOKE

6

10H35

FITTING, GREASE 10

7

4F6106

PIN Was 221461B - A

8

1F308

PIN, COTTER

9

8D6

NUT 5

10

6544656

ROD

11

6505082

SPRING

12

17C620

BOLT

13

6544657

ROD

14

6512954

ROD END R.H. threads

15

81D6

NUT

16

6542926

PLATE

17

6544655

ROD

18

61D4

NUT 5

19

6542787

ARM

20

17C432

BOLT

21

6544660

CAM

22

6544654

BUSHING

23

6519657

KEY square

24

17C624

BOLT 5
