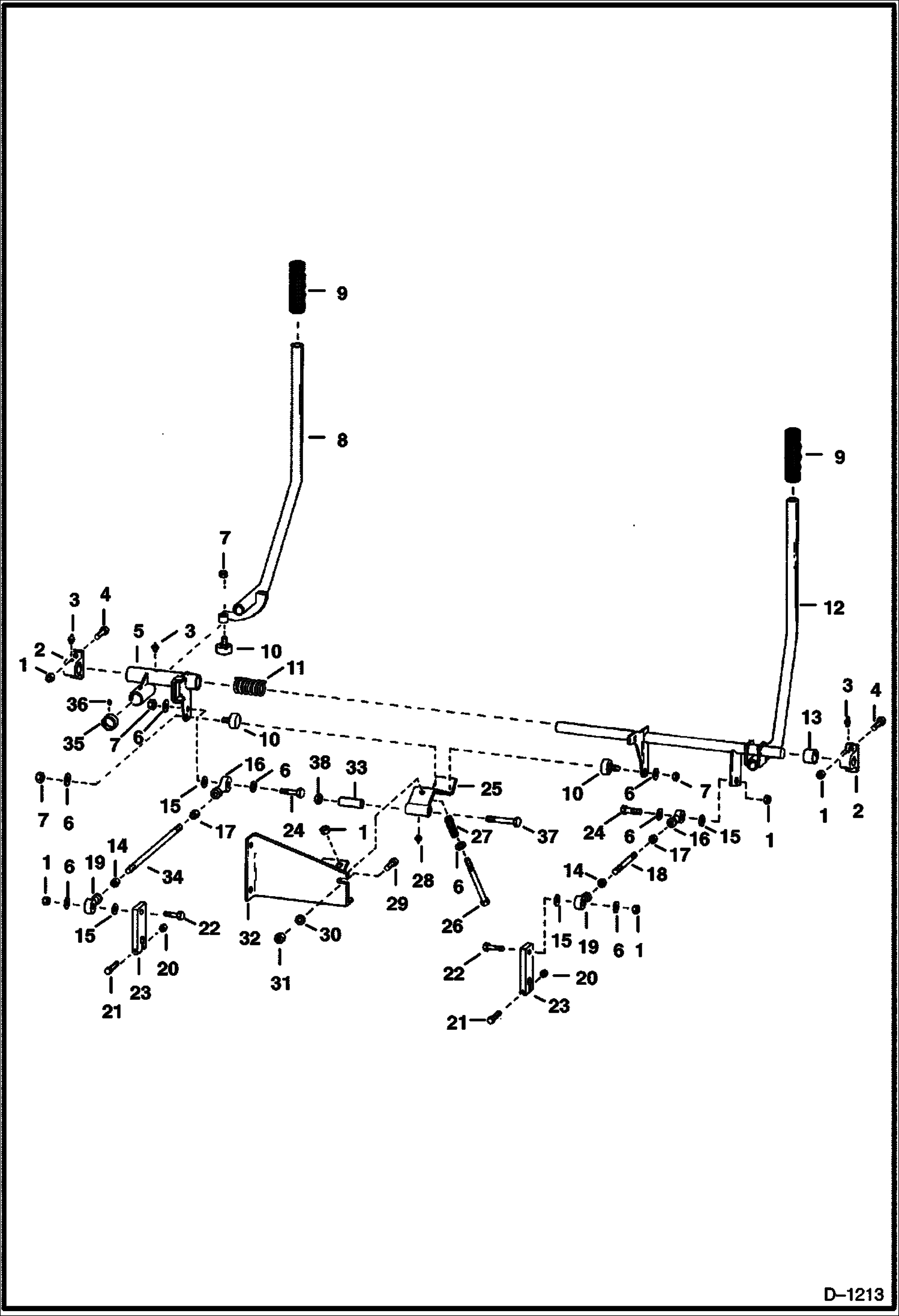

Запчасти Bobcat 700s HAND CONTROLS (Lot B-D, S/N 11001 & Above) HYDROSTATIC SYSTEM

1

81D6

NUT

2

6542977

CLAMP

3

36H35

FITTING

4

17C616

BOLT 5

5

6546860

PIVOT L.H.

6

25E18

WASHER

7

82D6

NUT

8

6542883

LEVER L.H.

9

6513963

GRIP

10

6515595

FOLLOWER cam

11

6544002

SPRING

12

6546865

PIVOT R.H.

13

6544435

BUSHING

14

8D6

NUT 5

15

763403

WASHER

16

6512955

SWIVEL L.H. threads

17

13D6

NUT

18

6550937

ROD

19

6512954

ROD END R.H. threads

20

61D4

NUT 5

20

81D6

NUT

21

17C428

BOLT

21

17C632

BOLT 5

22

17C628

BOLT

23

6542875

ARM

24

17C620

BOLT

25

6546869

ARM

26

17C672

BOLT

27

6505082

SPRING

28

38H25

FITTING

29

17C824

BOLT 5

30

25E22

WASHER

31

61D8

NUT 5

32

6546872

BRACKET

33

PIN NLA - Was 6510465 - A

34

6550936

ROD

35

6541545

COLLAR

36

33G505

SCREW

37

17C552

BOLT

38

91D5

NUT 5
