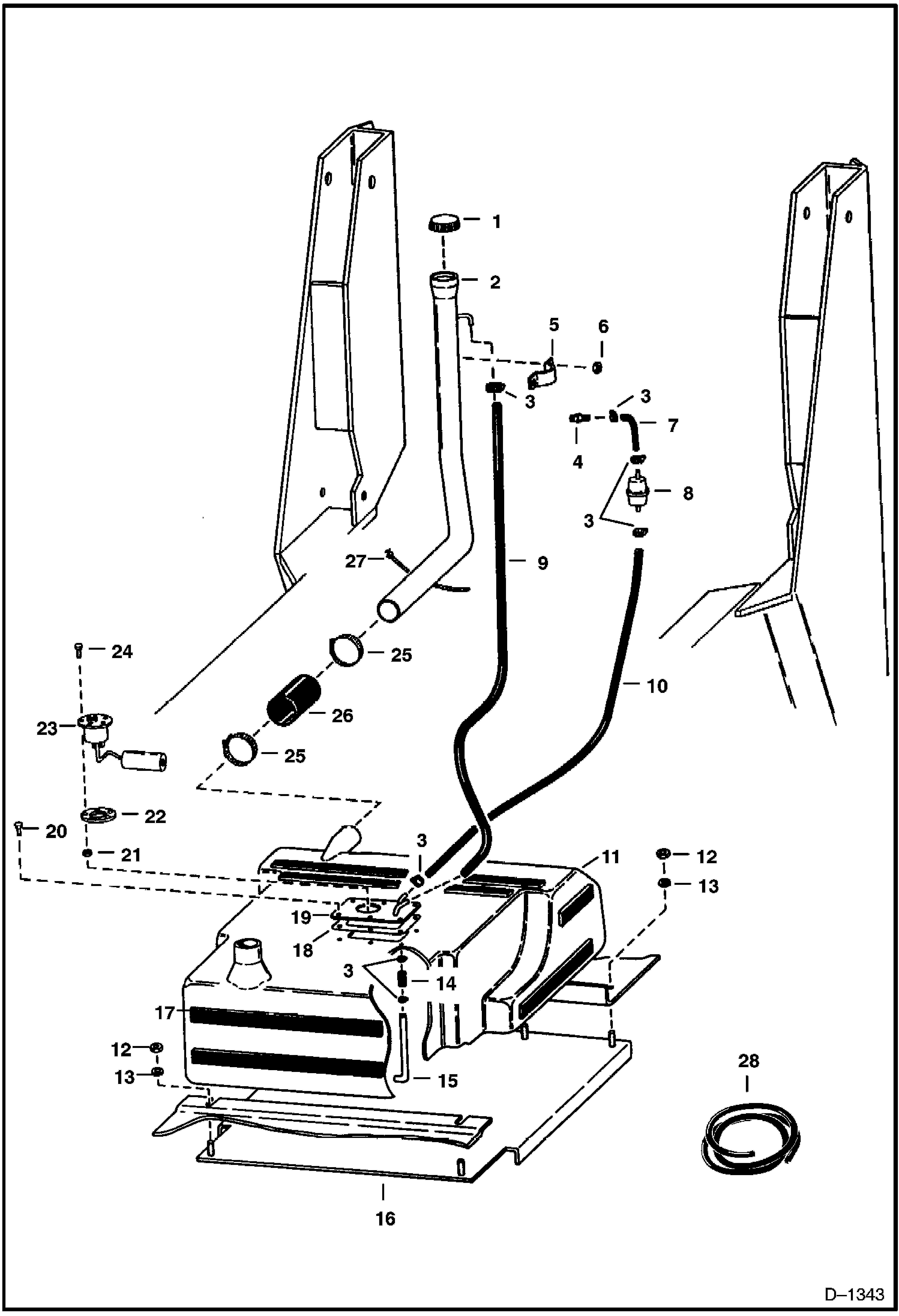

Запчасти Bobcat 700s FUEL SYSTEM (Plastic Tank) (S/N 11001 - 12999) MAIN FRAME

1

6512841

CAP

2

FILLER NLA - Was 6541664 - A

3

42HS04

CLAMP, HOSE Was 6515575 - A

4

6505813

CONNECTOR barbed

5

6514558

CLAMP

6

61D6

NUT 5

7

6542222

HOSE

8

6511393

FILTER

9

6552637

HOSE

10

6552638

HOSE

11

6555986

TANK KIT - includes Ref. 17, Ref. 18, 6515213 rivet (2), 6555718 tank & 6556082 instructions

12

61D8

NUT 5

13

25E21

WASHER 5

14

HOSE NLA - Was 6543387 - A

15

TUBE NLA - Was 6591457 - A

16

6552607

PLATE

17

6554387

STRIP 14 ft. Roll

18

6552605

GASKET

19

6552609

PLATE

20

14G1012

CAPSCREW

21

50D10

LOCKNUT

22

6519201

GASKET

23

5204933

SENDERKIT

24

85G1008

SCREW

25

42H32

HS CLAMP5

26

HOSE NLA - 4.5''(114,3 mm) long - Order Ref. 28 - Was 6540485 - A

27

6503117

TIE tie

28

1309037

HOSE-BULK bulk - Sold Per Foot
