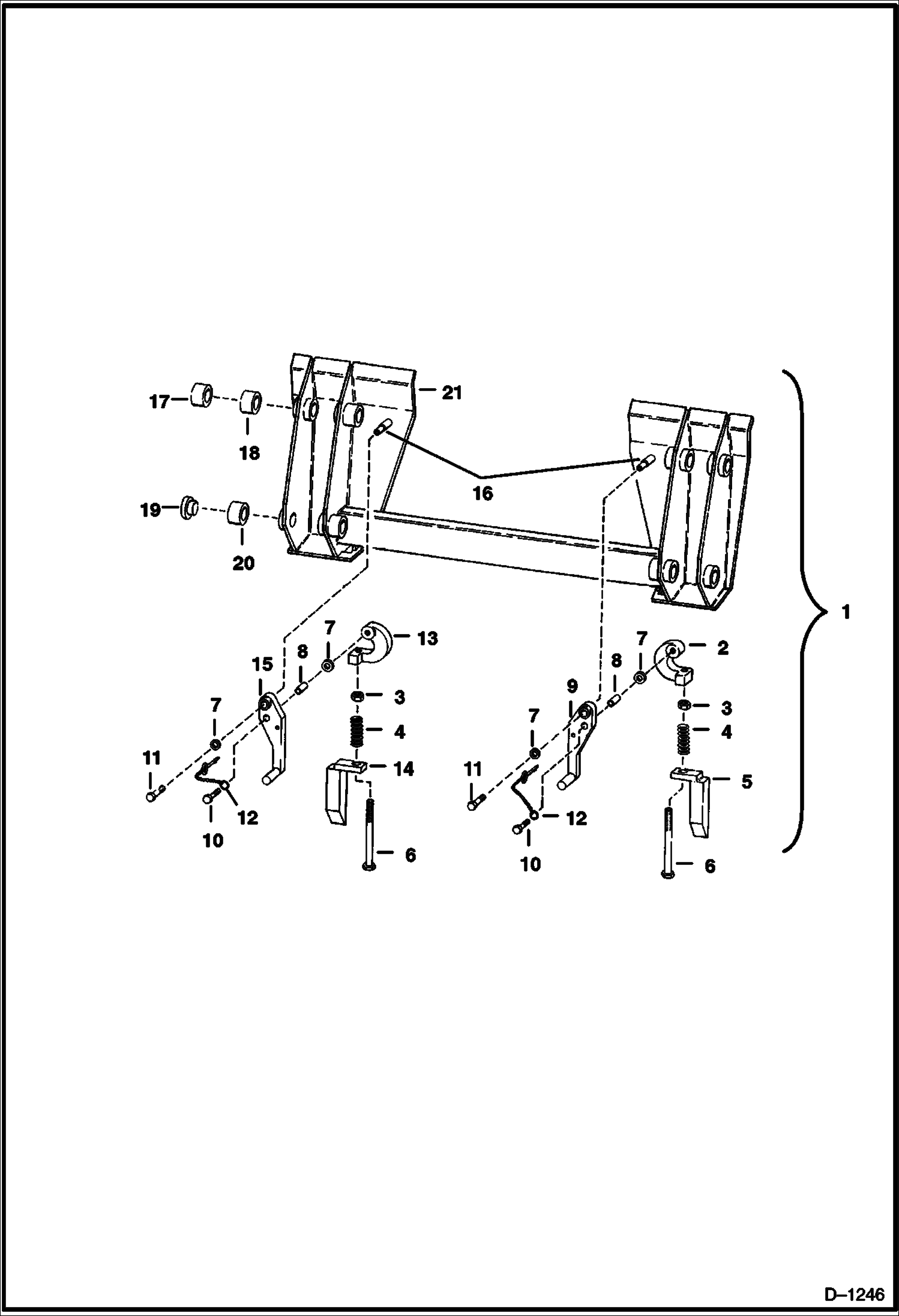

Запчасти Bobcat 700s BOB-TACH (S/N 11001 & Above) MAIN FRAME

1

BOB-TACH ASSY. See Illustration DECALS/ D1330 NLA - Ref. 2-21 - Also Order 6561383 decal - Was 6565721 - A

2

6548581

LINK R.H.

3

7D8

NUT 5

4

6548407

SPRING

5

6548913

WEDGE R.H.

6

17C896

BOLT

7

25E17

WASHER 5

8

6555384

BUSHING

9

6555740

LEVER R.H.

10

17C628

BOLT

11

17C608

BOLT

12

6511880

PIN lock

13

6548541

LINK L.H.

14

6548912

WEDGE L.H.

15

6555738

LEVER L.H.

16

6548605

STUD

17

6547583

BUSHING weld on

18

6547582

BUSHING weld on

19

6547587

BUSHING weld on

20

6547586

BUSHING weld on

21

FRAME NLA - Order Ref. 1
