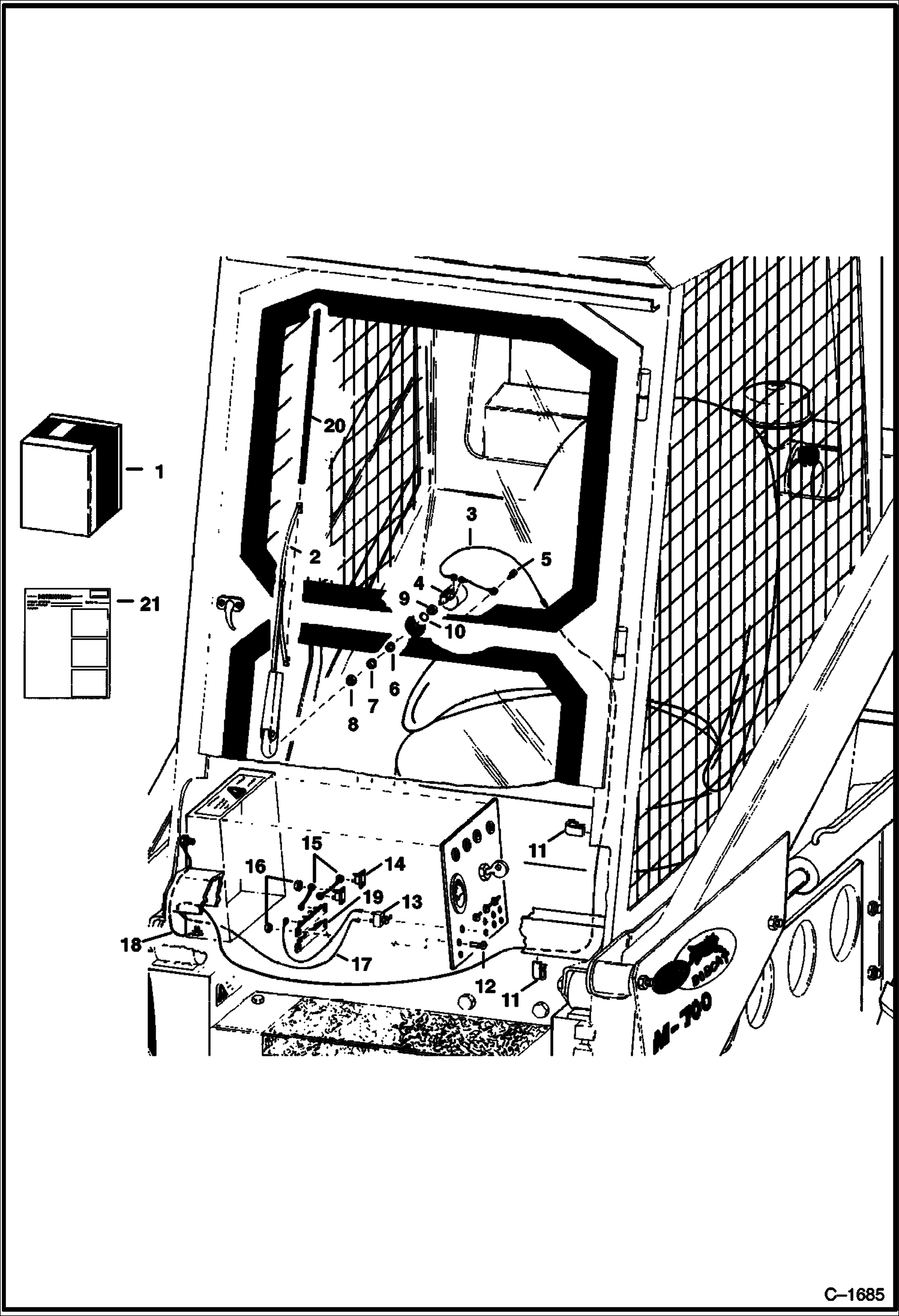

Запчасти Bobcat 700s WINDSHIELD WIPER ACCESSORIES & OPTIONS

1

KIT NLA - windshield wiper - Order Ref. 2-21

2

1744552

ARM

3

WIRE NLA - Purchase Locally

4

MOTOR NLA - W/Ref. 6-11 - Order 6661220 Motor & 6661221 Arm Blade - Was 6653394 - A

4

MOTOR NLA - Was 6661220 - A

5

SCREW NLA - Was 18G000804B - A

6

WASHER NSS - rubber

7

WASHER NSS - cup

8

NUT NSS

9

944533

NUT

10

WASHER NSS

11

CLIP NLA - Was 6502236 - A

12

87G1008

SCREW

13

6515521

SWITCH

14

6519746

BREAKER circuit

15

WIRE NLA - Purchase Locally

16

12D10

NUT

17

WIRE NLA - Purchase Locally

18

WIRE NLA - Purchase Locally

19

6519247

CONNECTOR

20

1550697

BLADE

20

ARM & BLADE NLA - Use W/6661220 Motor - Was 6661221 - A

21

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6545896 - A
