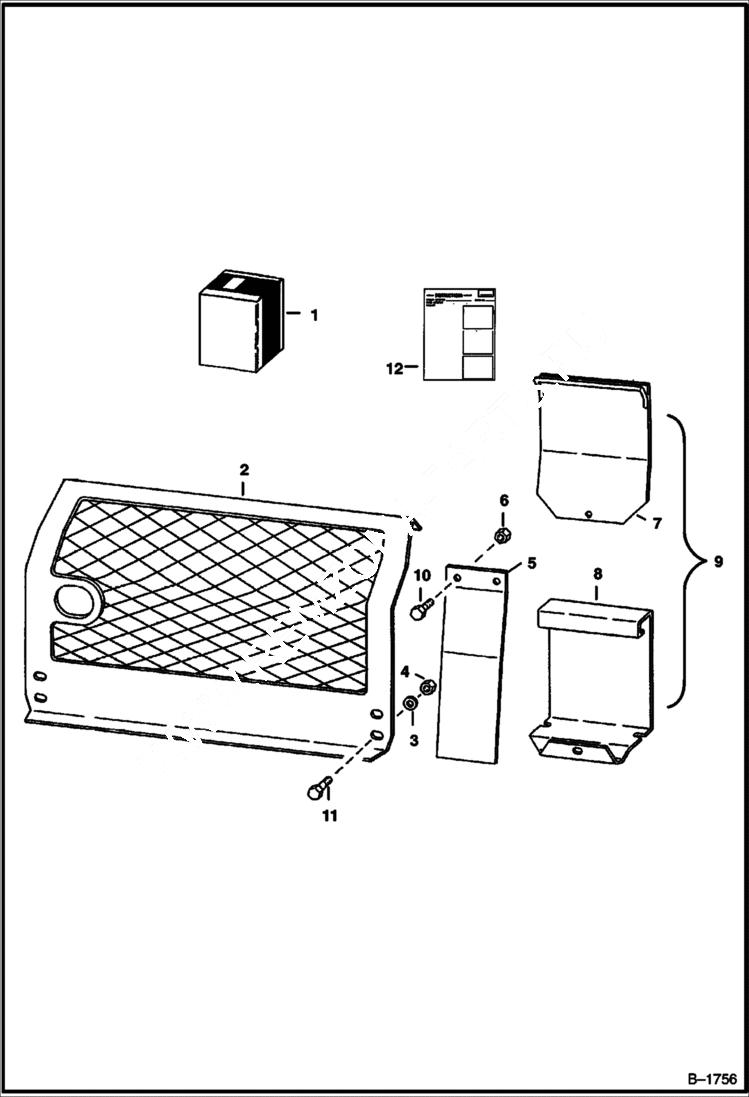

Запчасти Bobcat 700s VANDAL GUARD ACCESSORIES & OPTIONS

1

KIT NLA - vandal guard - Order Ref. 2-6 & 9-12

2

6546375

SCREEN

3

25E16

WSHR

4

61D5

NUT

5

6548507

SHIELD

6

61D4

NUT 5

7

COVER NSS

8

GUARD NSS

9

6546444

COVER ASSY. W/Ref. 7 & 8

10

17C408

BOLT

11

17C516

BOLT

12

6545907

INSTRUCTIONS
