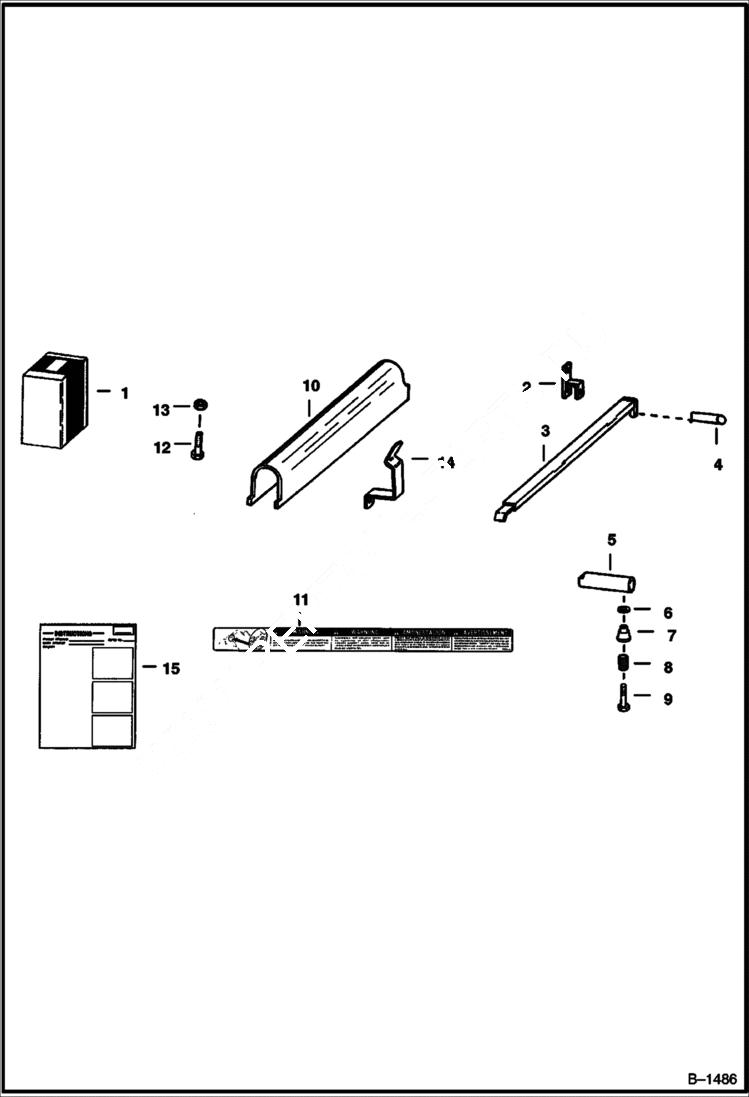

Запчасти Bobcat 700s LIFT ARM STOPS ACCESSORIES & OPTIONS

1

KIT NLA - lift arm stops - Ref. 2-4 - Order 6563336 Kit - Was 6504728 - A

1

KIT NLA - lift arm stops - Ref. 5-9 - Order 6563336 - Was 6541963 - A

1

KIT NLA - Was 6563336 - A

2

6504729

BRACKET

3

LOCK NLA - Order 6563336 Kit

4

6515499

PIN

5

6541372

PIN

6

6541964

SPACER

7

RETAINER NLA - Was 6541515 - A

8

6541514

SPRING

9

17C652

BOLT

10

6559550

STOP W/Ref. 11 - Was 6563449 - A

11

6563423

DECAL

12

17C616

BOLT 5

13

85D6

NUT, 5

14

6563603

BRACKET

15

6566056

INSTRUCTIONS
