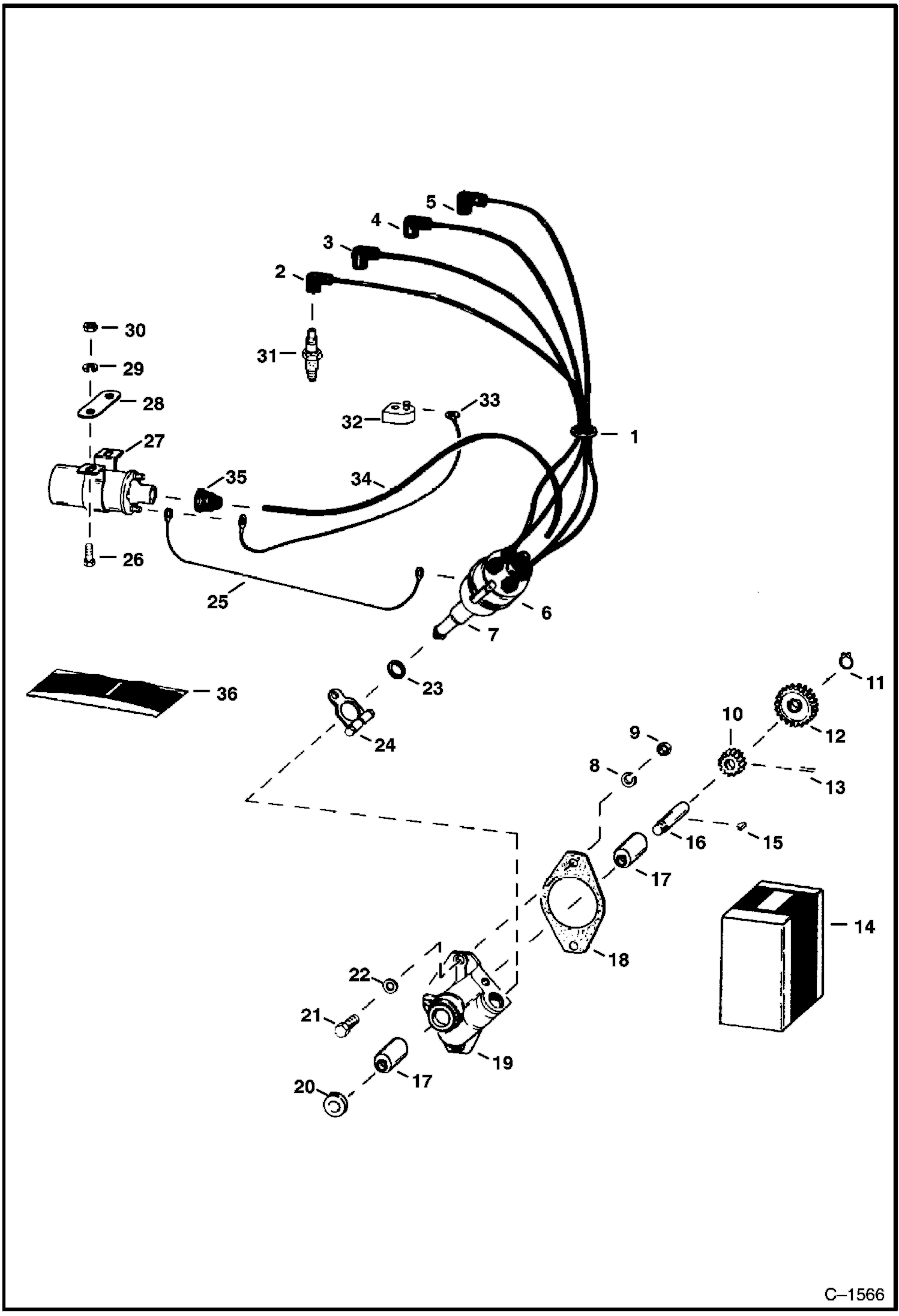

Запчасти Bobcat 700s IGNITION COIL, CABLES & DISTRIBUTOR DRIVE POWER UNIT

1

6516540

GROMMET

2

CABLE NSS - #1 spark plug

3

CABLE NSS - #2 spark plug

4

CABLE NSS - #3 spark plug

5

CABLE NSS - #4 spark plug

6

6516552

CAP

7

DISTRIBUTOR See Illustration DISTRIBUTOR/ B10217 See Illustration DISTRIBUTOR/ B1207

8

4E6

WASHER

9

61D6

NUT 5

10

GEAR ASSEMBLY NLA - W/Ref. 13 - Was 6510107 - A

11

RING NLA - retainer - Was 6510108 - A

12

GEAR NLA - Was 6510105 - A

13

PIN NSS

14

6516557

CABLE W/Ref. 1-5 & 34

15

KEY NLA - woodrfuu - Was 5J403 - A

16

6519755

SHAFT

17

BUSHING NLA - Was 6510106 - A

18

6516574

GASKET

19

HOUSING NLA - drive - W/Ref. 17 & 20 - Was 6510110 - A

20

6510109

PLUG

21

17C632

BOLT 5

22

25E17

WASHER 5

23

6516560

O-RING

24

6516556

ARM

25

WIRE NLA

26

17C512

BOLT 5

27

887408

IGN COIL

28

STRAP NLA

29

4E5

WASHER

30

61D5

NUT

31

890272

SPARK PLUG-4

32

6517513

KIT safety - W/Ref. 33

33

WIRE NSS

34

CABLE NSS

35

6516549

CAP

36

6558833

KIT
