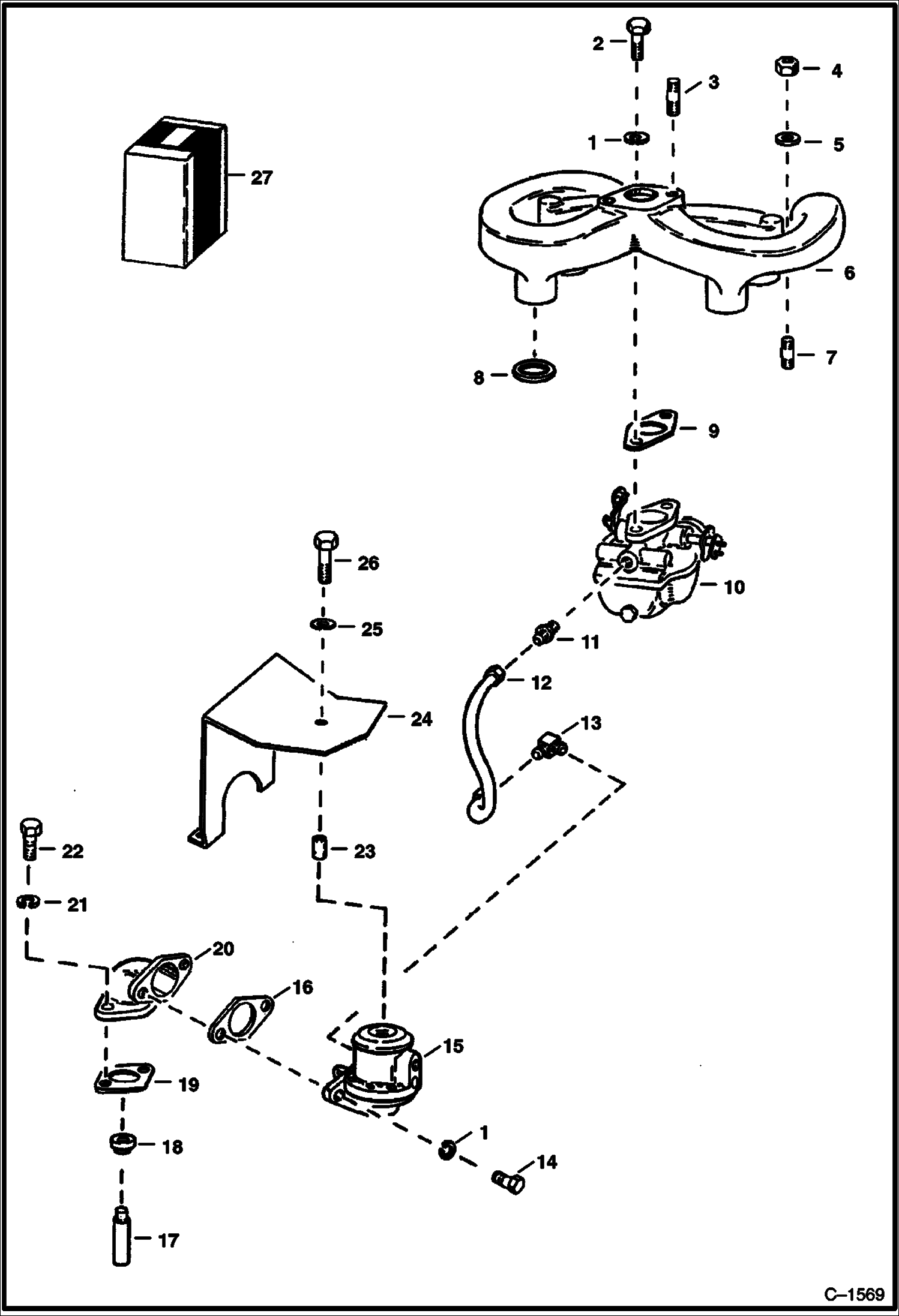

Запчасти Bobcat 700s FUEL PUMP, CARBURETOR & MANIFOLD POWER UNIT

1

4E5

WASHER

2

17C516

BOLT

3

STUD NLA - Was 6510870 - A

4

6515897

NUT

5

4E6

WASHER

6

6519495

MANIFOLD exhaust & intake

7

6516407

STUD

8

6516405

GASKET

9

6516398

GASKET

10

6516590

CARBURETOR See Illustration CARBURETOR/ B1209

11

6515222

ADAPTER

12

6516373

TUBE

13

42F3

FTG

14

17C512

BOLT 5

15

6516374

FUEL PUMP

16

6516381

GASKET

17

6516385

PLUNGER Also Order 6516386 Cap

18

6516386

CAP plunger

19

6516382

GASKET

20

6516380

ADAPTER primer - W/Ref. 17 & 18

21

4E4

WASHER

22

17C412

BOLT 5

23

SPACER NLA

24

6510087

SHIELD

25

WASHER NLA

26

SCREW NLA

27

KIT NSS - fuel pump - Order Ref. 15
