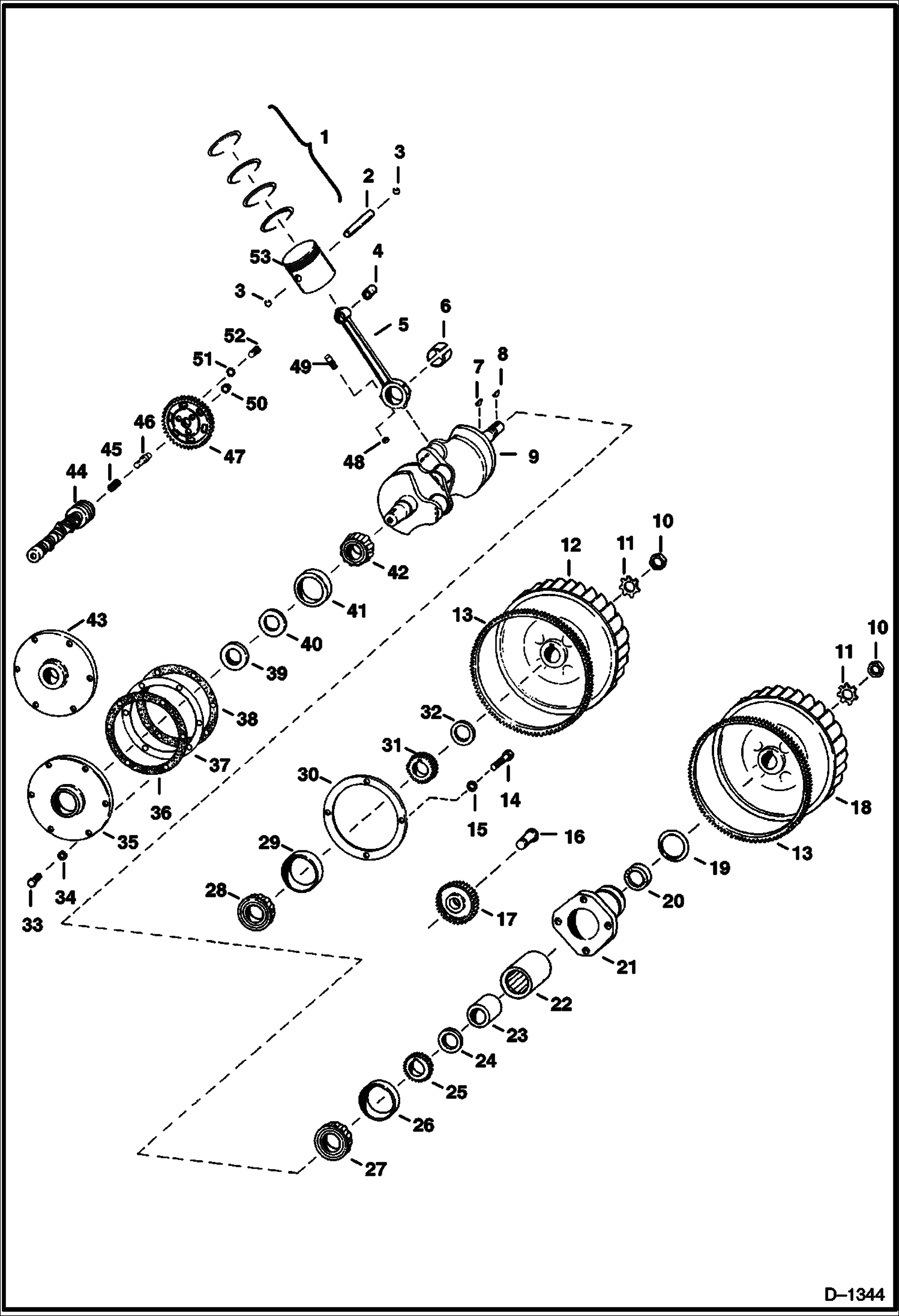

Запчасти Bobcat 700s INTERNAL PARTS POWER UNIT

1

6516464

RINGS 4 Ring (Std.) Complete Engine

1

RINGS NLA - .010 (0,25mm) - 4 ring - complete engine - Was 6516465 - A

1

6516466

RINGS 4 Ring (.020) Complete Engine

1

6516467

RINGS .030 Complete Engine

1

RINGS NLA - Trichrome (Std.) Complete Eng. - Was 6516468 - A

1

6516469

RINGS Trichrome (.010) Complete Eng.

1

6516470

RINGS Trichrome (.020) Complete Eng.

1

RINGS NLA - Trichrome (.030) Complete Eng. - Was 6516471 - A

1

RING SET See BTI183 NLA - 3 Ring (Std.) - Engine S/N 5532689 & Above - Complete Engine - Was 6512149 - A

1

6512150

RINGS See BTI183 3 Ring (.010) Complete Engine

1

6512151

RINGS See BTI183 3 Ring (.020) Complete Engine

1

RINGS See BTI183 NLA - .03'' (0.76mm) - 3 ring - complete set - Was 6512152

1

6630712

SET RINGS See BTI218 4 Ring (Std.) For 2 Pistons

1

6630713

SET RINGS See BTI218 4 Ring (.010) For 2 Pistons

1

6630714

SET RINGS See BTI218 4 Ring (.020) For 2 Pistons

1

6630715

SET RINGS See BTI218 4 Ring (.030) For 2 Pistons

1

RING SET See BTI218 NLA - 4 Ring (.040) For 2 Pistons - Was 6656405 - A

2

6516476

PIN Std.

2

6517474

PIN 0.01

3

6516463

RETAINER

4

6516462

BUSHING

5

6517472

ROD connecting - W/Ref. 4, 48 & 49

6

6517475

BEARING Std. (One Bearing)

6

BEARING NLA - .001 (One Bearing) - Was 6517476 - A

6

BEARING NLA - .002 (One Bearing) -Was 6517477 - A

6

6517478

BEARING .010 (One Bearing)

6

6517479

BEARING .020 (One Bearing)

7

KEY NLA - woodruff - Was 6J506 - A

7

6J404

KEY, WOODRUFF

8

6J1008

KEY woodruff

9

6510277

CRANKSHAFT

9

6512251

CRANKSHAFT

10

6516449

NUT

11

6516448

WASHER

12

6510827

FLYWHEEL W/Ref. 13

13

6516682

RING GEAR

14

7G512

SCREW flat head

15

6E5

WASHER

16

STUD NLA - idler gear - Was 6510869 - A

17

6519850

GEAR

17

IDLER GEAR NLA - Was 6512388 - A

18

FLYWHEEL NLA - W/Ref. 13 - Was 6510871 - A

19

6512384

O-RING

20

6516526

SEAL oil

21

6512336

HOUSING W/Ref. 20 & 22

22

6512382

BEARING

23

6512386

RACE

24

6512385

SPACER

25

6512334

GEAR

26

RACE NSS

27

6512381

BEARING W/Ref. 26

28

6516452

BEARING main - W/Ref. 29

29

RACE NSS

30

6510826

PLATE

31

6516451

GEAR

32

6516450

SLINGER oil

33

17C620

BOLT

34

4E6

WASHER

35

6511300

PLATE

36

6516458

GASKET .003 thk

37

6516457

SHIM .013 thk

38

6516456

GASKET .006 thk

39

6516455

SEAL cork - Use W/Ref. 43

39

6511309

SEAL double lip - Use W/Ref. 35

40

6516454

RETAINER

41

RACE NSS - Order Ref. 42

42

872144

BEARING main - W/Ref. 41

43

PLATE NLA - Order Ref. 35 and 6511309 Seal

44

6516517

CAMSHAFT

45

6516518

SPRING

46

6516519

PLUNGER thrust

47

6516520

GEAR

47

6512387

GEAR

48

86D5

NUT

49

6516461

BOLT

50

6516522

BUTTON

51

6516521

WASHER

52

17C516

BOLT

53

6630708

PISTON - W/Pin Std. - 4 Ring - Ws 6516472 - A

53

6630709

PISTON - W/Pin .010 (0,25mm) - ring - Was 6516473 - A

53

6630710

PISTON - W/Pin .020 (0,51mm) - 4 Ring - Was 6516474 - A

53

PISTON - W/Pin NLA - 4 Ring (.030) - Was 6516475 - A

53

PISTON - W/Pin See BTI183 NLA - 3 Ring (Std.) - Engine S/N 5532689 & Abv. - - Was 6512145 - A

53

6512146

PISTON - W/Pin See BTI183 3 Ring (.010)

53

PISTON - W/Pin See BTI183 NLA - .020 (3 Ring) - Was 6512147

53

PISTON - W/Pin See BTI183 NLA - .030 (3 Ring) - Was 6512148 - A

53

6630708

PISTON - W/Pin See BTI218 4 Ring (Std.)

53

6630709

PISTON - W/Pin See BTI218 4 Ring (.010)

53

6630710

PISTON - W/Pin See BTI218 4 Ring (.020)

53

6630711

PISTON - W/Pin See BTI218 4 Ring (.030)

53

PISTON See BTI218 NLA - 4 Ring (.040) - Was 6656406 - A
